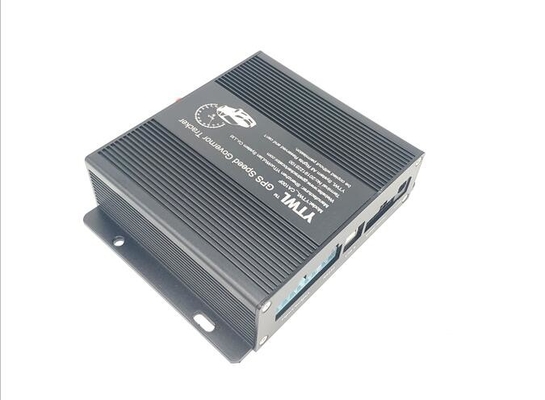

YTWL_CA100F Road Ethiopia Standard Vehicle GPS Speed Limiter ES6413/2019

YTWL_CA100F Road Ethiopia Standard Vehicle GPS Speed Limiter ES6413/2019
YTWL_CA100F Road Ethiopia Standard Vehicle GPS Speed Limiter ES6413/2019 YTWL_CA100F Road Ethiopia Standard Vehicle GPS Speed Limiter ES6413/2019 YTWL_CA100F Road Ethiopia Standard Vehicle GPS Speed Limiter ES6413/2019

Large Image :  YTWL_CA100F Road Ethiopia Standard Vehicle GPS Speed Limiter ES6413/2019 Get Best Price

Product Details:
Place of Origin: China
Brand Name: caxtrack
Certification: CE/ROHS/FCC/SGS
Model Number: YTWL_CA100F
Payment & Shipping Terms:
Minimum Order Quantity: 10 pcs
Price: negotiation
Packaging Details: Packed in carton firstly
Delivery Time: 1-10 working days after received your payment
Payment Terms: T/T or western Union or paypal
Supply Ability: 100,000pcs per month
Contact Now
Detailed Product Description
Application: Buses Trucks Forklifts Speed Limiting Deviation: ±5Km/H
Yellow Line A+: Input（close To The Accelerator Pedal ） Green Line A-: Input（close To The Accelerator Pedal ）
Brown Line B+: Output（close To The ECU） White Line B-: Output（close To The ECU）
Rated Power Consumption: 10W Working Current: <200mA
Speed Limiter: 20-80km/h Functions1: GPS
Functions2: GPRS Warranty Time: 12 Months
Material: Steel
High Light:

vehicle gps tracking device

,

car gps tracker device



YTWL_CA100F Road Ethiopia Standard Vehicle GPS Speed Limiter ES6413/2019



1. Part1: Product Brief:
Vehicle speed limiter CA100F is an intelligent terminal equipment which can realize
precise speed limiting for vehicles. It is not only a speed limiter but also a GPS Tracker.
The product adopts ARM intelligent chip. Speed control precision is very high and the
performance is reliable. It will not affect the big throttle start nor the power torque, stable
and reliable. It only limits the maximum speed and the vehicle will not stall during speed
limiting, and ensure the throttle pedal free movement in the right speed range.
CA100F reserves a wealth of interface and it can work together with a variety of external
equipment with high compatibility and performance.

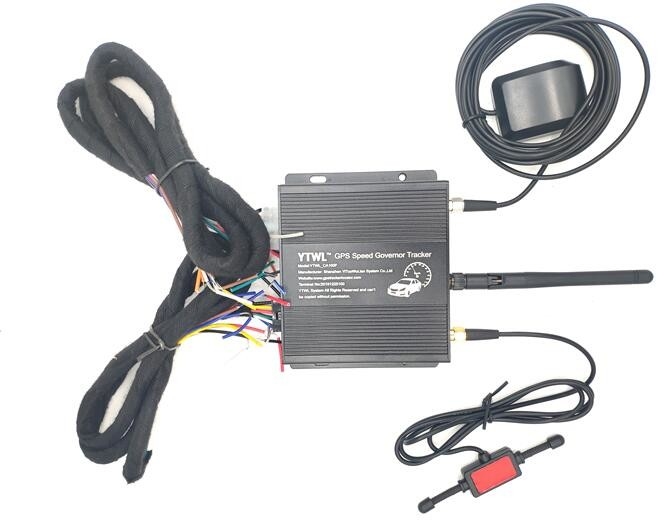

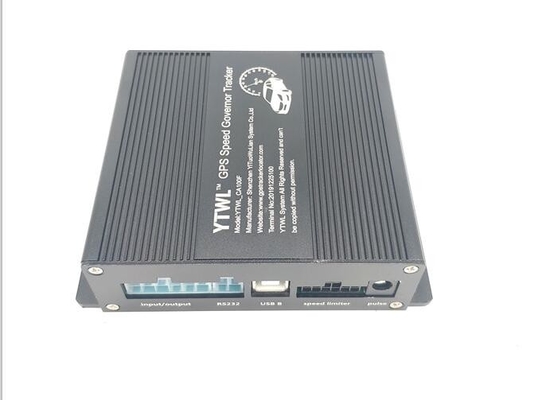

Above is the front view of the GPS speed limiter

2. The power line
2.1 the black head line2.2 the white head line
caution:
6: brown line, 8: Orange line ,is the line of the buzzer,
9: Gray line, pick up the pulse line of the original car, connect the pulse line speed limiter,
the speed limit function will not have too much delay, use GPS signal speed limit, there
will be a delay of about 2 seconds
10: ACC line 11: Power ground
12: Positive power supplyExcept for the 4 wires of 6, 9, 11, and 12, which are necessary wiring, the other wires are
reserved functions and are used for subsequent development of other functions.
3. The install steps:
3.1 Find the vehicle accelerator pedal line harness at first, then find the two signal lines
from the six lines with multi-meter test.
There are six lines in the accelerator pedal interface, two power lines, two ground lines,
and two signal lines. Start the vehicle, step on the accelerator pedal, let the vehicle in idle
state, then the signal line voltage value will change, thus you can find the signal lines.
Please see the picture below
3.2 Cut the two signal lines, and then connect <10brown line+9yellow line> and <4blue
line+3white line> to the signal lines respectively.
Please note that as shown in the figure following, 10brown and 4 blue line are
connected to the part close to the ECU, 9 yellow and 3 white are connected close to
the accelerator pedal.3.3 Find the speed pulse signal line of the car, connect to the 9 gray line of the GPS speed
limiter, connect the speed pulse line, and the speed limit delay time is within 1 second.
3.3.1 How to find the speed pulse line:
With an oscilloscope, a square wave appears when the car is started. The square wave is
wider when it is static. When it is accelerated, the waveform is narrower and changes
according to the speed. The output waveform is about 0.5V-12V.
3.3.2 The main position of the speed pulse line is in the following sections:
A. behind the dashboard
B. Audio host part
C. Gearbox output
D. Driving computer parts
E. ECU electric unit



​YTWL_CA100F Road Ethiopia Standard Vehicle GPS Speed Limiter ES6413/2019





Bluetooth printer:

Printer power light--Blue light if it is steady light indicates Bluetooth connection is normal, if blue light is off, Bluetooth is not connected





SMS command:

1 FACTORY*123456 Setting back to factory default
2 CHANGEPW*123456*138138 New Password:138138
3 SPEED*123456*080 Set Speed OK: 80
4 RESET*123456 Cancel all alarm setting and re-power on
5 INTERVAL*123456*030 Set Interval 30 s OK
6 IP*123456*112.33.44.211,2332 IP SET OK
7 NUMBER*123456*13612345678 NEW ID: 13612345678
8 APN*123456*CMNET APN: CMNET
9 USERNAME*123456*username*userpass USERNAME:username, PASSWORD: userpass
10 TIMEZONE*123456*+08 TIMEZONE: +08



4 Application Field:

  • Vehicle Commanding and Dispatching System;
  • Heavy Construction Vehicles Tracking Device;
  • Dangerous goods transportation;

4.1 Passenger Car Management;

  • Logistics vehicle management.

6) Oil Tanker Monitoring and Management



5. Technical Parameter



Item Parameter
Overall Size 11.8*9.2*3.1 CM
Net Weight 0.24 KG
Communication Module GSM/GPRS
Processing Chip ARM
Speed limit Scope 10-120KM/H
Speed Limit Deviation ±5KM/H
Working Voltage DC 9V—36V





5 Product Accessory:

①　Power wire

②　Executor wire

③　Buzzer (optional part )

④　GPS Antenna

⑤　GSM Antenna

⑥　SIM Card Slot

⑦　Bluetooth printer

⑧　Bluetooth antenna





6. After-sale service:

Warranty statement:

The specification are subject to modification without notice.

If the appearance and color of the product is changed, please take the actual product as the standard.

This warranty card is only applicable to the following listed IMEI/ID machine.

Please keep this warranty card, and please present this card and the original purchase receipts when repair service.

This is the basic certificate of warranty, please fill in this card carefully and keep it well.

User Name   Contact Person
Product Model   IMEI/ID No.:
Purchasing Date   Invoice No.:





YTWL_CA100F Road Ethiopia Standard Vehicle GPS Speed Limiter ES6413/2019 0
