| Product Name: | YTWL_CA100F Speed Limiter | Band: | 850/ 900/1800/1900MHz |
|---|---|---|---|
| Application: | Buses Trucks Forklifts | Alert: | Overspeed Alert |
| Speed Limiting Zone: | 20-200 Km/H | Speed Limiting Deviation: | ±5Km/H |
| Yellow Line A+: | Input（close To The Accelerator Pedal ） | Green Line A-: | Input（close To The Accelerator Pedal ） |
| Brown Line B+: | Output（close To The ECU） | White Line B-: | Output（close To The ECU） |
| High Light: | vehicle gps tracking device,car gps tracker device |
||

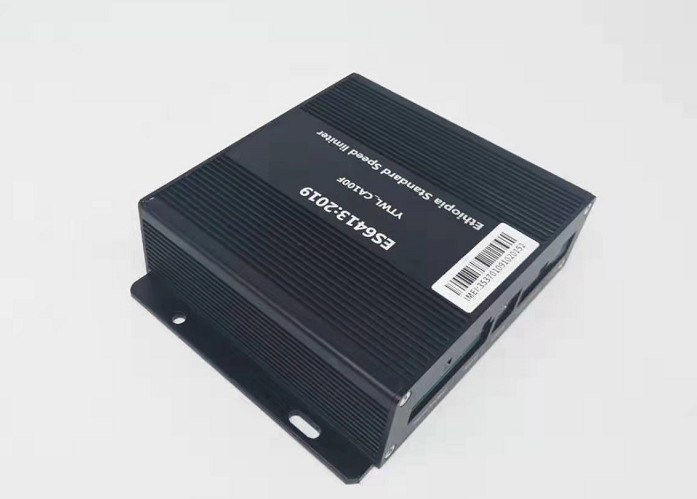

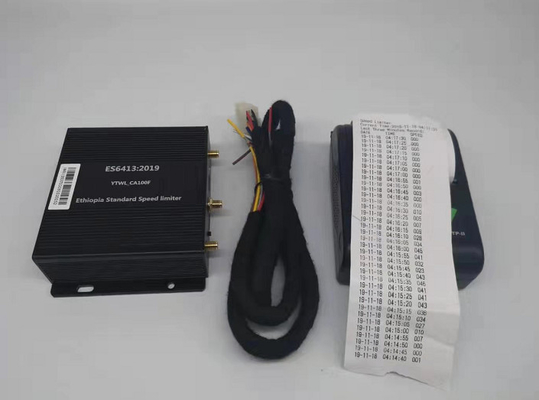

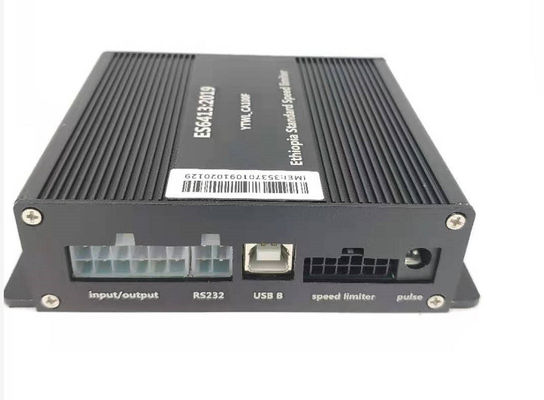

Ethiopian Standard GPS Speed Limiter ES6413:2019 Three In One Speed controller
1. Product Function:
2. Technical Parameters:
| Name | No. | Color | Function | Signal Description |
| Power lines | 1 | Red line | positive pole | DC 9V~36V input |
| 2 | Black line | negative pole | Ground Signal | |
| 3 |
Green line black stripe |
ACC detection | if not need,connect with the positive pole | |
| 4 | Blue line | Left turn signal detection | Can detect 9V~36V voltage | |
| 5 | Orange line | Right turn signal detection | Can detect 9V~36V voltage | |
| 6 | Gray line | speed sensor detection |
Original vehicle speed meter signal line
|
3 The Mechanical Actuator
For the Electronic throttle ( EFI ) vehicles , no need add mechanical actuator, the limiter will simulate the voltage value of the vehicle throttle sensor, when the vehicle is over speed, The limiter will give ECU a idle voltage value, ECU will control the throttle according to this voltage value. When the vehicle is in normal driving state(not over speed), the speed limiter will not interfere the vehicle speed. The throttle sensor will give ECU normal driving voltage, let the vehicle keeping normal driving.
Ethiopian Standard GPS Speed Limiter ES6413:2019 Three In One Speed controller
4 At first, we adjust the voltage value of the brown wire to the low value we measured form the accelerator pedal signal wire. ( The value of the actual measured voltage prevail. ) Then we adjust the voltage value of the white wire to the high value we get form the accelerator pedal signal wire. ( The value of the actual measured voltage prevail. )
Then , we can dot a little red glue onto the adjustable knobs to fix it, in order to prevent the adjustable knobs may appear small rotation in the long vehicle driving.
① Then , we connect the yellow, brown, green ,white wires to the original signal wire of the vehicle.
At first, we cut off the low voltage accelerator pedal signal wire. Connect the wire end which is close to the accelerator pedal to the yellow wire of the speed limiter . Connect the rest wire end to the brown wire of the speed limiter. Now it is turn to the other high voltage accelerator pedal signal wire, we also cut it off, Connect the wire end which is close to the accelerator pedal to the green wire of the speed limiter. Connect the rest wire end to the white wire of the speed limiter.
② We place the speed limiter into the steering room.
③ Find the ACC wire of the vehicle ( it is in the key head, power on when open the key , power off without the key. ) We connect the ACC wire ( green line with black strips ) of the limiter host to the vehicle ACC wire.
④ Find the signal wire of Left-turn indicator and right-turn indicator. Connect the blue wire of the limiter to the signal wire of Left-turn indicator. Connect the orange wire of the limiter to the signal wire of right-turn indicator.
5 Connection Diagram for Mechanical throttle
Ethiopian Standard GPS Speed Limiter ES6413:2019 Three In One Speed controller
The Specific install Steps:
① Place the limiter host.
The limiter host can be installed in steering room ,a place will not not affect the driver operating. Please pay attention to fix it well, make the lines routing as hidden as possible.
② Install the limiter actuator and connect its drawing cable to vehicle throttle cable.
At first, we connect the actuator power line well, turn on the power, the actuator will spit its steel cable automatically , turn off the power until the cable completely spit out.
Then please step the accelerator pedal to the end state. Make the pull head of the actuator cable pass through the engine throttle control lever. Then cut off the excess portion, fixed the cable head well, make the drawing direction of the limiter steel cable and vehicle throttle cable negative, then fix the limiter well, there is a mounting bracket on the limiter body. Please install it in a appropriate position onto the vehicle with screws.
1. We provide web tracking system, Android APP and IOS App free
2. Our device can send data to your own server, we will provide SDK and API for integrate (sample source code:C/C++,Java,C#)
3. we will install the tracking system into your server if you have the own server
4. We provide OEM and ODM services, it is free if you only add logo and company name
5. Warranty: 24-month
Ethiopian Standard GPS Speed Limiter ES6413:2019 Three In One Speed controller
6 Application Field:
