| Product Name: | CA100F Speed Limiter | Application: | Buses Trucks Forklifts |
|---|---|---|---|
| Work Voltage: | DC12V-DC36V | Alert: | Overspeed Alert |
| LED Indicator: | 4G(blue), GPS(green), Power(red) | Product Accessory: | ① Power Wire |
| Product Accessory:: | ③ Extension Wire | Color: | Black |
| Package: | Hard Paper Box | ||
| High Light: | vehicle gps tracking device,car gps tracker device |
||

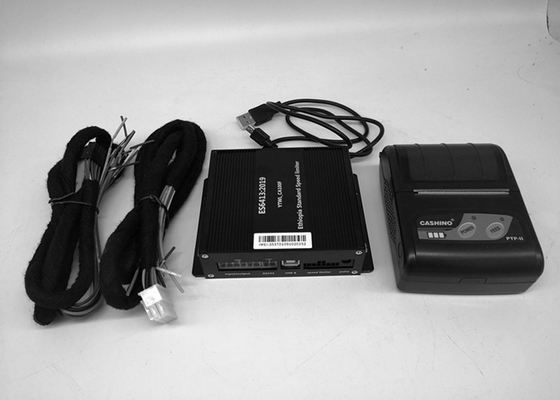

Update Ethiopia Standard Speed Limiter For Cars and Trucks With The GPS Function
Speed limiters on late model vehicles work via the computer software instructions that are integrated within the various engine management functions .The system relies on data recieved from sensors that supply the "road speed" information to the primary computer -thereby signaling the requirement to restrict"specific" engine management performance,These control processes are usually "spark" restriction or fuel restriction,or a combination of both.
5.1.1. The system shall function normally when connected to a power supply in the range (6/12/24V)OC.
5.1.2. The power of speed limiter device shall full fill the requirement specified in table 1
Table 1.Power requirement
| s.no | Description | requirement | |
| 1 | input voltage | 6-24v | |
| 2 | working voltage | 6-36v | |
| 3 | back up battery hour | minimum 4 hour | |
| 4 | rated power dissipation | up to 2W |
5.2.1. The recorder shall incorporate a combination of an onboard and off-board mechanism for recording and storing the speed of the vehicle.
5.2.2. The speed shall be recorded in Km/h at not more than five seconds interval.
5.2.3. The retrieved data shall clearly and in an unambiguous manner display the date
(dd Imm Iyyyy) of recording.
5.2.4. Each entry shall be time related (either 24 hour or 12 hour format).
5.2.5. Each entry shall capture global position coordinates.
5.2.6. The recorded data shall be in the same format for both the onboard and off board storage Systems
5.2.7. The minimum information of the data to be recorded and transmitted shall include the following:
a.Real-time online tracking on Fleet Management System (FMS) platform via GPRS and via Google Map link
b. Update position online by time interval and distance
c. History data recording including: Speed, License No., Odometer, Date & Time, Driver identification, physical address, telephone
d. Alarm for external power cut, low battery alarm, overspeed alarm, geo-fence alarm and out of operation time interval alarm
e. Speed limiter device report: Distance travelled, Last Position, Satellite photo, trip report, status report, tamper report, driving or operation time interval report
5.2.8. Memory capacity of the speed limiter device shall have a minimum capacity of saving 5,000 blind data.

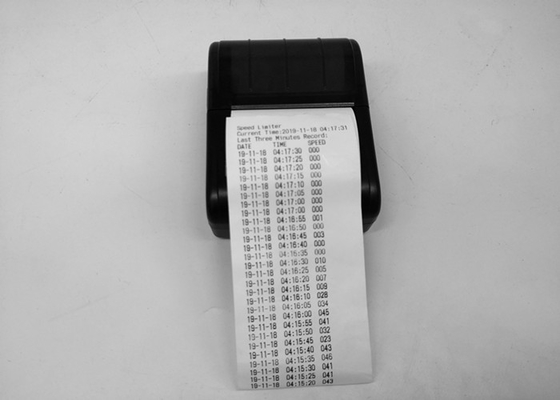

5.2.9. The speed limiting system shall incorporate a mechanism for recording the speed of the vehicle of the last 24 hours, which speed shall be date (day, month and year) and time related.
5.2.10. Speed limiter device shall provide at minimum date (day, month and year) and time related, location and speed information
5.2.11. The speed limiting system shall store the data in a non erasable memory for at least 72 hours even if the power supply is disconnected.

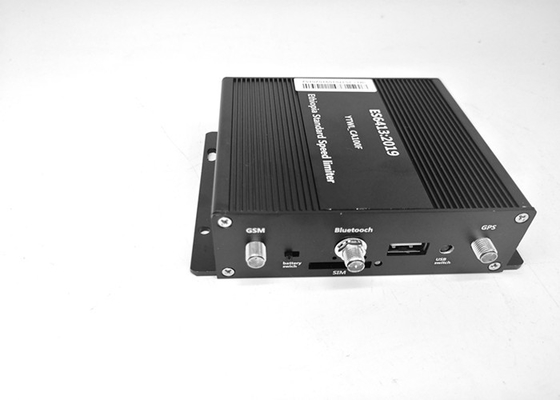

Ethiopia Standard Road Vehicle GPS Speed Limiter For Trucks klifts And All Cars
5.3.1. GPRS Of speed limiter shall have a minimum of Multi-slot Class 8 (4Rx, 1Tx, 5 slot Max.)
5.3.2. GPRS Of speed limiter shall Support at minimum four coding schemes (CS-1, CS 2, CS-3 and CS-4) download speed at least speed 85.6kbps upload speed is at least 21.4kbps
5.4. Positioning Accuracy of GPS shall be Less than 5 meters at 20 RMS
5.4.1. GSM Frequency of the speed limiter GPS shall be based on national telecommunication requirement.
1. Product Brief:

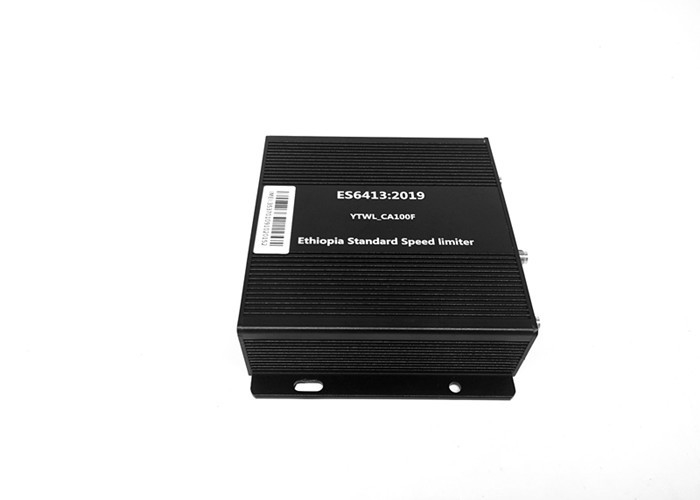

The vehicle speed limiter CA100F is a vehicle terminal device can make accurate and intelligent vehicle speed Limiting. It can judge the vehicle speed by vehicle pulse speed data and GPS speed data precisely, and control the vehicle speed by intervening the throttle valve opening size.The user can set the speed limit value through the external digital display controller .
The product adopts intelligent STC chip, with high control precision, stable and reliable, will not affect the starting throttle, not affect the dynamic torque, only limit the maximum speed of the vehicle, control the throttle valve but will not lead to stalling, can ensure the throttle pedal can move freely in the allowable speed zone. It is a powerful and efficient intelligent vehicle safety products.
2. Product Function:
Kenya Speed Limiter With GPS GPRS Functions For Trucks Forklifts
Ethiopia Standard Road Vehicle GPS Speed Limiter For Trucks klifts And All Cars
3. Technical Parameters:
Kenya Speed Limiter With GPS GPRS Functions For Trucks Forklifts
| Item | Parameters |
| Overall Size | 20.0 X 9.2 X 4.5 CM |
| Host Net Weight | 0.4 KG |
| Processing chip | STC |
| Speed Limiting Zone | 20-200 Km/H |
| Speed Limiting Deviation | ±5Km/H |
| Mechanical Bearing Capacity | 400N |
| Working Voltage | 9-36 V |
| Rated Power Consumption | <0.3 W |
| Working Current | <60 mA |
4 The Mechanical Actuator
7 Application Field:
