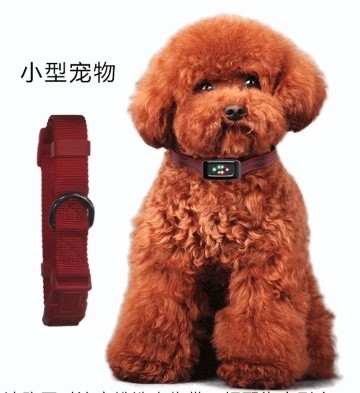

Geo Fence Long Standby Time Mini Dog GPS Tracker With GPS And LBS Functions

Certification
Good quality Motorcycle GPS Tracker for sales
Good quality Motorcycle GPS Tracker for sales
We are very satisfied with your CA-V1 and CA-V1, CA-V6W for professional customers, CA-V6W is a very good product on the motorcycle,thanks!

—— Touya_ra

now we already used your company CA-V6 more than 2000Pcs, thanks for your company best support, we will expend this business in all of the Kenya

—— Nancy Saruni

your device CA-V1 is very good for our customer project, it is so proffesional , we can use in refrigerator car which can test the temperature ,thanks

—— Rajesmay

I'm Online Chat Now

Geo Fence Long Standby Time Mini Dog GPS Tracker With GPS And LBS Functions

China Geo Fence Long Standby Time Mini Dog GPS Tracker With GPS And LBS Functions supplier
Geo Fence Long Standby Time Mini Dog GPS Tracker With GPS And LBS Functions supplier Geo Fence Long Standby Time Mini Dog GPS Tracker With GPS And LBS Functions supplier

Large Image :  Geo Fence Long Standby Time Mini Dog GPS Tracker With GPS And LBS Functions

Product Details:

Place of Origin: China
Brand Name: Caxtracker
Certification: CE
Model Number: Pet GPS

Payment & Shipping Terms:

Minimum Order Quantity: 10pcs
Price: negotiation
Packaging Details: Packed in carton firstly
Delivery Time: 1-10 working days after received your payment
Payment Terms: T/T or western Union or paypal
Supply Ability: 10,000pcs per month
Contact Now
Detailed Product Description
Name: Pet GPS Locator GSM Chip: DC3.7V-4.2V
GPS Chip: UBLOX7020 Dimension: 95*63*23mm
Net Weight: 200g Work Current: 50mAh
Frequency: 850/900/1800/1900MHz Color: Black Or White
Function: GPS And LBS Antenna: Build-in

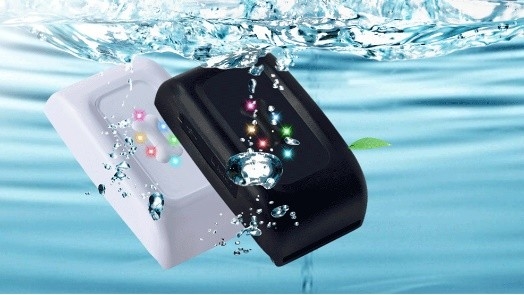

Mini Pet GPS Locator With GPS And LBS Functions And Long Standby Time







Features:



1. Real time location:

    Via SMS mobile app Wechat and computer web to achieve a variety of functions.



2. Geo Fence

    Can set a safety range based on the GPS location,When out of the range,the mobile,app and web will receive the alarm.



3. Accurate positioning

    Position error<=5meter.



4. Smart LED Shining

    Smart LED Shining in night, Can set by APP



5. HD Street view

    Can see the street view around the position via app and platform.





Operating Instructions:

1. Please Check whether the device model is correct, accessories are complete before using.



2. Please check the SIM CARD is correct or not before inserted, the device only supports the GSM CHIP

(compatible with 2G network SIM CARD) and the card should be have flow data credits and can make call.



3. Power on: Insert the SIM Card to the device,the green LED quickly flashes 3 times, then device on. The

Red LED keeps on for 5s and then off means the device read the GSM Card and then work normally.



4. Power off. Take out the SIM card of the device, then device off.



5. Charge: connect USB charging line to charge power , green LED keeps on when fully charged.



Install the SIM CARD

1. To install the SIM CARD as picture show:

Geo Fence Long Standby Time Mini Dog GPS Tracker With GPS And LBS Functions









































Parameters:



Items Parameters
work voltage 3.7V-4.2V
GSM chip MTK6261
GPS chip Ublox7020
work current

5VDCtandard mode 50mAh 5VDC

power saving mode 15mAh 5VDC

Dimension 95*63*23mm
Net weight 200g
frequency Quad-band :850/900/1800/1900MHz
GPS Performance Index Receive Channels: 12 parallel channel,Position Accuracy : ≤5m m(95%)
GSM Performance Index

Position Accuracy: 50m(60%)

150m (95%)

It will depend on the local base station number and density

Output Interface Charge/Digital Port
Antennas

GPS Antenna: build-in

GSM Antenna: build-in

Work temperature -30℃~+85℃
Work Humidity 5%~95%
Storage Temperature -40℃~+85℃









































































Main Admin Number Binding

Main admin binding number: mainly used to receive Geo Fence alarm and low battery alarm information.



Send SMS: SOS,Main admin number     TO  device sim card No.

SOS KEY: SOS1,138........            Reply: SOS1,OK

SOS KEY: SOS2,138........            Reply: SOS2,OK

SOS KEY: SOS3,138........            Reply: SOS3,OK





Note: Main admin number can bind 3 numbers, If you want to replace the number you bound, just need to bind a new noe to replace it.



Main Admin Number Binding cancellation

Send SMS: DEL SOS,1 TO Device SIM Card No.   Reply: DEL  OK

Send SMS: DEL SOS,2 TO Device SIM Card No.   Reply: DEL  OK

Send SMS: DEL SOS,3 TO Device SIM Card No.   Reply: DEL  OK



Forced wake up the GPS Positioning

Send SMS: MD,1



Note: The device reacquire GPS positioning in the stationary states.
