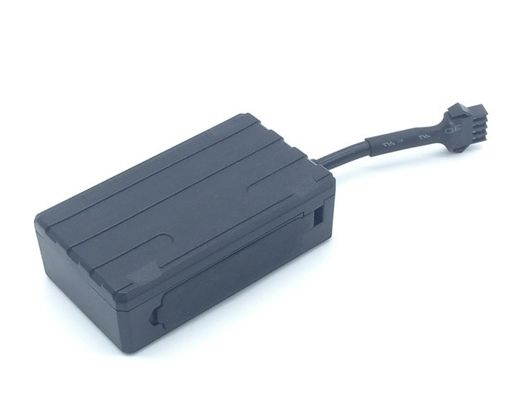

Mini IP65 gps motorcycle tracker For Motorbike , Portable GSM GPS Tracker Anti - Theft

China Mini IP65 gps motorcycle tracker For Motorbike , Portable GSM GPS Tracker Anti - Theft supplier
Mini IP65 gps motorcycle tracker For Motorbike , Portable GSM GPS Tracker Anti - Theft supplier Mini IP65 gps motorcycle tracker For Motorbike , Portable GSM GPS Tracker Anti - Theft supplier

Large Image :  Mini IP65 gps motorcycle tracker For Motorbike , Portable GSM GPS Tracker Anti - Theft

Product Details:

Place of Origin: China
Brand Name: caxtrack
Certification: CE/ROHS/FCC/SGS
Model Number: CA-V6W

Payment & Shipping Terms:

Minimum Order Quantity: 10pcs
Price: negotiation
Packaging Details: Packed in carton firstly
Delivery Time: 1-10 working days after received your payment
Payment Terms: T/T or western Union or paypal
Supply Ability: 10,000pcs per month
Contact Now
Detailed Product Description
Name: Waterproof GPS Tracker Application: Motorbike Car Truck
Work Voltage: DC 9-75V Dim: 70*40*20mm
Standby Work Current: < 30mA Waterproof: IP65
Function: Motorbike Anti - Theft GSM CHIP: MTK6261
Network: GPRS GPS GSM Function2: Control The Engine On Or Off



Mini IP65 gps motorcycle tracker For Motorbike , Portable GSM GPS Tracker Anti - Theft




Performance Parameters:



Content

Specs.

Dim. 70*40*20mm

Weight

0.2kg

Network

GSM/GPRS/GPS

Band

900/1800/1900MHz or 850/900/1800/1900MHz

GPS chip

Ublox-7

GPS sensitivity

-159dBm

GPS accuracy

5 m

Time To First Fix

Reacquisition  0.1s

 Cold status  45s

Warm status  35s

 Hot status  1s

Work Voltage

DC 9-75V

Battery

Chargeable changeable 3.7V /200Mah Li-ion battery

Standby work current

< 30mA

Storage Temp.

-40°C to +85°C

Operation Temp.

-20°C to +70°C

Humidity

5%--95% non-condensing




Main Functions:




1. GSM four frequency(GSM850/900/1800/1900MHZ) system global general

2. Built-in switching power supply, exceed wide voltage input range: 9-75 VDC

3. GPS continuous GPS positioning, GPRS report regularly

4. Support SMS message to check the location info

5. Built-in vibration sensor, realization vehicle anti-theft intelligently

6. ACC the ignition signal detection,vehicle status prompted

7. Waterproof designed

8. Built-in backup battery, realize the illegal cut the line alarm



Detail Pictures:

Mini IP65 gps motorcycle tracker For Motorbike , Portable GSM GPS Tracker Anti - Theft



Mini IP65 gps motorcycle tracker For Motorbike , Portable GSM GPS Tracker Anti - Theft



Mini IP65 gps motorcycle tracker For Motorbike , Portable GSM GPS Tracker Anti - Theft

Installation:

Install the tracker is hidden installation, you'd better to install it with the help of professional companies or workers authorized by the distributor. Please install it according to the following instruction.



1. To avoid the thief’s destruction, the tracker should be installed in a hidden place.

2. Don't put the tracker together with the emission sources, such as the parking radar system, alarms and     other vehicle-carried communication terminals.

3. You can fix the tracker with the cable tie, or glue it with wide strong sponge double-sided tapes

4.  Because the tracker has GSM and GPS antenna inside, please make sure the reception side of GPS is      upward (facing the sky), and there is no metal shelter above the tracker. Suggestions are as follow:



     a. Hidden area under the decoration board below the front windshield or back windshield

     b. Hidden area around the front panel (with a surface made of non-metal materials)



Applications:

Motorcycle factory , E-bike factroy, EV; Electric Vehicle; LEV company,  GPS producer , large-scale shopping malls , exclusive agency , chain shops , large-scale sales


Gurantee:

1. All of our product is free to use the Tracking service server in 24 hours each day
2. All of our product there is a 2 year quanlity assurance.
3. Sample fee will not  be returned.


Product Configuration:

1. Standard configuration

1)    main device             1 pcs
2)    Installation cables    1 set
3)    Usage instructions
4)    Warranty card
5)    Certification
