Free Installation Magnetic auto gps tracking device Large Rechargeable Battery Inside

Certification
Good quality Motorcycle GPS Tracker for sales
Good quality Motorcycle GPS Tracker for sales
We are very satisfied with your CA-V1 and CA-V1, CA-V6W for professional customers, CA-V6W is a very good product on the motorcycle,thanks!

—— Touya_ra

now we already used your company CA-V6 more than 2000Pcs, thanks for your company best support, we will expend this business in all of the Kenya

—— Nancy Saruni

your device CA-V1 is very good for our customer project, it is so proffesional , we can use in refrigerator car which can test the temperature ,thanks

—— Rajesmay

I'm Online Chat Now

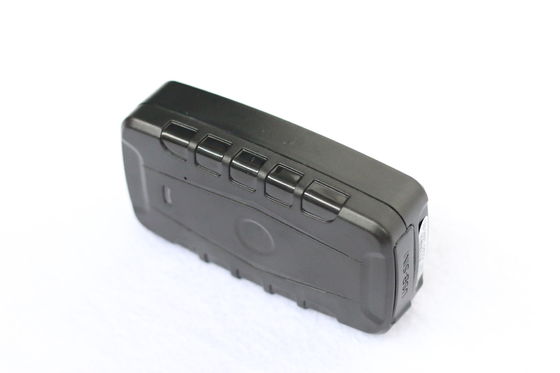

Free Installation Magnetic auto gps tracking device Large Rechargeable Battery Inside

China Free Installation Magnetic auto gps tracking device Large Rechargeable Battery Inside supplier
Free Installation Magnetic auto gps tracking device Large Rechargeable Battery Inside supplier Free Installation Magnetic auto gps tracking device Large Rechargeable Battery Inside supplier

Large Image :  Free Installation Magnetic auto gps tracking device Large Rechargeable Battery Inside

Product Details:

Place of Origin: China
Brand Name: CARTRACKER
Certification: CE/ROHS/FCC/SGS
Model Number: CA-P5A

Payment & Shipping Terms:

Minimum Order Quantity: 10pcs
Price: negotiation
Packaging Details: Packed in carton firstly
Delivery Time: 1-10 working days after received your payment
Payment Terms: T/T or western Union or paypal
Supply Ability: 10,000pcs per month
Contact Now
Detailed Product Description
Product Name: Asset GPS Tracker Feature 1: Free Installation
Feature 2: Portable Feature 3: With 5 Pieces Strong Magnets
GPS Accuracy: 10 Meter Dim.: 115mm*65mm*25mm
Band: 850/900/1800/1900MHz .Weight: 0.365kg
Operation Temp.: -20°C To +55°C Network: GSM GPRS
Storage Temp: -40°C To +85°C Battery: Internal 10000mAh Rechargeable Battery



Free Installation Magnetic auto gps tracking device Large Rechargeable Battery Inside


Performance Parameters:


Content

Specs.

Product Name Asset GPS Tracker

Functions1

Waterproof

Weight

0.365kg

Functions2

Real Time Tracking

Functions3

History Track

GSM Chip

MTK

GPS sensitivity

-159dBm

GPS accuracy

5 -30m

Time To First Fix

Reacquisition  0.1s

 Cold status  45s

Warm status  35s

 Hot status  1s

Work Voltage

3.7VDC-4.5VDC

Application

Car Anti - theft

Standby work current

< 10mA

Storage Temp.

-39°C to +85°C

Operation Temp.

-20°C to +71°C

Humidity

5%--95.5% non-condensing



Main Features:  * Free install * Large volume rechargeable battery * Water-proof.


Details below:

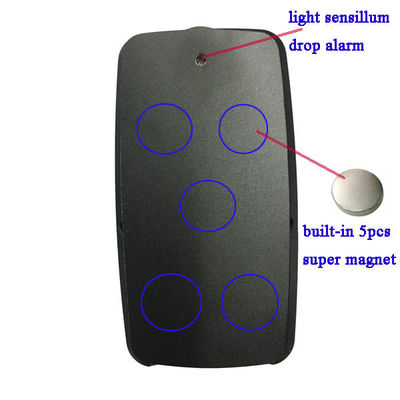

◇ With 5 strong magnetics, adsorbed on the metal, free install.

◇ Battery, rechargeable 10000mah / 20000mah.
◇ Detaching alarm function.

◇ Water-proof.
◇Battery low voltage alarm. (alarm when battery voltage less than 3.7V)
◇ Alert: Movement alert/ Overspeed alert/ Low battery alert
◇ Three working mode. (Save power)
1, Continuous operation working model ( Default ),
Under this mode, the device continuous operate, when the device is static more than 5 minutes, it will sleep, any vibration or operation will active it.
2, No sleeping working model.
Under this mode, the device will continuous operate, it will not sleep never mind how long time static.
3, Sleep working mode (Battery saving mode)
Under this mode, device is in sleeping, user send a SMS command or call the device SIM card number, it will reply a Google map position link, then sleep again.



Initialization



Send “begin+password” in SMS to the unit, it will reply “begin ok” and initialize all the settings. (Default password: 123456)



For example, send SMS“ begin123456” to the tracker via a cell phone, If succeeded,



it will reply“begin ok”.





Battery and Charger



Do charge the battery to capacity in 8 -12 hours for first time. Please use the battery and charger provided by the manufacturer. This unit adopts built-in Li-ion battery, and full battery can standby 70days. After first use, the battery usually should be charged fully in 5--8 hours.



Free Installation Magnetic auto gps tracking device Large Rechargeable Battery Inside

Free Installation Magnetic auto gps tracking device Large Rechargeable Battery Inside

Applications:


1.  Vehicle Rental / Fleet management etc



2.  Container/cargo/asset tracking



Gurantee:

1. All of our product is free to use the Tracking service server in 24 hours each day
2. All of our product there is a 2 year quanlity assurance.
3. Sample fee will not  be returned.


Product Configuration:
 Free Installation Magnetic auto gps tracking device Large Rechargeable Battery Inside
1. Standard configuration

  1. Main device,
  2. Charger ,
  3. USB cables,
  4. Usage instructions.
