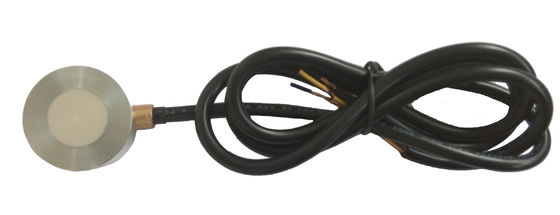

Integrated Ultrasonic Oil Level Fuel Sensor GPS Tracker White 9-36V

China Integrated Ultrasonic Oil Level Fuel Sensor GPS Tracker White 9-36V supplier
Integrated Ultrasonic Oil Level Fuel Sensor GPS Tracker White 9-36V supplier Integrated Ultrasonic Oil Level Fuel Sensor GPS Tracker White 9-36V supplier Integrated Ultrasonic Oil Level Fuel Sensor GPS Tracker White 9-36V supplier

Large Image :  Integrated Ultrasonic Oil Level Fuel Sensor GPS Tracker White 9-36V

Product Details:

Place of Origin: China
Brand Name: caxtrack
Certification: CE/ROHS/FCC/SGS
Model Number: CA-F2

Payment & Shipping Terms:

Minimum Order Quantity: 10 pcs
Price: negotiation
Packaging Details: Packed in carton firstly
Delivery Time: 1-10 working days after received your payment
Payment Terms: T/T or western Union or paypal
Supply Ability: 100,000pcs per month
Contact Now
Detailed Product Description
Product Name: Fuel Sensor GPS Tracker Application: Mixer Truck
Work Voltage: 9-36V Weight: 0.3kg
Color: White Shell: Protective
15CM Cable Tie: Used To Fix The Extention Wire 1.2M Cable Tie: Used To Fix The Probe
Abrasive Paper: Used To Clean The Bottom Of The Tank Working Temperature: -30℃~+75℃
Measurement Accuracy: ±0.5%; Maximum Power Consumption: 0.4W/12VDC
Measurement Resolution: 0.1mm Probe Explosion-proof Grade: Exia Ⅱ CT6 / Exd Ⅱ CT5
Inbreaking Protection: IP66 Liquid Level Value Unit: Millimeter
Peripheral Interface: RS232 / RS485 / Analog Transmission Analog Transmission: 4~20mA Current Output
Working Humidity: 5%~90%.

Integrated Ultrasonic Fuel Level Sensor Fuel Level Sensor Oil Level Sensor



1. Product Introduction

Ultrasonic fuel level sensor is a vehicle fuel monitoring device which is designed for the fuel management needs of company fleet. This sensor can be used to prevent the driver to steal fuel,optimize the operating costs,optimize the driver’s driving behavior and auxiliary statistical decision, etc. The sensor is equipped with a high precision ultrasonic probe, which can detect the fuel quantity in the fuel tank. Fuel quantity data will be sent to the server via GPS tracker,then generate the data report. Sensor support for serial and analog output, so, it can easily docking with other system.

2. Parts List

Integrated Ultrasonic Oil Level Fuel Sensor GPS Tracker White 9-36V

2.1 Standard parts list

Standard parts list Picture
Integrated type Probe



Probeφ33mm

Probe height:12mm

Wire length:1meter

Ultrasonic Couplant
Protective shell
Fuse
15CM cable tie Used to fix the extention wire
1.2M cable tie Used to fix the probe
Abrasive paper Used to clean the bottom of the tank



Technical parameters

No. Project Introduction
1 Working Voltage DC 9V~36V.
2 Working Temperature -30℃~+75℃
3 Storage temperature -40℃~+85℃.
4 Working humidity 5%~90%.
5 Maximum power consumption 0.4W/12VDC
6 Measurement accuracy ±0.5%;
7 Measurement resolution 0.1mm
8 Probe explosion-proof grade Exia Ⅱ CT6 / Exd Ⅱ CT5
9 Inbreaking Protection IP66
10 Liquid level value unit Millimeter
11 Measurement range

Depending on the material and thickness of the container.

if 5mm thick steel plate, the measurement range is 5~100cm.

12 Peripheral interface RS232 / RS485 / Analog transmission
13 Analog transmission 4~20mA current output
14

Communication port

parameter

Baud rate 9600, no parity bit, 8 data bits, 1 stop bit, no flow control. Sensor will smooth the height and temperature values, and transmits them every 10 seconds.All datas can be customized.

3.2 Power on

  • Red wire (V+) / Black wire (V-)
  • Input voltage is between DC 9V~36V. Sensor can be connected to the 12V or 24V car battary directly.
  • Sensor has no built-in battery.

3.3 Interface introduction

No. User Interface Introduction
1 Red wire V+
2 Black wire V-
3 Yellow wire Tx
4 Blue wire Rx
5 Brown wire SGND

3.4 Digital outputs and Analog outputs

  • When using the RS232 serial port to connect GPS trackers and sensors,connect up the sensor's yellow wire to tracker's Rx port, connect up the sensor's blue wire to the tracker's Tx port, connect up the sensor's black wire to tracker's Ground port.
  • Connect the sensor's serial port to computer, watch over the output data through serial port debug tool.



3.5 Auxiliary installation display tool



Couplant Introduction

  • The couplant is only used for selecting the installation area.
  • Befor pasting, clean the residual couplant on the probe surface or at the bottom of the fuel tank.



3.6 Couplant Introduction



3.7 Glue

Glue Introduction

  • Squeeze out half A and half B group smoothly and equally
  • Mix A and B group evently



4. Features of Product and Application range

4.1 Advantage of Ultrasonic fuel level sensor

1.High accuracy.

Resolution of sensor’s measurement for fuel height is 0.1mm.And its measurement accuracy is ±0.5%. It keeps higher accuracy even in highest or coldest outside environment.

2.Excellent stability.

Being different from direct-contact measurement like float-type,pressure-type,magnetic sliding-type, untrasonic fuel level sensor adopts non-contact measurement, which can avoid pollution and corrosion from fuel and keep stability in a long period of time.

3.Easy installment and maintenance.

You only need to install the sensor probe on lower surface of fuel tank. You don’t need to change its original measurement system or punch hole for it. Its original fuel meter operates as usual.

4.No pollution and lower consumption.

This non-contact measurement and non-punch hole for fuel tank can keep off pollution from fuel.

5.High reliability.

It can still work in harsh environment and it is damp-proof, acid-proof, flame-retardant, anti-interference,and intelligent.This product can be used independently to check fuel level data from auxiliary display unit. It seamlessly integrated with GPS tracker which sends fuel level data to host computer for statistics data collection, and perform analysis and query.






APPLICATION:



The ultrasonic fuel level sensor is used for digital recording vehicle refueling, to prevent driver stealing oil , avoid the waste of resources, improve operational efficiency, and improve the traffic safety, strengthen the operation and management level.

       This sensor is applicable to various types of vehicles such as trailers, taxis, buses, concrete mixer truck, engineering machinery, sanitation trucks and other.



Gurantee:



1. All of our product is free to use the Tracking service server in 24 hours each day

2. All of our product there is a 2 year quanlity assurance.

3. Sample fee will not  be returned.





Product Configuration:



1. Standard configuration

1)    main device             1 pcs

2)    power line                1 pcs

3)    sensor

5)    Installation cables    1 set

6)    Usage instructions

7)    Warranty card
