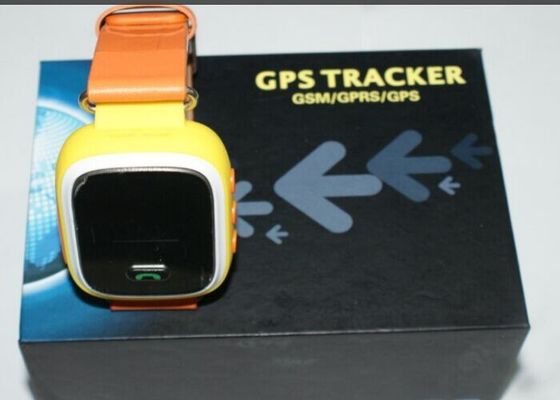

Sporting Wrist Child Tracking Watch Orange GSM With 5m GPS Accuracy

Certification
Good quality Motorcycle GPS Tracker for sales
Good quality Motorcycle GPS Tracker for sales
We are very satisfied with your CA-V1 and CA-V1, CA-V6W for professional customers, CA-V6W is a very good product on the motorcycle,thanks!

—— Touya_ra

now we already used your company CA-V6 more than 2000Pcs, thanks for your company best support, we will expend this business in all of the Kenya

—— Nancy Saruni

your device CA-V1 is very good for our customer project, it is so proffesional , we can use in refrigerator car which can test the temperature ,thanks

—— Rajesmay

I'm Online Chat Now

Sporting Wrist Child Tracking Watch Orange GSM With 5m GPS Accuracy

China Sporting Wrist Child Tracking Watch Orange GSM With 5m GPS Accuracy supplier
Sporting Wrist Child Tracking Watch Orange GSM With 5m GPS Accuracy supplier Sporting Wrist Child Tracking Watch Orange GSM With 5m GPS Accuracy supplier Sporting Wrist Child Tracking Watch Orange GSM With 5m GPS Accuracy supplier

Large Image :  Sporting Wrist Child Tracking Watch Orange GSM With 5m GPS Accuracy

Product Details:

Place of Origin: China
Brand Name: caxtrack
Certification: CE/ROHS/FCC/SGS
Model Number: CA-P0

Payment & Shipping Terms:

Minimum Order Quantity: 10pcs
Price: negotiation
Packaging Details: Packed in carton firstly
Delivery Time: 1-10 working days after received your payment
Payment Terms: T/T or western Union or paypal
Supply Ability: 10,000pcs per month
Contact Now
Detailed Product Description
Product Name: GPS Watch Network: GSM
Band: 850/900/1800/1900 GPS Chip: MTK
GPS Accuracy: 5m Application: Person
Work Voltage: 3.7-4.5V GPS Sensitivity: -159dBm
Color: White,black,red Shell: Plastic
Function: Voice Monitor GPRS Model: MTK6260
Vibration Sensor: Triaxial Vibration Sensor Optional: Microphone

Sporting Wrist Child Tracking Watch Orange GSM With 5m GPS Accuracy






Performance Parameters:


Content

Specs.

Dim.

40*40*8mm

Weight

0.2kg

Network

GSM/GPRS

Band

900/1800/1900MHz or 850/900/1800/1900MHz

GPS chip

Ublox-7

GPS sensitivity

-159dBm

GPS accuracy

5 m

Time To First Fix

Reacquisition  0.1s

 Cold status  45s

Warm status  35s

 Hot status  1s

Work Voltage

DC  3.7-4.5V

Battery

Chargeable changeable 3.7V /1000Mah Li-ion battery

Standby work current

< 30mA

Storage Temp.

-40°C to +85°C

Operation Temp.

-20°C to +70°C

Humidity

5%--95% non-condensing


Sporting Wrist Child Tracking Watch Orange GSM With 5m GPS AccuracySporting Wrist Child Tracking Watch Orange GSM With 5m GPS Accuracy

Description:

  1. Online web platform, the historical and current location can be checked
  2. Remote voice monitoring.
  3. Low battery alarm
  4. A-GPS solutions,shorter locating time,higher precision.
  5. Long Duration battery up to 48 hours fully working ( test under updating per 30 seconds).
  6. Sleep model ,8000MAH battery, can work 2 days .



1. Hardware Introduction


2. Device Activation.

2.1 Bring GPS tracker to open air, and press power switch for 3 seconds, then you can see the indication light will be on. Then GPS tracker will start to search GSM and GPS signal automatically. 2.2. According to the light status, user can judge the GPS tracker status. Once the GPS signal is ready, you can set all functions in user manual.



3. Administrator number setting(Master number setting)



3.1 How to add admin phone number:  (Default factory setting password:123456)  Instruction: admin+password+space+country code+ GSM number For example: admin123456 08615899778447 Then system will reply a SMS: admin ok Notice: User can only use admin number to set SOS number in, furthermore, never cancel the space and country code, the first time you use this tracker, please change the password by the following instruction: password+old 123456+space+new 123456  For example:password123456 666888 Once you change the password, you can receive a SMS from tracker “password ok”


3.2 How to delete admin phone number: Instruction: noadmin+password+space+country code+ GSM number    3.3  SOS alarm phone number setting Instruction: sos+password+space+country code+sos phone number      For example: if your send SMS instruction: sos123456 08615899778447 to GPS tracker, GPS tracker will send you a SMS back with “SOS number ok”, in future, if you long press SOS button for 3 seconds. GPS tracker will send a SOS SMS to all SOS phone number.
3.3.1 Set SOS phone number(support 2 group SOS phone numbers) Instruction:
LED light status Normally on without flash Charging Flash Low battery Off Full battery

4. Set GMT Time zone number: Instruction: time zone+123456+space+GMT No. For example, Finland is GMT+2 zone, so user can set: timezone123456 +2. Then GPS tracker will be adjusted to be the right time zone “Time OK”


5. Inquire location

 Inquire Location by call    If you have set an admin phone number, you can call GPS tracker and get location SMS, but phone number which has not been registered can’t inquire location SMS. If you haven’t set admin phone number, any phone number can be used to inquire location SMS.       When you use admin number to call GPS tracker, the GPS tracker will remind you “ the phone number you call is busy”, then you can hang up the call, the GPS tracker will send a location SMS to you automatically soon like follow:


6.  Listen-in function GPS tracker has two modes: one is tracking mode, the other mode is Listen-in mode, the default setting is tracker model, so when user call GPS tracker, a tracking SMS will be sent back, if user want to listen in GPS tracker by phone call, user has to change the mode first by instruction “ Monitor+password”, then tracker will send a SMS back “ Monitor ok”, then when you call the GPS tracker, you can listen-in what happen near the tracker. If user want to recover to tracker mode, user can send “ tracker+password”, then GPS tracker will be in tracking mode.



8.  Moving Alarm: Instruction: Move+password+moving semidiameter Put GPS tracker on desk without moving for 3-10 minutes, then send instruction to GPS tracker, the default setting distance is 500 meters. If user want to set it to be 1000meters, user can write like “ Move1234561000”, then the GPS tracker will set a moving alarm range with 1000 meters semidiameter. User can set this function in GPS APP also. Cancel moving alarm: nomove+password    SMS reply: Nomove ok. Notice: The moving semidiameter should be 500 meters, or more.



9. Over speed alarm Instruction: speed+password+space+ speed        For example: speed123456 080, then tracker will reply: “speed ok”        If the tracker move over 80km/h, GPS tracker will send a SMS to admin phone number “ Speed alarm+080!+ longitude and latitude. GPS tracker will send over speed alarm SMS every 5 minutes.
Cancel over speed alarm: Instruction: nospeed+password Reply SMS:nospeed ok
Notice: The speed motioned above less than 50km/h will bring some influence to GPS signal, then bring some drift.



10. Low battery alarm Once the tracker battery get close to 3.7V, GPS tracker will send a low battery alarm SMS to admin phone number.



11. Working mode setting: There are three working modes setting for GPS tracker: 1. Timing Sleep mode Instruction: sleep+password+space+time(minutes) For example: Sleep123456 10 , if user send this instruction to tracker, tracker will reply “ Sleep time ok”, without any operations (by button, SMS or Call)for 10 minutes, it will step into sleep mode, GPS function and LED light will be turned off, after that, if you press any GPS tracker button, send SMS, or make a call to GPS tracker, it will be waked up. Of course, this mode will work under no vibration alarm setting.

12.  Recover factory setting and reset GPS tracker 12.1. Recover factory setting: Instruction:format+password Notice: Once user send this instruction to GPS tracker, all setting which has been done by user will be canceled. Only Admin phone number can executive this instruction.



Applications:

 GPS producer , large-scale shopping malls ,


Gurantee:

1. All of our product is free to use the Tracking service server in 24 hours each day
2. Sample fee will not  be returned.


Product Configuration:


1. Standard configuration

1)    main device             1 pcs
2)    charger                    1 pcs
3)    Installation cables    1 set
4)    Usage instructions
5)    Warranty card
