Product Details:
Payment & Shipping Terms:
|
| Network: | GSM/GPRS | Band: | 900/1800/1900MHz |
|---|---|---|---|
| GPS Chip: | U-blox | GPS Accuracy: | 25m |
| Application: | Electric Vehicle | Work Voltage: | 9-75V |
| Dim: | 70*40*20mm | Standby Work Current: | < 30mA |
| Material: | Plastic | Waterproof: | IPX65 |
| GSM CHIP: | MTK6261 | ||
| High Light: | Waterproof GPS Locator,Waterproof GPS Tracking |
||

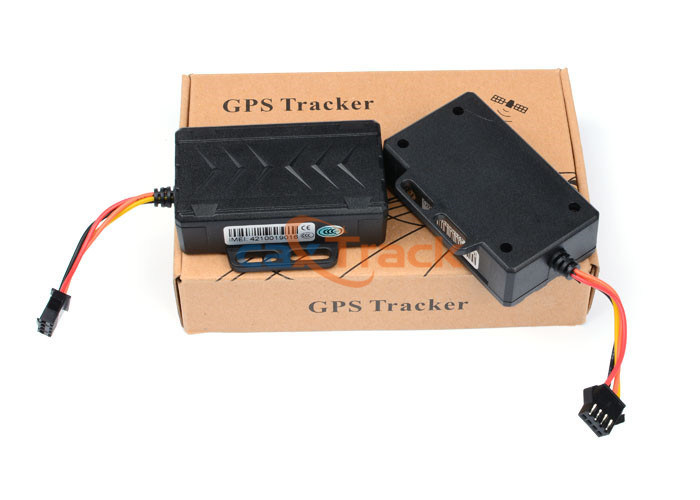

A-GPS High Precision GPS Tracker E-fence Shorter Locating Time
Performance Parameters:
|
Content |
Specs. |
|
Dim. |
70*40*20mm |
|
Weight |
0.2kg |
|
Network |
GSM/GPRS |
|
Band |
900/1800/1900MHz or 850/900/1800/1900MHz |
|
GPS chip |
Ublox-7 |
|
GPS sensitivity |
-159dBm |
|
GPS accuracy |
5 m |
|
Time To First Fix |
Reacquisition 0.1s Cold status 45s Warm status 35s Hot status 1s |
|
Work Voltage |
DC 9-75V |
|
Battery |
Chargeable changeable 3.7V /200Mah Li-ion battery |
|
Standby work current |
< 30mA |
|
Storage Temp. |
-40°C to +85°C |
|
Operation Temp. |
-20°C to +70°C |
|
Humidity |
5%--95% non-condensing |
Functional features:
Detail Pictures:
Applications:
Motorcycle factory , E-bike factroy, EV; Electric Vehicle; LEV company, GPS producer , large-scale shopping malls , exclusive agency , chain shops , large-scale sales
Gurantee:
1. All of our product is free to use the Tracking service server in 24 hours each day
2. All of our product there is a 2 year quanlity assurance.
3. Sample fee will not be returned.
Product Configuration:
1. Standard configuration
1) main device 1 pcs
2) Installation cables 1 set
3) Usage instructions
4) Warranty card
5) Certification
