Waterproof Personal GPS Tracking Device For Seniors Remote Monitoring

China Waterproof Personal GPS Tracking Device For Seniors Remote Monitoring supplier
Waterproof Personal GPS Tracking Device For Seniors Remote Monitoring supplier Waterproof Personal GPS Tracking Device For Seniors Remote Monitoring supplier

Large Image :  Waterproof Personal GPS Tracking Device For Seniors Remote Monitoring

Product Details:

Place of Origin: China
Brand Name: caxtrack
Certification: CE/ROHS/FCC/SGS
Model Number: CA-P9

Payment & Shipping Terms:

Minimum Order Quantity: 10pcs
Price: negotiation
Packaging Details: Packed in carton firstly
Delivery Time: 1-10 working days after received your payment
Payment Terms: T/T or western Union or paypal
Supply Ability: 10,000pcs per month
Contact Now
Detailed Product Description
Network: GSM/GPRS GPS Chip: Ublox
Name: Personal GPS Tracking Work Voltage: 3.7-4.5
Dim: 50*50*15mm Battery: 3.7V /1000Mah Li-ion Battery
GPS Sensitivity: -159dBm Function: Remote Monitoring
Shell: Plastic Package: Box
GPRS Model: MTK6261 Vibration Sensor: Triaxial Vibration Sensor



Waterproof Personal GPS Tracking Device For Seniors Remote Monitoring




Performance Parameters:


Content

Specs.

Dim.

50*50*15mm (mm)

Weight

0.2kg

Network

GSM/GPRS

Band

900/1800/1900MHz or 850/900/1800/1900MHz

GPS chip

Ublox-7

GPS sensitivity

-159dBm

GPS accuracy

5 m

Time To First Fix

Reacquisition  0.1s

 Cold status  45s

Warm status  35s

 Hot status  1s

Work Voltage

DC  3.7-4.5V

Battery

Chargeable changeable 3.7V /1000Mah Li-ion battery

Standby work current

< 30mA

Storage Temp.

-40°C to +85°C

Operation Temp.

-20°C to +70°C

Humidity

5%--95% non-condensing




Description:

  1. Buy one Sim Card and confirm the following details:   This sim card can be used to make call, send SMS, and gets GPRS function.    This sim card gets enough money for GPS tracking service.    This sim card gets caller ID display function, no call forwarding.    The SMS format should be text format, not PDU format. (Most countries use text format for SMS)
  2. How to add admin phone number:  (Default factory setting password:123456)  Instruction: admin+password+space+country code+ GSM number For example: admin123456 08615899778447 Then system will reply a SMS: admin ok Notice: User can only use admin number to set SOS number in, furthermore, never cancel the space and country code, the first time you use this tracker, please change the password by the following instruction: password+old 123456+space+new 123456  For example:password123456 666888 Once you change the password, you can receive a SMS from tracker “password ok”
  3. Personal GPS Tracker Remote voice monitoring.
  4. Personal GPS Tracker Low battery alarm.
  5. Personal GPS Tracker Inlayed 3D accelerator,moving and static state, energy smart.
  6. Personal GPS Tracker Change the time interval of uploading automatically according to the speed.
  7. Admin checks the altitude and longitude and location information by texting.
  8. A-GPS solutions,shorter locating time,higher precision.
  9. Long Duration battery up to 48 hours fully working ( test under updating per 30 seconds).
  10. Sleep model ,1000MAH battery, can work 3 days .



1. Hardware Introduction

1.1. Online web platform, the historical and current location can be checked.

1.2. Please use the screw driver to open the GPS tracker, and Insert the sim card with the correct direction (golden part   faces down).

1.3 The first time you use this tracker, please charge the GPS tracker 12 hours, so that the battery can get a good performance, Normally, it only takes 3-5 hours to charge battery fully. Because the battery in tracker is li battery, so don’t squeeze it illegally, or put it into fire. The normal standby time of battery is 100 hours.


2. Device Activation.

2.1 Bring GPS tracker to open air, and press power switch for 3 seconds, then you can see the indication light will be on. Then GPS tracker will start to search GSM and GPS signal automatically. 2.2. According to the light status, user can judge the GPS tracker status. Once the GPS signal is ready, you can set all functions in user manual.



3. Administrator number setting(Master number setting)



3.1 Hijack alarm, 9 SOS numbers can be preset.




3.2 How to delete admin phone number: Instruction: noadmin+password+space+country code+ GSM number    3.3  SOS alarm phone number setting Instruction: sos+password+space+country code+sos phone number      For example: if your send SMS instruction: sos123456 08615899778447 to GPS tracker, GPS tracker will send you a SMS back with “SOS number ok”, in future, if you long press SOS button for 3 seconds. GPS tracker will send a SOS SMS to all SOS phone number.
3.3.1 Set SOS phone number(support 2 group SOS phone numbers) Instruction:
LED light status Normally on without flash Charging Flash Low battery Off Full battery

4. Set GMT Time zone number: Instruction: time zone+123456+space+GMT No. For example, Finland is GMT+2 zone, so user can set: timezone123456 +2. Then GPS tracker will be adjusted to be the right time zone “Time OK”


5. Inquire location

 Inquire Location by call    If you have set an admin phone number, you can call GPS tracker and get location SMS, but phone number which has not been registered can’t inquire location SMS. If you haven’t set admin phone number, any phone number can be used to inquire location SMS.       When you use admin number to call GPS tracker, the GPS tracker will remind you “ the phone number you call is busy”, then you can hang up the call, the GPS tracker will send a location SMS to you automatically soon like follow:


6.  Listen-in function GPS tracker has two modes.


7.  G-Fence alarm
   We suggest that this setting will be set by Web GPS CMS. User can use this function to define the working range, once the GPS tracker step out of this working range, it will send an alarm to admin phone number.


8.  Moving Alarm: Instruction



9. Over speed alarm Instruction: speed+password+space+ speed        For example: speed123456 080, then tracker will reply: “speed ok”        If the tracker move over 80km/h, GPS tracker will send a SMS to admin phone number “ Speed alarm+080!+ longitude and latitude. GPS tracker will send over speed alarm SMS every 5 minutes.
Cancel over speed alarm: Instruction: nospeed+password Reply SMS:nospeed ok
Notice: The speed motioned above less than 50km/h will bring some influence to GPS signal, then bring some drift.



10. Low battery alarm Once the tracker battery get close to 3.7V, GPS tracker will send a low battery alarm SMS to admin phone number.



11. Working mode setting: There are three working modes setting for GPS tracker: 1. Timing Sleep mode Instruction: sleep+password+space+time(minutes) For example: Sleep123456 10 , if user send this instruction to tracker, tracker will reply “ Sleep time ok”, without any operations (by button, SMS or Call)for 10 minutes, it will step into sleep mode, GPS function and LED light will be turned off, after that, if you press any GPS tracker button, send SMS, or make a call to GPS tracker, it will be waked up. Of course, this mode will work under no vibration alarm setting.

12.  Recover factory setting and reset GPS tracker 12.1. Recover factory setting: Instruction:format+password Notice: Once user send this instruction to GPS tracker, all setting which has been done by user will be canceled. Only Admin phone number can executive this instruction.

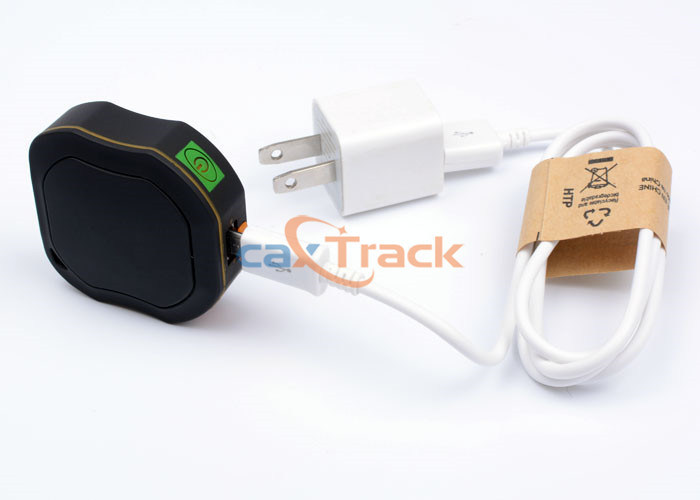

Detail Pictures:

Waterproof Personal GPS Tracking Device For Seniors Remote Monitoring

Waterproof Personal GPS Tracking Device For Seniors Remote Monitoring

Waterproof Personal GPS Tracking Device For Seniors Remote Monitoring


Applications:

Old Peple, students, Dog, Animal , Pet shop , pet company , GPS producer , large-scale shopping malls , exclusive agency , chain shops , large-scale sales


Gurantee:

1. All of our product is free to use the Tracking service server in 24 hours each day
2. All of our product there is a 2 year quanlity assurance.
3. Sample fee will not  be returned.


Product Configuration:


1. Standard configuration

1)    GPS Tracking Device             1 pcs
2)    charger                                  1 pcs
3)    Installation cables                  1 set
4)    Usage instructions
5)    Warranty card
6)    Certification
