Product Details:
Payment & Shipping Terms:
|
| Product Name: | Motorcycle GPS Tracker | Application1: | Anti-theft |
|---|---|---|---|
| Application2: | Car Management | App: | Mobile Phone App |
| GPS Accuracy: | <30m | Functions1: | Real Time Tracking |
| Work Voltage: | DC9.5-39.9V | Dim.: | (L)90*(W)45*(H)13.8mm |
| Weight: | 0.04g | GPS Sensitivity: | -159dBm |
| Highlight: | motorcycle gps tracking,motorbike gps tracker |
||

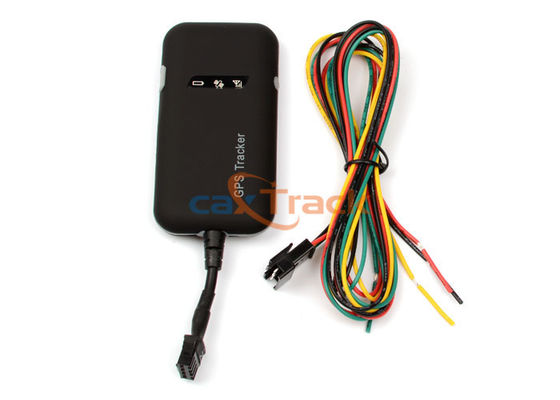

0.04kg Anti-theft GPS Tracker For Motorcycle / Car Management
Performance Parameters:
|
Content |
Specs. |
| Product Name | Motorcycle GPS Tracker |
|
Dim. |
90(L)mm*(W)45mm*(H)14mm |
| Application | Taxi,Truck,Car |
|
GPS Accuracy |
<30m |
| Functions1 | Remote cut off engine |
| Weight | 44g |
|
Voltage |
DC12V-39V |
|
Band |
900/1800Mhz |
|
GPS chip |
MTK Chip |
|
GPS sensitivity |
-159dBm |
|
Working currency |
20mA |
|
Storage Temp. |
-41°C to +86°C |
| Functions2 | Remote cut off Power |
|
App |
Mobile Phone app for Iphone and android |
|
Humidity |
21%--81% RH |
Description:
Detail Pictures:
Operation of device:
1 Open top cover firstly, Note top cover hasn’t fixed with screws in factory
2 Please press power switch on the up position (Powered off) Please refer picture 3.
3 Insert SIM card to the card slot and close well.
4 Please press power switch on the down position (Powered on). Please refer picture 3.
5 Please close the top cover and fix it with 4 screws.
6 Connect the power code with the interface of device.
7 Please require professional technical to connect wires and install in the car properly.
LED Indicator:
1 Red Led-( Power status indicator)
|
Led Status |
Meaning |
|
Quick Flashing |
Working normally (working by backup car battery) |
|
Slow Flashing |
Working normally (working under battery of device) the device will change to work by own battery while backup battery had been cut down. And it will alarm. |
|
bright status: |
Device Error |
2 Blue Led Light-( GSM status indicator)
|
Led Status |
Meaning |
|
Quick Flashing |
Working normally, Uploading GPRS data to platform server. |
|
Slow Flashing |
Working normally, Receive GSM signal normally |
|
Continuously in bright status |
No GSM signal |
3.3 Green Led Light – (GPS status Indicator)
|
Led Status |
Meaning |
|
Flashing |
Working normally. GPS located. |
|
Continuously in bright state |
Searching GPS signal |
Applications :
4s shop , car company , truck company , motorcycle company , GPS producer , large-scale shopping malls , exclusive agency , chain shops , large-scale sales , car repair shop,taxi company .
Gurantee:
1. All of our product is free to use the Tracking service server in 24 hours each day
2. All of our product there is a 2 year quanlity assurance.
3. Sample fee will not be returned.
Product Configuration:
1. Standard configuration
2. Optional accessories
1. DC12V Relay (5Line)
2. Rechargeable Li-ion Battery(Built-in)
