Free APP Mobile Remote Tracking 2G Gps Tracker With Geofence Alarm History Playback
|
Product Details:
Payment & Shipping Terms:
|
Detailed Product Description
| Chip: | MT6261 | GPRS:: | Class 12, TCP/IP |
|---|---|---|---|
| Alarm System::: | Over Speed Alarm, Moved Alarm | Placement: | In-Dash 1DIN, In-Dash 2DIN |
| Use: | Motorcycle, Other, Automotive | Working Temperature:: | -20°-70 ° |
| Network: | GSM/GPRS 850/900/1800/1900MHz | Application: | Car Rental, Fleet Management, Cargo & Logistics |
| High Light: | GPRS GPS Realtime Car Tracker,ACC GPS Tracking Device,ACC Detected Car GPS Tracker |
||
Free APP Mobile Remote Tracking 2G Gps Tracker With Geofence Alarm History Playback

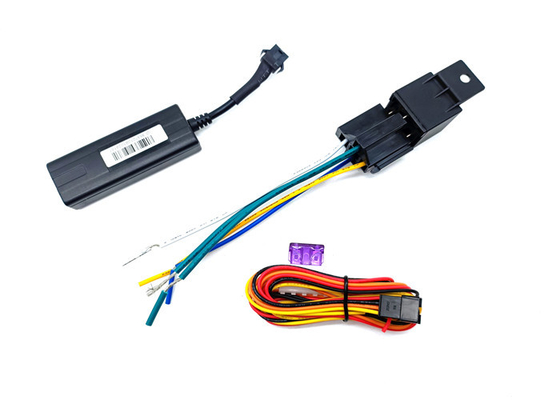

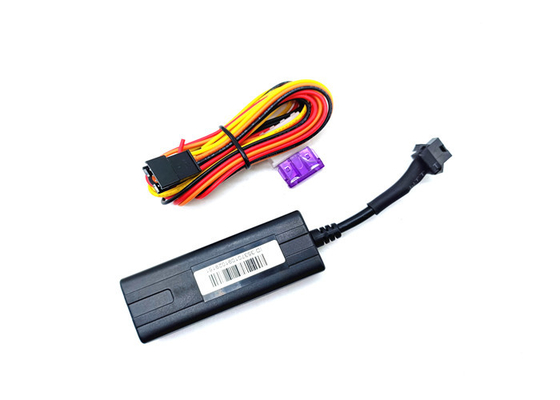

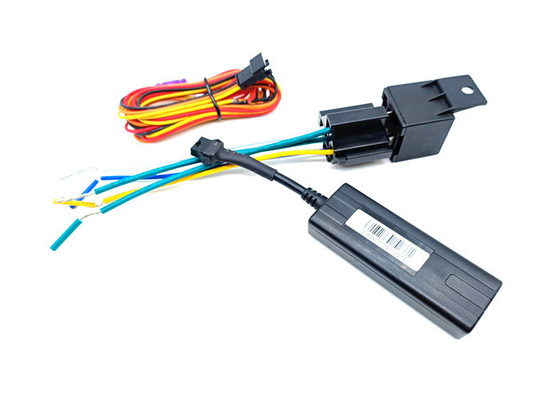

TK003 2 GPS Vehicle Tracker
The TK003 is manufactured to meet the need of car, e-bikes, e-scooters, and motorcycles. It is equipped with a highly reliable electric circuit design and complies with electronics industry standards. Providing functions such as remote fuel cut-off, electric failure alerts, geo-fence function, and overspeed warning, the TK003 provides crucial visibility into the status of the vehicle and the behavior of it's driver.
Product Description
Check realtime location via SMS/APP/Platform
GPS/LBS positioning
Built-in battery(180mAh), support external power disconnect alarm for anti-theft
Support Real-time tracking
Remotely stop/restore engine/Oil
Support Overspeed alarm
Support GEO fence alarm
Support Power Off alarm
Support low battery alarm
Features:
1.Remote cut-off (fuel/power)
Compel the vehicle to stop by breaking off the fuel connection
2.ACC detection - lgnition status
Be aware of the igniton status whenever you need
3.9-100V rated range
Wide operating voltage applicable to all types of vehicles
4.Multiple alerts
Instant alert for vibration, overspeed, power off, geo-fence
. Realtime Tracking
You will can realtime track the device on google maps via mobilephone, tablet and computer, and the minumum data upload interval is 10 seconds!
. History Route Playback
The APP and web server can record the upload data of the device up to 6 months, you will can playback the history route at any time!
Specifications:
|
GSM Specification
|
|
|
GSM frequency
|
850/900/1800/1900 MHz
|
|
GPRS
|
Class 12, TCP/IP
|
|
Memory
|
32+32Mb
|
|
Phase error
|
RMSPE<5,PPE<20
|
|
Max output
|
GSM850/GSM900:33±3dBm
|
| GSM1800/GSM1900:30±3dBm | |
|
Max frequency error
|
±0.1ppm
|
|
GPS Specification
|
|
|
GPS chipset
|
MTK6261 high sensitivity chip
|
|
Frequency
|
L1,1575.42MHz C/A code
|
|
Location accuracy
|
<10 meters
|
|
Tracking sensitivity
|
-162dBm
|
|
Acquisition sensitivity
|
-148dBm
|
|
TTFF (open sky)
|
Avg. hot start ≤2sec
|
|
Avg. cold start ≤38sec
|
|
|
Others
|
|
|
Battery
|
180mAh/3.7V Li-Polymer battery
|
|
Working voltage/current
|
9-100VDC/7mA(60VDC)
|
|
Working time
|
1 hours
|
|
Operating temperature
|
-20℃～70℃
|
|
Device weight
|
34g
|
|
Device dimension
|
76.0(L)*26.0(W)*15.0(H)mm
|
Free APP Mobile Remote Tracking 2G Gps Tracker With Geofence Alarm History Playback
FAQ
When can I get the price?
We usually quote within 24 hours after receiving your inquiry, usually less than 12 hours.
Can we get the sample?
Yes, we can provide regular samples for your inspection, but the cost and freight of the samples will be borne by you.
How long will it take to receive the goods?
For products in stock, we can ship them within 2-7 days after receiving the order. The time you can receive the goods depends on your address and the way you ship them.
What kind of express delivery do you often arrange?
By express delivery, such as DHL, EMS, UPS, TNT, etc., or by air, depending on your requirements. After the package is sent out, we will help track the trace of express delivery and give you the express bill number.
Do you accept less than 100 orders?
Yes, of course, we can accept small orders. Some products have minimum mop requirements.
Do you accept OEM / ODM services?
Yes, OEM / ODM is very welcome. You can customize the design or choose our design. We can customize the packaging and print the logo for you.
Does your product have a warranty?
Yes, our products have a warranty. The warranty period is usually 12 months. And provide after-sales technical support and service.
What are the terms of payment?
According to the order quantity, we usually accept T / T , Western Union, MoneyGram, Ali pay , Ali trade guarantee.
