Thin Mini Gps Tracker Low Cost Real Time Positioning For Motorcycle Car Vehicle

Thin Mini Gps Tracker Low Cost Real Time Positioning For Motorcycle Car Vehicle

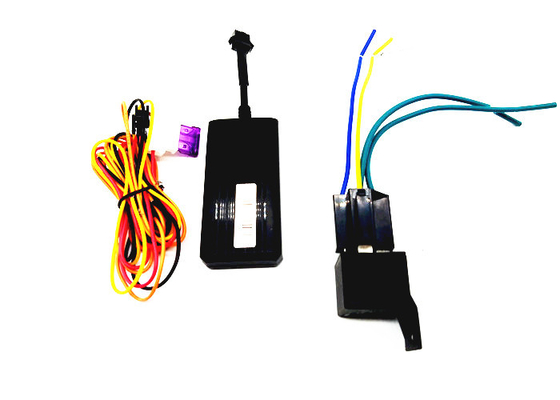

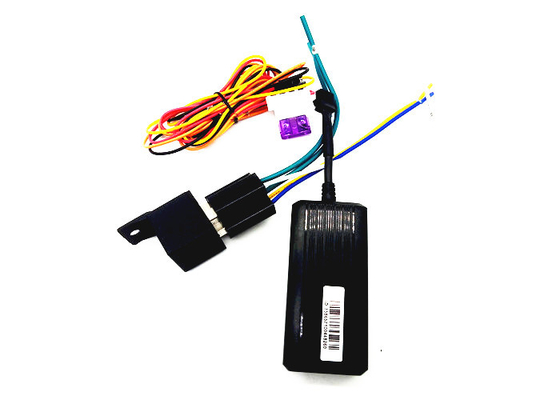

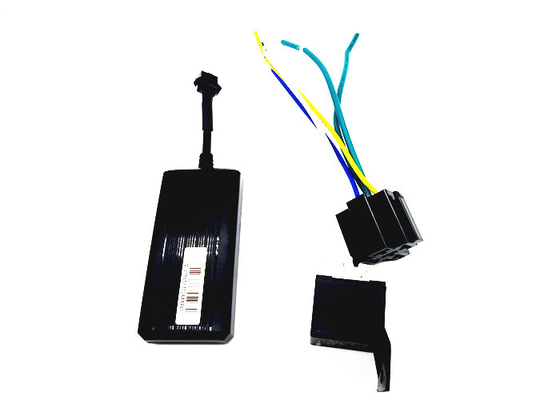

C003-01-4G is a wired multifunctional 4G vehicle-mounted positioning and tracking device. Its rich interface can connect a variety of different sensors . The product is suitable for monitoring and data collection of various vehicles.

Thin Mini Gps Tracker Low Cost Real Time Positioning For Motorcycle Car Vehicle

Specification

Thin Mini Gps Tracker Low Cost Real Time Positioning For Motorcycle Car Vehicle

Remarks

1.GPSGSM antennas are built-in design,it can be artistic but unaffected.

2.Power onnector,it works as a line to connect the engine and the tracker,offering orginal supply to tracker.

3.GPS mode is adapted to u-blox chip, its position accuracy reaches to 5m.

4.GSM mode is adapted to MTK MT6260 chip,has dual core, can transmit data by TCP and SMS.

5.DC-DC circuit can convert the voltage 9~90V of engine to 5V for tracker to work normally.

6.GSM chip can support SIM card of worldwide bands of 850/900/1800/1900MHZ.

Real Time Tracking
More precise positioning,wider coerage,

More accurate location

Cut and resume oil remotely
Cut off vehichle power or fule with relay
so as to stop vehicle in case of theft

History Route
User can playback vehicle past location details

Geo-fence
when vehicle move in or out preset geo-fence,there is instant alarm.

Thin Mini Gps Tracker Low Cost Real Time Positioning For Motorcycle Car Vehicle

Component selection:

Properly selected components determine the reliability level and the production cost of a device. We choose components by optimising the customer's expectations.

Electrical diagram design:

Diagram design is a fundamental stage of equipment design. In many cases, the process is iterative and requires modifications.

PCB design:

The next stage is laying out the components on the printed circuit board. Designing a multilayer PCB that meets the functional requirements and guarantees stable

operation of the device requires considerable expertise and experience in the area of electromagnetic compatibility.

Equipment start-up:

It is the fun part of the hardware design process. At this stage, the results of many hours of work can be finally put to test.

We take customers' satisfaction as the life of our company, which earn us many orders from new and old clients, who know our business style.

we hope we can have the pleasure to provide our service to you, if you are looking for a reliable supplier.
