4G GPS Tracker For Vehicle ACC Detection Anti-Theft Vibration Alarm
|
Product Details:
Payment & Shipping Terms:
|
Detailed Product Description
| Function: | Over Speed Alarm | Place Of Origin: | Guangdong China Guangdong |
|---|---|---|---|
| Model Number: | C003-01-4G | Working Voltage: | DC9-80V |
| Working Temp. Range: | -20℃~+70℃ | Application: | Engineering Transport Vehicle,dangerous Goods Transport Vehicles Ect. |
| Products: | Gps Tracking | MOQ: | 1 Set |
| High Light: | 3.7V Battery 4G GPS Tracker,90VDC MTK 4G GPS Tracker,30mA ACC Detection Vehicle GPS Tracker |
||

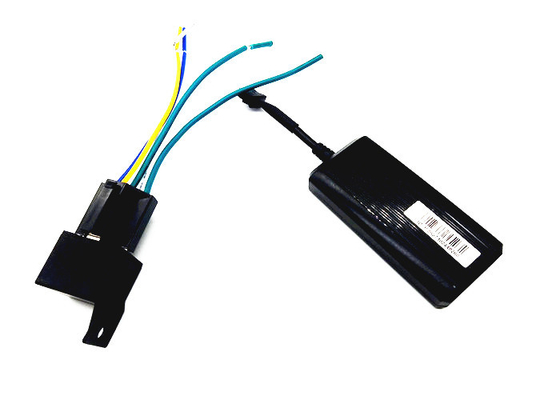

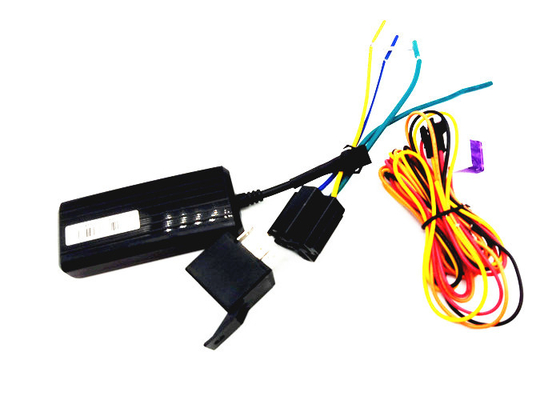

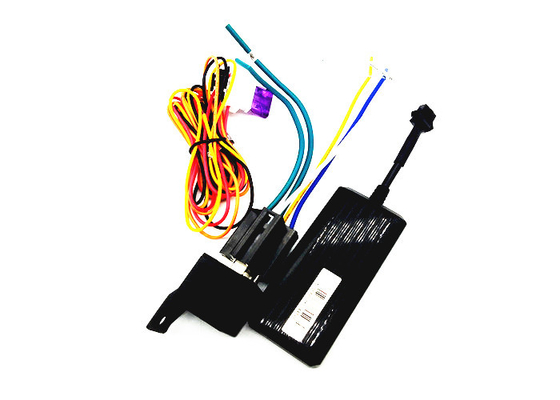

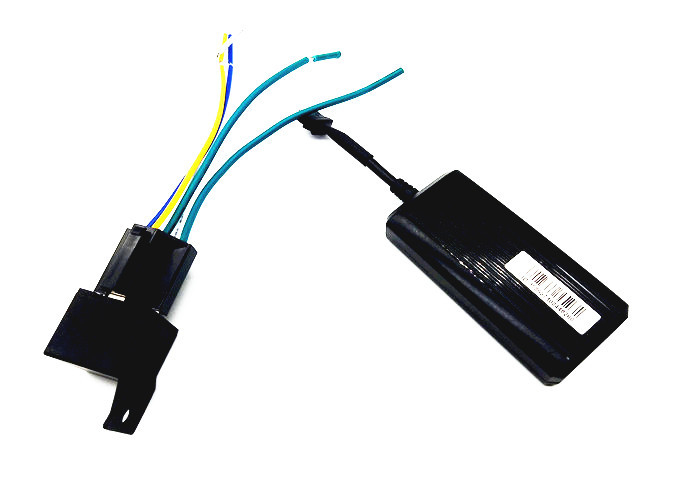

4G GPS Tracker For Vehicle ACC Status Detection Anti-Theft Vibration Alarm
C003-01-4G is manufactured to meet the need of car, vehicle, and motorcycles. It is equipped with a highly reliable electric circuit design and complies with electronics industry standards. Providing functions such as remote fuel cut-off, electric failure alerts, geo-fence function, and overspeed warning, the C003-01-4G provides crucial visibility into the status of the vehicle and the behavior of it's driver.
4G GPS Tracker For Vehicle ACC Status Detection Anti-Theft Vibration Alarm
Specifications:
|
GSM Specification
|
|
|
GSM frequency
|
850/900/1800/1900 MHz
|
|
GPRS
|
Class 12, TCP/IP
|
|
Memory
|
32+32Mb
|
|
Phase error
|
RMSPE<5,PPE<20
|
|
Max output
|
GSM850/GSM900:33±3dBm
GSM1800/GSM1900:30±3dBm |
|
Max frequency error
|
±0.1ppm
|
|
GPS Specification
|
|
|
GPS chipset
|
MTK high sensitivity chip
|
|
Frequency
|
L1,1575.42MHz C/A code
|
|
Location accuracy
|
<10 meters
|
|
Tracking sensitivity
|
-162dBm
|
|
Acquisition sensitivity
|
-148dBm
|
|
TTFF (open sky)
|
Avg. hot start ≤2sec
Avg. cold start ≤32sec |
|
Others
|
|
|
Battery
|
200mAh/3.7V battery
|
|
Working voltage/current
|
9-90VDC/<30mA
|
|
Operating temperature
|
-20℃～70℃
|
|
Device weight
|
50g
|
|
Device dimension
|
90.0(L)*40.0(W)*15.0(H)mm
|
4G GPS Tracker For Vehicle ACC Status Detection Anti-Theft Vibration Alarm
Standard Function
| Remote cut-off (petrol/power) | Light and compact |
| Compel the vehicle to stop by breaking off the fuel connection | Small size allowing covert & easy mounting |
| ACC Igniton Checking | GPS + LBS Positioning |
| Be aware of the ignition status where you need | Allow the location to be pinpointed in real time |
| Tracked by: SMS, APP, Web | voltage range:9-100V |
| Reports location in real time through different interfaces | Voltage adaptation up to 100v |
4G GPS Tracker For Vehicle ACC Status Detection Anti-Theft Vibration Alarm
FAQ:
1. Where is your factory?
Answer: Our factory is in Shenzhen City China.
2. Do you test all your products when your product them?
Answer: Yes, of course, we test all before ship them.
3. Do it contain built-in battery for your GPS Tracker product?
Answer: Yes,this model contains one 1200mAh battery.
4. What kinds of GPS Chip you use?
Answer: we used Ulbox Chip.
