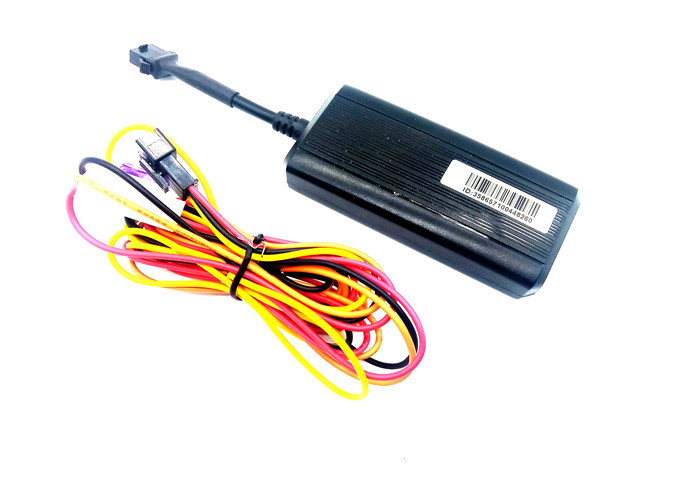

200mAH Battery Vehicle GPS Tracker Car Anti Theft Vehicle Tracking Device
|
Product Details:
Payment & Shipping Terms:
|
Detailed Product Description
| Weight: | 0.05kg | Certificate: | ISO9000 CE |
|---|---|---|---|
| Use: | Automotive | Connection: | 3G/4G Sim Card, 2G Sim Card |
| Type: | 4G GPS Tracker | Placement: | Portbale |
| Function: | Real Time Tracking | Warranty: | 1 Year |
| High Light: | 2600MHz Vehicle GPS Tracker,200mAH Battery Vehicle GPS Tracker,2H Standby Vehicle Tracking Device |
||
Car Vehicle 200mAH Battery Life GPS Tracker Car Anti Theft Mini Small size Vehicle Tracking Device
Parameters
| Content | Specifications |
| GPS Model | UBLOX |
| Dimensions | 90*40*15 mm |
| Weight | 50 g |
| Network | GSM/GPRS/WCDMA/FDD-LTE |
| Band | 850/900/1800/1900Mhz 2100/1900/900/850MHz 800/850/900/1800/2100/2600MHz |
| GPS chip | UBLOX |
| GSM Module | MTK6261 |
| GPS accuracy | 10m |
| Time to First Fix | Cold status 38s Warm status 32s Hot status 2s |
| Battery | Biuilt-in 200 mAh |
| Standby | 1-2H |
| Storage Temperature | -40 to 85 ℃ |
| Operation Temperature | -20 to 55 ℃ |
| Humidity | 20%-80% non-condensing |
Car Vehicle 200mAH Battery Life GPS Tracker Car Anti Theft Mini Small size Vehicle Tracking Device
Features

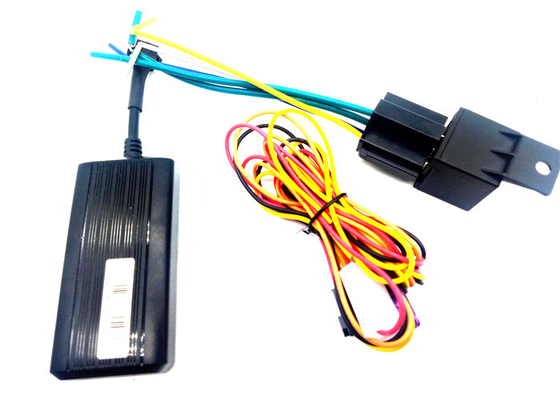

| Remote cut-off (petrol/power) | Light and compact |
| Compel the vehicle to stop by breaking off the fuel connection | Small size allowing covert & easy mounting |
| ACC Igniton Checking | GPS + LBS Positioning |
| Be aware of the ignition status where you need | Allow the location to be pinpointed in real time |
| Tracked by: SMS, APP, Web | voltage range:9-100V |
| Reports location in real time through different interfaces | Voltage adaptation up to 100v |
Car Vehicle 200mAH Battery Life GPS Tracker Car Anti Theft Mini Small size Vehicle Tracking Device
Installation
Terminal installation is concealed installation, hidden installation recommendations terminal equipment designated by the distributor of professional and technical personnel to install, note the following:
1 To avoid damage to the thief, the device select bits should be hidden;
2 To avoid to put the emission sources together, such as reversing radar, anti-theft devices and other automotive communications equipment;
3 It can be fixed by cable ties, or use wide sponge double-sided adhesive stickers;
4 Equipment built-in GSM antenna and GPS antenna, the installation should ensure a positive upward (toward the sky), and the above non-metal shield block.
Device status indicators
1 Connect DC 9-100V power supply and the red LED will light continuously.
The red LED is the power signal,
it is always on when the external DC is connected.
2 The blue LED is the GSM signal indicator.
It is always on when there is no GSM;
it flashes when GSM is normal;
it flashes quickly when transmitting data.
3 The yellow LED is the GPS signal indicator:
it is always on when there is no positioning;
Car Vehicle 200mAH Battery Life GPS Tracker Car Anti Theft Mini Small size Vehicle Tracking Device
FAQ:
Q: How to monitor the GPS Tracker?
A: User can login the web gps tracking software and Phone IOS/Android Tracking APP to monitor their vehicle or pets or kids respectively at real time.
Q: Can I have admin account at the gps tracking system and any monthly cost?
A: We shall offer you admin account so you can create subaccount. No monthly or yearly subscription charge for long term business.
Q: How much data is needed per month?
A: Per real test, a month 30 Mb GPRS data plan is enough. For voice recording device, it may need more depending on the frequency of voice message.
Q: Do you offer branded service?
A: YES.
Software: We can support clients with customized URL. Need yearly order above 1000 units.
Hardware. We offer logo printing on both GPS tracking device and Packing box.
Q: How do you support me and what is the warranty?
A: We offer real time support by Phone, Email and Whatsapp. 12 months warranty available.
Q: Can the GPS tracking device work in my country?
A: Except USA, Australia, Canada, Singapore, Japan, Korea, which need 3G or 4G GPS locator, almost all the rest countries still support 2G internet and use 2G GPS tracking system.
Q: What is minimum order quantity?
A: We advise clients to take at least 2 samples for testing purpose.
