Product Details:
Payment & Shipping Terms:
|
Place Of Origin: | China,shenzhen | Use: | Automotive |
---|---|---|---|
Weight: | 50g | Working Voltage: | DC9-100V |
Function: | GPS Anti-jammer Tracker,Cut-off Engine | Size: | 90(L)×40(W)×15(H)mm |
Certificate: | ISO CE | Bands: | Worldwide 4 Bands |
High Light: | FCC 4G OBD GPS trakcer,LBS Locating Diagnostic Code Reader,ACC Input Detection GPS Tracker |

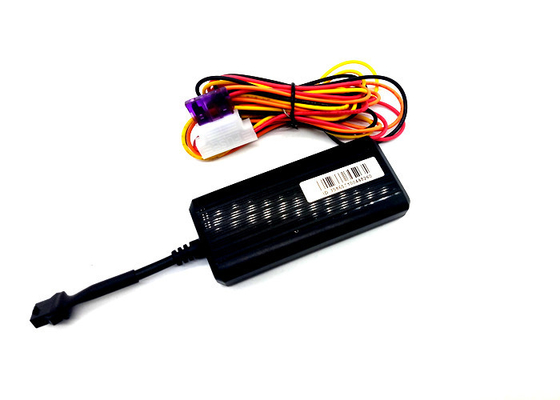

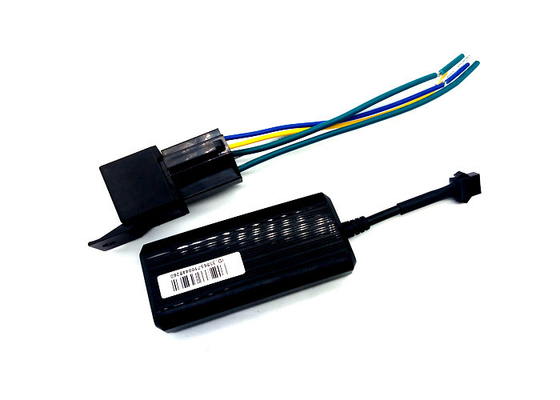

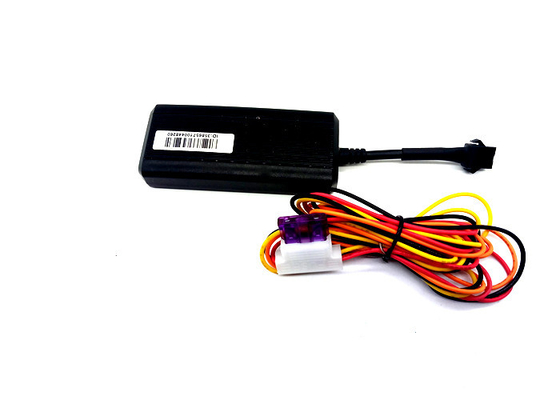

Mini GPS Tracker Real Time Positon Full Frequency Band Tracking Device For Vehicle
C003-01-4G Vehicle GPS Tracker
Fastest 4G that allows operation in all of North America, Europe ,Middle East , Africa .
Simple plug and play design allows you to easily move the tracker from one vehicle to another
Exclusive app for iOS and Android gives you the flexibility to monitor your vehicle's movements in real time from anywhere
Mini GPS Tracker Real Time Positon Full Frequency Band Tracking Device For Vehicle
Product description
Unit Size: 9.0*4.0*1.5cm
GPS positioning precision:5-10m
Weight:50g
Working Temperature:-20°c~70°c
Geo-fence:Geo -fence alarm support
GSM+GPRS+GPS:GPS Location
History Trace:180 days History Report
GPRS:CLASS12,TCP/IP
GSM Frequency:850/900/1800/1900 MHz
Voltage input range: 9-100V
Product Paramenters
GSM Frequency | GSM 850/900/1800/1900MHz |
FD-LTE | FDD-LTE 800/850/900/1800/2100/2600MHz |
Dimension | 90 *40 *15 mm |
Weight | 50g |
Built-in Battery | 200mAh |
Colors | Black |
LED Indicator | GPS(yellow), GSM(blue), Power(red) |
Operating Voltage | 9-100VDC |
Working mode | Normal mode |
Antenna | Built-in GPS antenna 18*18*4 mm |
Location Accuracy | 10meters |
Location time | Hot start:≤2sec(open sky) Cold start:≤38sec(open sky) |
Operating Temperature | -20℃~70℃ |
Operating Humidity | 20%~80% |
Standard accessories | GPS tracker,Manual,Cable harness |
Data Transmit | TCP, SMS |
Mini GPS Tracker Real Time Positon Full Frequency Band Tracking Device For Vehicle
Common Functions
1.Real-time tracking
2.GPS+BD+LBS triple positioning
3.ACC detection
4.Cut off oil and power
5.Remote Monitoring
6.SOS button(Optional SOS button)
7.Electric fence
8.Historical track
9.Call/SMS alarm
10.Vibration alarm
11.Over speeding alarm
12.Multiple device management
(1) When the monitoring center issues an immediate command, the GPS terminal uploads the location information (including longitude, latitude, azimuth, speed, satellite number, etc.) and status information of the vehicle, person or pet in time.
(2) For remote tracking, the monitoring center can set the GPS terminal on the monitoring software for timing tracking settings, and can set a fixed time to upload location information and status information. Once the settings are successful, the GPS terminal will follow the instructions issued by the monitoring center. Upload the information needed by the monitoring center in time.
(3) Historical track playback function. In the historical trajectory playback, the system can check where the vehicle is on a certain day in the historical information and which route it takes. What is the state of the vehicle at that time and so on.
Mini GPS Tracker Real Time Positon Full Frequency Band Tracking Device For Vehicle
FAQ
Q:What is the applicable range of this product?
A:We on intelligent vehicle terminal for logistics vehicles, private cars, taxis, motorcycle, e-bike, motorbike, etc
Q:Can your products pass CE/ROHS certificate?
A:Yes, our products meet the industrial standards, like: CE/ROHS/CCC/FCC/MSDS
Q:What is your minimum order quantity?
A:trial order or sample order is accept.
Q:What are the shipping ways you can offer?
A:By air/sea according to customers' requirements
Q:Payment method?
A:1.We accept T/T bank,Weston Union and Paypal.
2.100% payment before shipping
Q:What is your warranty for goods?
A:1.All goods have the warranty for 1 year
2.If there is any product in defective,please notify us within 7 days of delivery
