Product Details:
Payment & Shipping Terms:
|
Warranty: | 2 Years | Use: | Automotive |
---|---|---|---|
Working Current: | 22mA(12VDC) | Chipset: | MTK6261 |
Working Temp: | -20°C-70°C | Weight: | 50g |
Frequency: | 4G 800/850/900/1800/2100/2600MHz | Size: | 90(L)×40(W)×15(H)mm |
High Light: | 22mA GSM GPRS Tracker,Real Time GSM GPRS Tracker,Geo Fence Car Gps Tracker |

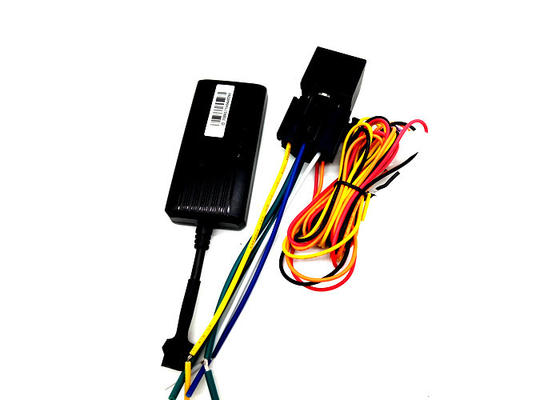

GPS GSM GPRS Tracker Geo-fence Small Size Real Time with Car Alarm 4G GPS Tracker
Main Function Description
1.For all models vehicles(9-1000V) |
2.Location based service(LBS) + GPS double tracking solution |
3.Anti-theft gsm alarms: |
Movement alarm |
Geo-fence alarm |
Over speed alarm |
Vibration alarm |
4.Remotey shutdown engine . |
5.Support 4G 3G 2G SIM Card |
6.SMS tracking on cell phone with google map link |
7.Absolute street address by SMS |
8.Web server, free PC tracking soft, Mobile phone APP |

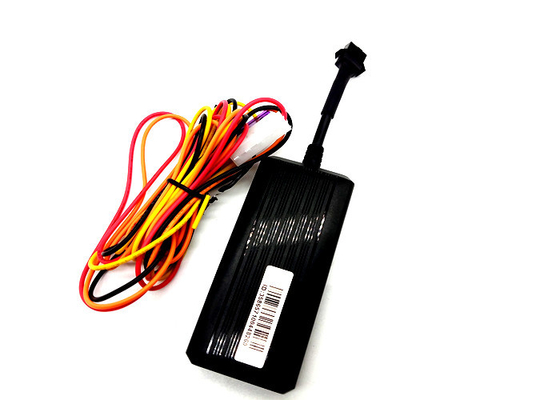

GPS GSM GPRS Tracker Geo-fence Small Size Real Time with Car Alarm 4G GPS Tracker
Hardware Specification:
Content | Specs. |
Mainframe Dimension | 86*40*13mm |
Net weight | 50g |
4G frequencies | LTE TDD B40 |
LTE FDD B1/B2/B3/B4/B5/B6/B7/B8/B28 | |
UMITS/HSPA+B1/B2/B5/B8 | |
chipset | SIM7600 |
Standby Current | ≤5mAh |
GPS locating time | cold start=38s warm start=32s hot start=2s |
GPS Sensitivity | -159dB |
GPS Accuracy | ≤ 10m |
Work environment temperature | -40℃+80℃ |
Work environment humidity | 20%-80%RH |

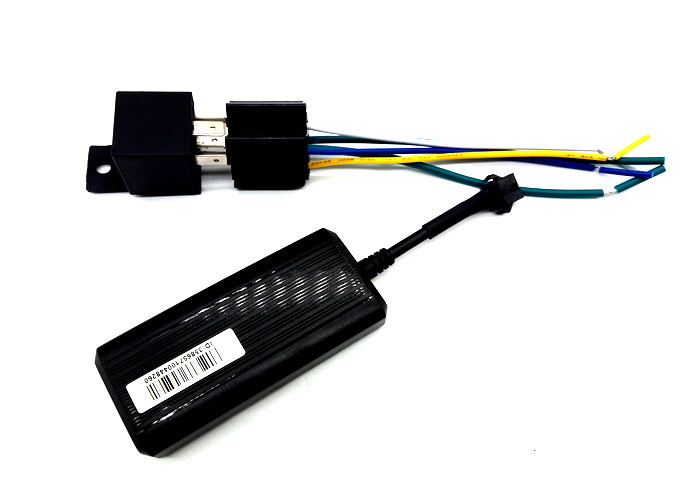

GPS GSM GPRS Tracker Geo-fence Small Size Real Time with Car Alarm 4G GPS Tracker
4G Bands in different countries:
Europe / Middle East / Africa / South Korea / Thailand
EC25-E:
LTE FDD: B1/B3/B5/B7/B8/B20
LTE TDD: B38/B40/B41
WCDMA: B1/B5/B8
GSM: B3/B8
North America
EC25-A:
LTE FDD: B2/B4/B12
WCDMA: B2/B4/B5
EC25-V:
LTE FDD: B4/B13
Australia/New Zealand/Taiwan/Brazil:
EC25-AU:
LTE FDD: B1/B2*/B3/B4/B5/B7/B8/B28
LTE TDD: B40
WCDMA: B1/B2/B5/B8
GSM: B2/B3/B5/B8
EC25-AUT:
LTE FDD: B1/B3/B5/B7/B28
WCDMA: B1/B5
EC25-AUTL:
LTE FDD: B3/87/828
Japan EC25-J
LTE FDD: B1/B3/B8/B18/B19/B26
LTE TDD: B41
WCDMA: B1/B6/B8/B19
GPS GSM GPRS Tracker Geo-fence Small Size Real Time with Car Alarm 4G GPS Tracker
Product Features:
1 Support global gsm850/900/1800/1900mhz, wcdma850/900/1900/2100 Mhz network frequency band;
2 Wide operating input voltage range: 9-80VDC;
3 GPS / LBS real-time positioning, support the computer to track the car, mobile search vehicles and wechat search vehicles;
4 Support SMS text query location information;
5 ACC ignition signal is detected, the vehicle prompted the state;
6 Built-in vibration sensor, to achieve intelligent vehicle anti-theft;
7 Able to set a specific number for SOS alarm and burglar alarm;
8 SOS switch button for emergency call for help;
9 Internal / external microphone and speakers, remote audio monitoring and voice intercom function (optional);
10 Built-in backup battery, to achieve illegal cutting wire alarm (optional);
11 Built-in OBD2 remote vehicle diagnostics management system (optional);
12 Platform supports up to 180 days historical route track;
13 Platform supports electronic fence, out of the regional alarm;
14 Platform supports deviate planning route alarm;
15 Platform supports overspeed alarm;
16 Platform supports serious collision warning (optional);
17 Platform Support rollover warning (optional);
18 Platform supports for report output;
19 Support WEB send arm and disarm command;
20 Support RFID auto-sensing arm and disarm (optional);
