Function: | GPS Anti Jammer Tracker,Cut-off Engine | Connection: | 3G/4G Sim Card, 2G Sim Card |
---|---|---|---|
Certification: | CE ISO | Use: | Automotive |
Weight: | 50g | Battery: | 200mAH |
Material: | Engineering Plastic | SIM Card: | 4G 3G 2G SIM Card |
High Light: | FDD LTE Vehicle GPS Tracker,ACC Detection Vehicle GPS Tracker,200mAH GPS Anti Jammer Tracker |

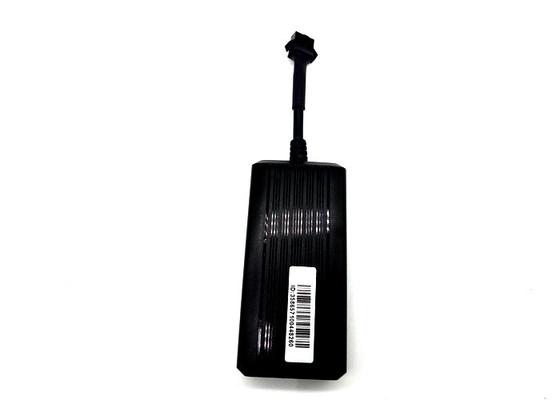

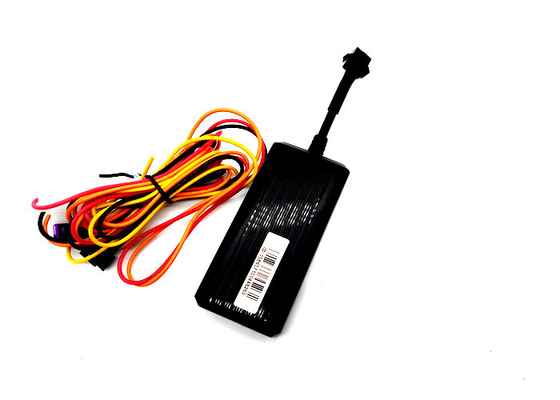

Mini 4G GPS tracker 4G Sim Card Car Vehicle GPS Tracker with Moving alarm Realy Optional
Product Paramenters
Content | Specs. |
Dim. | 90 mm x40 mm x 15 mm |
Weight | 50g |
Network | GSM/GPRS/GPS |
Band | FDD-LTE 800/850/900/1800/2100/2600MHz |
GPS chip | U-B |
GSM module | MTK6261 |
GPS accuracy | 10m |
GPS locating time | Cold start≈38s(Open sky) |
Warm start≈32s(Open sky) | |
Hot start≈2s(Open sky) | |
Work voltage | DC9V-100V |
Storage Temp. | -40°C to +85°C |
Humidity | 20%--80%RH |
Mini 4G GPS tracker 4G Sim Card Car Vehicle GPS Tracker with Moving alarm Realy Optional
Common Functions
Real-time tracking | GPS+BD+LBS triple positioning |
ACC detection | Cut off oil and power |
Electric fence | Historical track |
Call/SMS alarm | Vibration alarm |
Speeding alarm | Remove the alarm |
Remote listening (Optional microphone) |
SOS button (Optional SOS button) |
Mini 4G GPS tracker 4G Sim Card Car Vehicle GPS Tracker with Moving alarm Realy Optional
1.Real-time tracking.
When you need to know the location of the vehicle, you only need to open the web platform or log in to the APP and use the "View Location" function to view the detailed location of the vehicle. If the vehicle is driving, you can see where the vehicle is driving and detailed information.
2.GPS+BD+LBS triple positioning.
The equipment adopts GPS+Beidou+LBS triple positioning to make the positioning more accurate. When the satellite signal is relatively weak, it will automatically switch to LBS positioning so that the device will continue to update the location information.
3.ACC detection.
After listening to the ACC connection to judge whether the vehicle is started, if the vehicle starts, it will show that ACC is connected.It is often used for illegal start alarms.
ACC line,when the vehicle starts,the ACC line will generate voltage,the GPS tracker can detect the start of the car.
Vehicle start detection.
ACC line, when the vehicle starts, the ACC line will generate voltage, the GPS tracker can detect the start of the car.
In theory, when the vehicle is started, a certain wire on the vehicle changes from a non-electric state to an electric state, and the ACC wire can be connected to this wire.
The ACC line on the device is generally an orange line.
.Mini 4G GPS tracker 4G Sim Card Car Vehicle GPS Tracker with Moving alarm Realy Optional

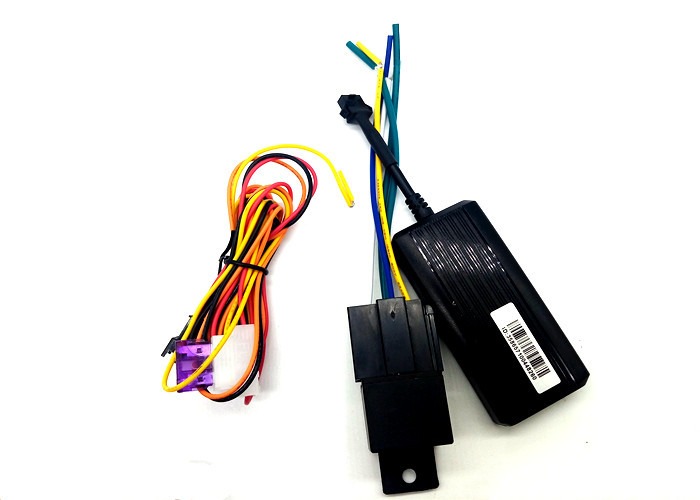

4.Cut off oil and power.
The GPS tracker achieves the purpose of disconnecting the oil route by controlling the relay closing-opening process.
The oil line is tut off and connected the relay in series.
The oil curcuit can be disconnected by controling the relay to close-open.
Disconnect the oil circuit.
The oil line is cut off and connected to the relay in series. The oil circuit can be disconnected by controlling the relay to close-open.
Of course, we have made a protection mechanism. In order to prevent danger to the vehicle by disconnecting the oil circuit when driving fast. We made the setting, and it will take effect only when the vehicle speed is lower than 30KM/H.
5.Remote listening(Optional microphone).
After binding the center number, you can remotely reach the voice of the device.
Remote listening
With a microphone, after binding the center number, you can remotely reach the voice of the device.Used for anti-theft.
6.SOS button(Optional SOS button)
The SOS button is generally used for fleet vehicle management.
SOS button
Connect the SOS button to the device, set the SOS number, and then notify the emergency contact person as soon as possible in an emergency.
