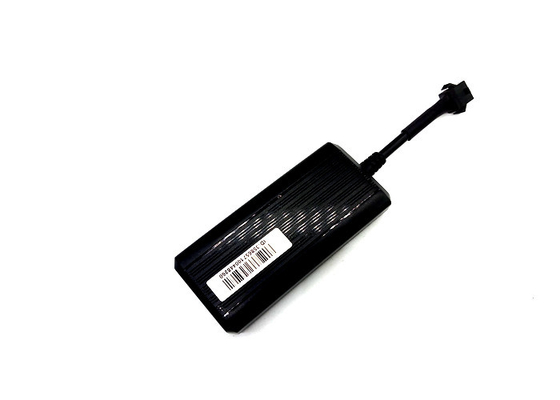

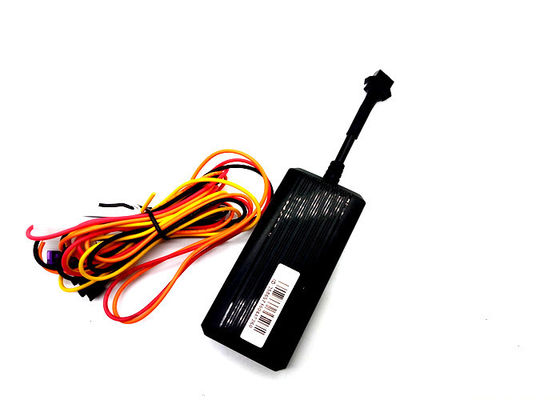

BD LBS Anti Lost 4G GPS Tracker 200mAH With Geo Fence
|
Product Details:
Payment & Shipping Terms:
|
Detailed Product Description
| Size: | 90（L）×40（W）×15（H）mm | Material: | Plastic |
|---|---|---|---|
| Location Mode: | GPS+BD+LBS | Battery: | 200mAH |
| Color: | Black | GPS Location Precision: | 5-10M |
| Place Of Origin: | Shenzhen China | Warranty: | 2 Years |
| High Light: | Anti Lost 4G GPS Tracker,BD LBS 4G GPS Tracker,200mAH E Bike GPS Tracker |
||
Mini Anti-lost 4G GPS Tracker Car Vehicle E-bike GPS Tracker with Geo-fence Cut off Power Fuel
Dvice parameter
| Electronic Character: | |
| Power Supply | built-in battery |
| Work Voltage | DC9-100V |
| Work Current | ≈22mA (12vDC) |
| Work Current | ≈12mA (24vDC) |
| Battery Capacity | 200mah |
| Environment Character: | |
| Work Temp: | -20℃～+70℃ |
| Storage Temp: | -30℃～+80℃ |
| Work Humidity: | 20%～80%RH |
| Communication Character | |
| Module Brand/Chip Module | MT6261 |
| Band: | B1/B3/B8B34/B38/B390/B40/B41/BC0 |
| SIM Card: | Standard SIM card |
| Aerial: | Internal |
| GPS/BD Positioning Character: | |
| Cold start | 38s(Open sky) |
| Warm start | 32s(Open sky) |
| Hot start | 2s(Open sky) |
| Shape | |
| Dimension | 90mm*40mm*15mm |
| Weight | 50g |
Mini Anti-lost 4G GPS Tracker Car Vehicle E-bike GPS Tracker with Geo-fence Cut off Power Fuel
Main Functions
| Remote cut-off (petrol/power) | Light and compact |
| Compel the vehicle to stop by breaking off the fuel connection | Small size allowing covert & easy mounting |
| ACC detection | GPS + LBS Positioning |
| Be aware of the ignition status where you need | Allow the location to be pinpointed in real time |
| Tracked by: SMS, APP, Web | voltage range:9-100V |
| Reports location in real time through different interfaces | Voltage adaptation up to 100v |
Real Time Tracking
More precise positioning,wider coerage,
More accurate location

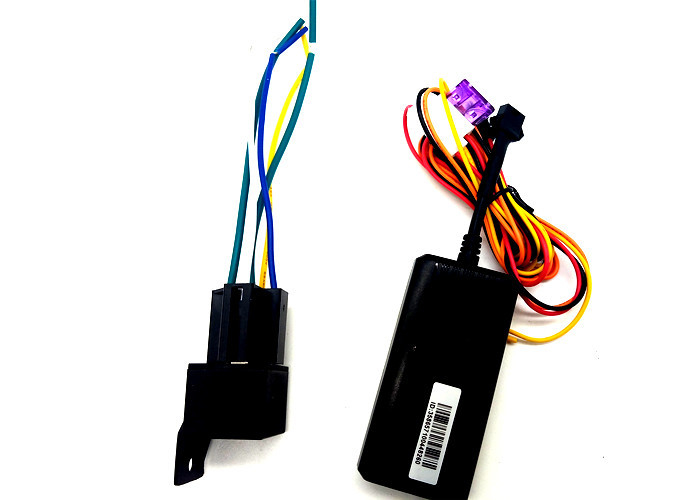

Cut and resume oil remotely
Cut off vehichle power or fule with relay
so as to stop vehicle in case of theft
History Route
User can playback vehicle past location details
Geo-fence
when vehicle move in or out preset geo-fence,there is instant alarm.
Mini Anti-lost 4G GPS Tracker Car Vehicle E-bike GPS Tracker with Geo-fence Cut off Power Fuel
1. Real-Time Positioning:
C003-01-4G model GPS Tracker Device will get the real-time position message and upload all status to the server system.
And will display the position on the map. you can click any of the points to know the name. locating time. and acc status. Speed
GPS Time, direction, and so on.
2. Vibration alarm:
After setting the command of vibration by SMS. When it moves there will be a vibration alarm message.
3. Power-off alarm:
If the power supply of GPS Tracker is cut off or GPS Tracker will send the alarm message to the server or bonded Phone number.
4. Remote Car Lock
If an illegal ignition alarm receives from GPS Tracker, you can remotely cut off the vehicle circuit, so that to avoid being driven away.
Mini Anti-lost 4G GPS Tracker Car Vehicle E-bike GPS Tracker with Geo-fence Cut off Power Fuel
Platform Application
The dealer platforms are different, please consult your dealer internet website
.1 Real-time monitoring, network / phone search vehicles
GPS + LBS dual-mode positioning, GPS positioning accuracy of 2 meters, when GPS has signal use GPS positioning, in a place with no GPS signal use LBS base station to locate, dual-mode automatic switching, let your GPS vehicle positioning terminal communication always online, make sure you monitoring 365 days x 24 hours always online.
Real-time phone monitoring: mobile login domain.
Real-time platform monitoring: computer login domain.
.2 Track Playback
Login platform, click on the historical track playback function.
.3 Statistics Report
Logistics companies can be set by the software to monitor the goods is notified of the departure time, route point, line alarm, warning area, heavy hit the alarm, rollover warning, driving speed, etc., we will comprehensive analysis of goods in transit situation and issue reports.
Login platform, click statistics report
.4 Windows, Android, Ipad, Iphone, Wechat client please go to auto download service platform, each client application please contact customer service.
