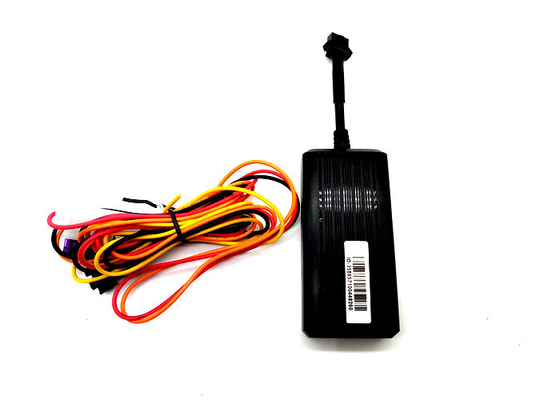

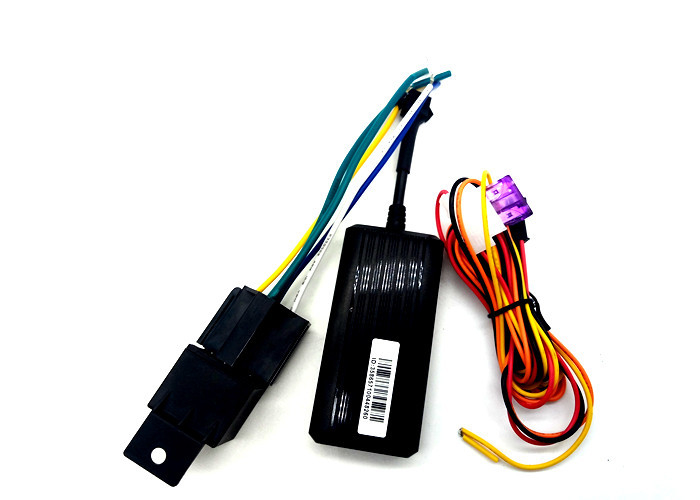

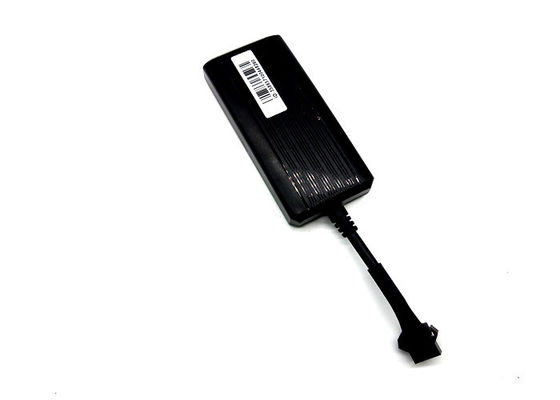

LTE FDD 10m Positioning 4G GPS Tracker 200mah Built In Battery

Large Image : LTE FDD 10m Positioning 4G GPS Tracker 200mah Built In Battery Get Best Price

Product Details:

Place of Origin:	China
Brand Name:	Cartracker
Certification:	CE ISO9000
Model Number:	C003-01-4G

Payment & Shipping Terms:

Minimum Order Quantity:	10pcs
Price:	negotiation
Packaging Details:	Packed in carton firstly
Delivery Time:	1-10 working days after received your payment
Payment Terms:	T/T or western Union or paypal
Supply Ability:	10,000pcs per month

Contact Now

Detailed Product Description

Placement:	Windshield, Instument Panel	Function:	Remote Control
Warranty:	2 Years	Place Of Origin:	Shenzhen China
GPS Positioning Accuracy:	5-10m	Size:	904015MM
Certification:	CE ISO	Connection:	3G/4G Sim Card, 2G Sim Card
High Light:	10m Positioning 4G GPS Tracker , LTE FDD 4G GPS Tracker , 200mah Wcdma Gps Tracker

2G 3G 4G GPS Tracker Small Mini GPS Tracker with Built-in Battery Built-in GPS Antenna

SMS Command list
NO.	Item	SMS Commands format	Remarks
1	Check Device Status	STATUS#
2	Check Device parameters	PARAM#
3	Check GPRS Parameters	GPRSSET#
4	Check Device Lat. And Log.	WHERE#
5	Set Server IP or Domain name	Set Server Domain name: SERVER,1,domain name,port,0# Set Server IP: SERVER,0,IP,Port,0# The last bit 0 stands for TCP
6	Check Server parameters	SERVER#
7	Reset Device	RESET#	The terminal will restart after 1 minutes
8	Add SOS Number	SOS,A, Number 1,Number 2,Number 3#
9	Del SOS Number	SOS,D,No. 1,No. 2,No. 3#
10	Check SOS Number	SOS#
11	Add Center number	CENTER,A,Number#	Only SMS NUMBER CAN SET CENTER NUMBER
12	Del Center number	CENTER,D#
13	GPS DATA upload time interval	TIMER,T1,T2# T1=0,5～18000seconds; ACC ON time interval T2=0,5～18000seconds ACC OFF time interval Example: TIMER,30,300#
14	Check time interval	TIMER#
15	Control Relay	RELAY,A# A=0/1 0 stands for on 1 stands for off Example: RELAY,0#

2G 3G 4G GPS Tracker Small Mini GPS Tracker with Built-in Battery Built-in GPS Antenna

Product Specification

Frequency	North America EC25-A EC25-V:LTE FDD: B2/B4/B12 WCDMA: B2/B4/B5 LTE FDD: B4/B13
Nerworks	4G/3G/2G
Battery	200mah
Operating Voltage	9-100v
Location time	Hot start≈2s(Open sky)
Location accuracy	5-10M
Operating temperature	-20℃～+70℃
Dimension	904015mm
Weight	0.05kg

Produce Description

GSM	GPRS
Geo-sensor	Input power
ACC	Ignition checking
Built-in battery	Cutt off power/fuel
Real time tracking	Over speed alarm
Relay supported	Platform /APP supported

2G 3G 4G GPS Tracker Small Mini GPS Tracker with Built-in Battery Built-in GPS Antenna

4G Bands in different countries:
Europe / Middle East / Africa / South Korea / Thailand
EC25-E:
LTE FDD: B1/B3/B5/B7/B8/B20
LTE TDD: B38/B40/B41
WCDMA: B1/B5/B8
GSM: B3/B8

North America
EC25-A:
LTE FDD: B2/B4/B12
WCDMA: B2/B4/B5
EC25-V:
LTE FDD: B4/B13

Australia/New Zealand/Taiwan/Brazil:
EC25-AU:
LTE FDD: B1/B2*/B3/B4/B5/B7/B8/B28
LTE TDD: B40
WCDMA: B1/B2/B5/B8
GSM: B2/B3/B5/B8
EC25-AUT:
LTE FDD: B1/B3/B5/B7/B28
WCDMA: B1/B5
EC25-AUTL:
LTE FDD: B3/87/828

Japan EC25-J
LTE FDD: B1/B3/B8/B18/B19/B26
LTE TDD: B41
WCDMA: B1/B6/B8/B19

LTE FDD 10m Positioning 4G GPS Tracker 200mah Built In Battery 0

2G 3G 4G GPS Tracker Small Mini GPS Tracker with Built-in Battery Built-in GPS Antenna

Product features:
Accurate positioning, accuracy up to 5 meters.
GPS+ beidou +LBS three-mode positioning.
Functions: ACC detection, remote power off, DC detection, power off alarm, overspeed alarm, language intercom, electronic fence, remote photography, etc.
Industrial design, working voltage 9V - 100V.
