Product Details:
Payment & Shipping Terms:
|
Placement: | Windshield, Instument Panel | Function: | Real Time Tracking |
---|---|---|---|
Certification: | CE ISO | Position Accuracy: | 5-10M |
Built-in Battery: | 200Mah | SIM Card: | 4G 3G 2G SIM Card |
Size: | 90*40*15MM | Protocol: | GT06 |
High Light: | GSM Vehicle Camera GPS Tracker,4G LTE Connectivity GPS Tracker |

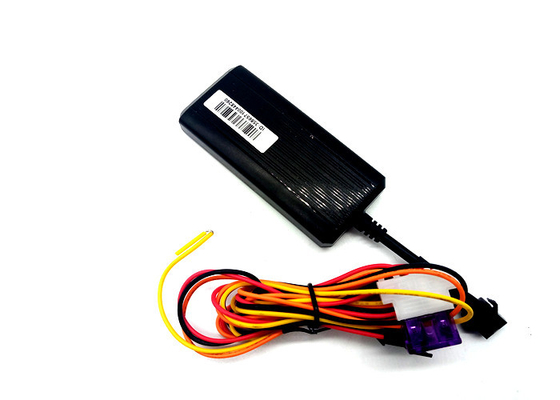

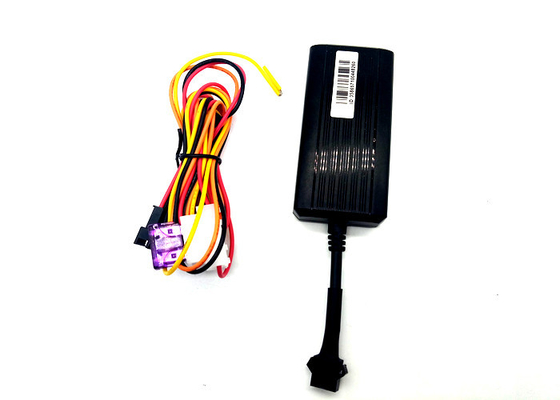

Mini 4G GPS Tracker Vibration Alarm Vehicle Car GPS Tracker Cut off Oil Engine Real Time
Description
GSM Frequency | GSM 850/900/1800/1900MHz |
Dimension | 90*40*15mm |
Weight | 50g |
Built-in Battery | 200mAh |
Colors | Black |
Operating Voltage | 9-36VDC |
Working mode | Normal mode |
Antenna | Built-in GPS and GSM antenna |
Location Accuracy | 10meters |
Location time | Hot start:≤2sec(open sky) Cold start:≤35sec(open sky) |
Operating Temperature | -20℃~70℃ |
Operating Humidity | 20%~80% |
Mini 4G GPS Tracker Vibration Alarm Vehicle Car GPS Tracker Cut off Oil Engine Real Time
Main Function
Remote cut-off (petrol/power) | Light and compact |
Compel the vehicle to stop by breaking off the fuel connection | Small size allowing covert & easy mounting |
ACC detection | GPS + LBS Positioning |
Be aware of the ignition status where you need | Allow the location to be pinpointed in real time |
Tracked by: SMS, APP, Web | voltage range:9-100V |
Reports location in real time through different interfaces | Voltage adaptation up to 100v |
4G Bands
Europe / Middle East / Africa / South Korea / Thailand EC25-E: |
LTE FDD: B1/B3/B5/B7/B8/B20 LTE TDD: B38/B40/B41 WCDMA: B1/B5/B8 GSM: B3/B8 |
North America EC25-A EC25-V |
LTE FDD: B2/B4/B12 WCDMA: B2/B4/B5 LTE FDD: B4/B13 |
Australia/New Zealand/Taiwan/Brazil EC25-AU |
LTE FDD: B1/B2*/B3/B4/B5/B7/B8/B28 LTE TDD: B40 WCDMA: B1/B2/B5/B8 GSM: B2/B3/B5/B8 |
Japan EC25-J |
LTE FDD: B1/B3/B8/B18/B19/B26 LTE TDD: B41 WCDMA: B1/B6/B8/B19 |
Mini 4G GPS Tracker Vibration Alarm Vehicle Car GPS Tracker Cut off Oil Engine Real Time
GPS functions
protocol: GT06 1)support ACC ignition checking
G-sensor : BS250E 2)support Relay for cutting off power/fuel
input power: 9-100V 3)built-in GPS antenna: 18*18*4 mm
power IC: SL3036H 4)built-in battery, Real time tracking
GSM module: MT6261 5)Geo-fence, over speed alarm,
GPS module: Ublox 6)platform /APP supported
Real Time Tracking
More precise positioning,wider coerage,
More accurate location

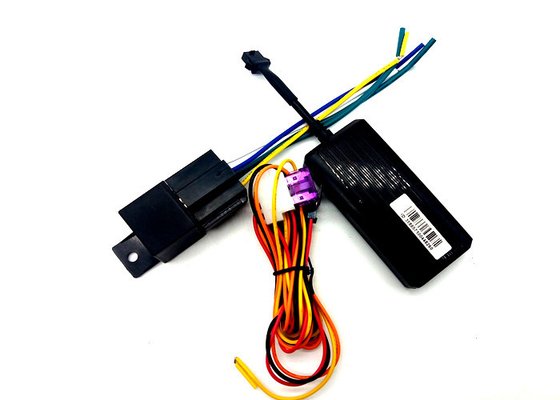

Cut and resume oil remotely
Cut off vehichle power or fule with relay
so as to stop vehicle in case of theft
History Route
User can playback vehicle past location details
Geo-fence
when vehicle move in or out preset geo-fence,there is instant alarm.
Mini 4G GPS Tracker Vibration Alarm Vehicle Car GPS Tracker Cut off Oil Engine Real Time
FAQ
Q1: What kind of SIM card do your devices support?
Re: It support global quad band(850/900/1800/1900) SIM card, 2G GSM network, and enable GPRS flow;
Q2: Can i build my own platform, and only use your device?
Re: Yes, of course, you can build your own plaftform, by our offering GPRS protocol, if you want our help to build a independent platform, it will cost technical fee, details you can contact us directly;
Q3: Can i make my own distributor account on your platform?
Re: Yes, you can, if you are a distributor or want to be a distributor, please share all your IMEIs of devices, and then we can
make a distributor account for you, Available to manage your devices.
Q4: Is there phone APP, support Android and IOS system?
Re: yes, you can download the latest app here, www.19gps.net,www.dyegoo.net and it support android and IOS, no Windows OS;
Q5: How about your platform cost?
Re: Free for lifetime;
