Product Details:
Payment & Shipping Terms:
|
Function: | Real Time Tracking | Place Of Origin: | Shenzhen China |
---|---|---|---|
Model Number: | C003-01-4G | Battery Capacity: | 200mAH |
FDD-LTE Frequency: | FDD-LTE 800/850/900/1800/2100/2600MHz | MOQ: | 1 Set |
Dimensions: | 90*40*15MM | Warranty: | 2 Years |
High Light: | GSM Vehicle Camera GPS Tracker,4G LTE Connectivity GPS Tracker |

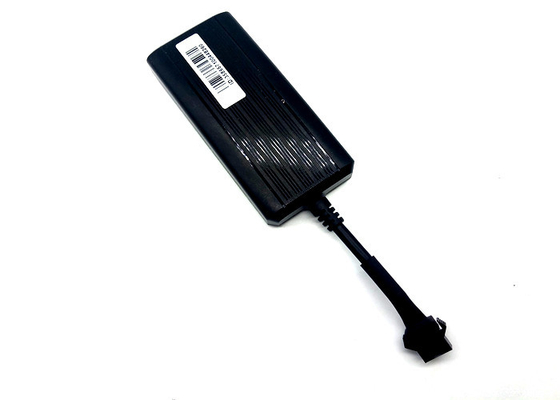

High Accuracy Rate C003-01-4G Anti-lost GPS Tracker Vibration Alert 4G GPS Tracker
Features
Working current | Average current ≈22mA (12vDC) maximum current <100mA (12VDC) |
Operating temperature | -20~+70℃ |
Material | Engineering plastics |
Weight | 50G |
Network | 4G LTE/3G WCDMA /2G GSM |
Dim. | 90*40*15mm |
Storage Temp. | -40°C to +85°C |
Accuracy | 5-20m |
Operation Temp. | -20°C to +55°C |
Humidity | 20%--80% non-condensing |
Working Voltage | 9-100V |
CPU | MTK6261 |
High Accuracy Rate C003-01-4G Anti-lost GPS Tracker Vibration Alert 4G GPS Tracker
Descriptions
Parameter | |
Size | 90(L)×40(W)×15(H)mm |
Working temperature | -20℃~+70℃ |
Working Voltage | DC9-100V |
Weight | 50g |
Built-in Battery | 200MAH |
Hardware Specification | |
Location Accouracy | 10M |
GPS Chip | MT6261 |
FDD-LTE Frequency | 800/850/900/1800/2100/2600MHz |
GPS antenna | Built-in,18*18*4 mm |
GPRS | Class12 TCP/IP |
Software Specification | |
ACC Detection | support |
GEO-fence | support |
Cut power | support |
Vibration | support |
Movement | support |
High Accuracy Rate C003-01-4G Anti-lost GPS Tracker Vibration Alert 4G GPS Tracker
Device status indicators
1 Connect DC 9-100V power supply and the red LED will light continuously.
The red LED is the power signal,
it is always on when the external DC is connected.
2 The blue LED is the GSM signal indicator.
It is always on when there is no GSM
it flashes when GSM is normal;
it flashes quickly when transmitting data.
3 The yellow LED is the GPS signal indicator:
it is always on when there is no positioning;
it flashes after positioning.
Preparation for the installation
1 Product Check. Open the packing box and check the device‘s model and accessories. If the model is wrong or the accessories not complete, please contact the dealer.
2 Choose SIM card. Please insert a SIM card to the device. Please take dealer’s advice as reference.
3 SIM card installation. Discharge the cover of the device and uncover the SIM card holder. Then insert the SIM card and cover SIM card holder.
4 Put back the front cover and screw it up.
5 Connect the device to the 9-100Vpower supply.(the red LED constant glow)
6 Install the device in the hidden place of the car;
The SIM card must be with GPRS function and enough deposit. If your SIM card need input PIN when power on, please cancel it.
High Accuracy Rate C003-01-4G Anti-lost GPS Tracker Vibration Alert 4G GPS Tracker
Our services:
1.Reply Time: All inquiries will be answered within 24 hours.
2. Payment Times: We accept payment by T/T or western Union or paypal.
3. Shipment Times: All orders can be shipped out within 1-3 working days normally. Once the order is shipped out, we will send an email to you include the track number and the package photos.
4. MOQ Limitation: No MOQ limit, 1 pc for sample checking is available.
