Product Details:
Payment & Shipping Terms:
|
Placement: | Portbale | Function: | Real Time Tracking |
---|---|---|---|
Connection: | 3G/4G Sim Card, 2G Sim Card | Place Of Origin: | Shenzhen China |
Model Number: | C003-01-4G GPS TRACKER | Weight: | 50g |
Certificate: | ISO9000 CE | Warranty: | 2 Years |
High Light: | GSM Vehicle Camera GPS Tracker,4G LTE Connectivity GPS Tracker |

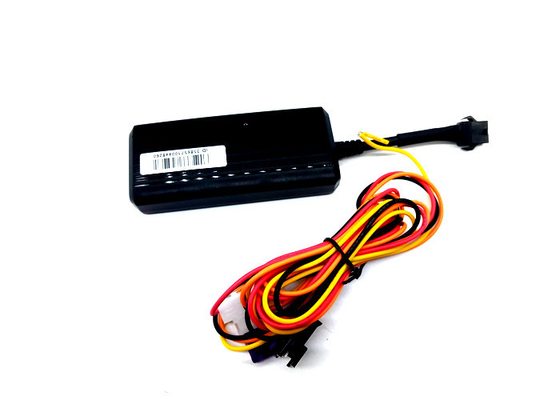

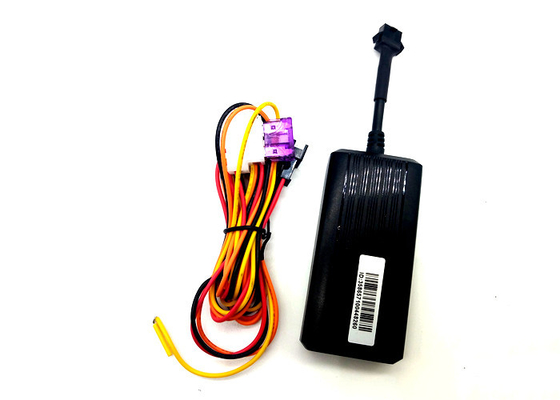

C003-01-4G Model 4G GPS Tracker For Vehicle Car Motorcycle Free Cost App Platform
Description
GSM Frequency | GSM 850/900/1800/1900MHz |
Dimension | 90*40*15mm |
Weight | 50g |
Built-in Battery | 200mAh |
Colors | Black |
Operating Voltage | 9-36VDC |
Working mode | Normal mode |
Antenna | Built-in GPS and GSM antenna |
Location Accuracy | 10meters |
Location time | Hot start:≤2sec(open sky) Cold start:≤35sec(open sky) |
Operating Temperature | -20℃~70℃ |
Operating Humidity | 20%~80% |
C003-01-4G Model 4G GPS Tracker For Vehicle Car Motorcycle Free Cost App Platform
Parameter
Place of Origin | Shenzhen China |
Network | GSM/GPRS 850/900/1800/1900MHz |
Certificate | CE ISO9000 |
Warranty | 2years |
Function | 4G GPS Tracking |
Battery | 200mAH |
Operation System | Andorid IOS |
GPRS | Class12, TCP/IP |
Functions
Remote cut-off (petrol/power) | Light and compact |
Compel the vehicle to stop by breaking off the fuel connection | Small size allowing covert & easy mounting |
ACC detection | GPS + LBS Positioning |
Be aware of the ignition status where you need | Allow the location to be pinpointed in real time |
Tracked by: SMS, APP, Web | voltage range:9-100V |
Reports location in real time through different interfaces | Voltage adaptation up to 100v |
C003-01-4G Model 4G GPS Tracker For Vehicle Car Motorcycle Free Cost App Platform
Main components
GPS functions:
protocol: GT06 1)support ACC ignition checking ,

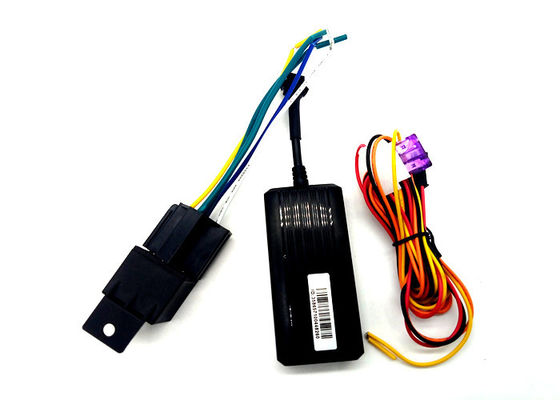

G-sensor : BS250E 2)support Relay for cutting off power/fuel
input power: 9-100V 3)built-in GPS antenna: 18*18*4 mm
power IC: SL3036H 4)built-in battery, Real time tracking.
GSM module: MT6261 5)Geo-fence, over speed alarm,
GPS module: Ublox 6)platform /APP supported
1. Real-Time Positioning:
C003-01-4G model GPS Tracker Device will get the real-time position message and upload all status to the server system.
And will display the position on the map. you can click any of the points to know the name. locating time. and acc status. Speed
GPS Time, direction, and so on.
2. Vibration alarm:
After setting the command of vibration by SMS. When it moves there will be a vibration alarm message.
3. Power-off alarm:
If the power supply of GPS Tracker is cut off or GPS Tracker will send the alarm message to the server or bonded Phone number.
4. Remote Car Lock
If an illegal ignition alarm receives from GPS Tracker, you can remotely cut off the vehicle circuit, so that to avoid being driven away.
C003-01-4G Model 4G GPS Tracker For Vehicle Car Motorcycle Free Cost App Platform
Device wiring requirements
1 The device power supply is DC 9-100V. The red line is positive pole while the black line is negative pole.
2 The negative pole of power supply connects with ground or the metals. Please do not connect with other ground lines.
3 When finishing the power supply wire connection, please make the plug of power supply to the device
Any issue please contact the local distributors.
