Vehicle Car Motorcycle SMS GPS Tracker with GPS+LBS Positioning Device Anti lost 4G GPS Tracker
|
Product Details:
Payment & Shipping Terms:
|
Detailed Product Description
| Function: | Real Time Tracking | Brand Name: | C003-01-4G 4G GPS TRACKER |
|---|---|---|---|
| Network: | 4G Full Network | Size: | 90*40*15MM |
| Certificate: | ISO CE | Battery: | Built-in 200mAh |
| Connection: | 3G/4G Sim Card, 2G Sim Card | OS: | Andorid/IOS |
| High Light: | GSM Vehicle Camera GPS Tracker,4G LTE Connectivity GPS Tracker |
||

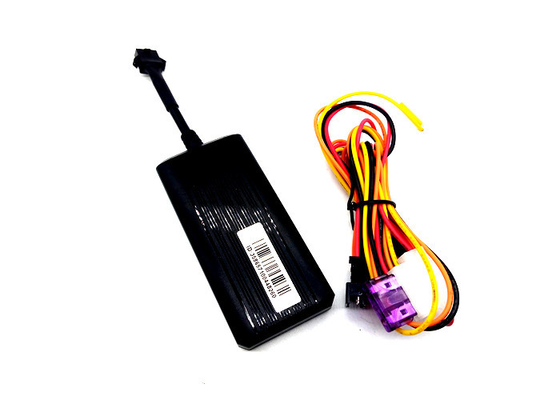

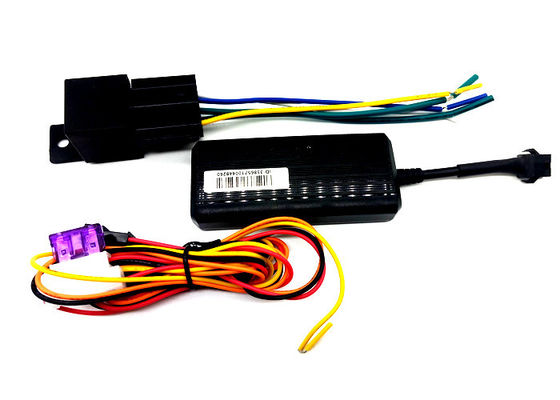

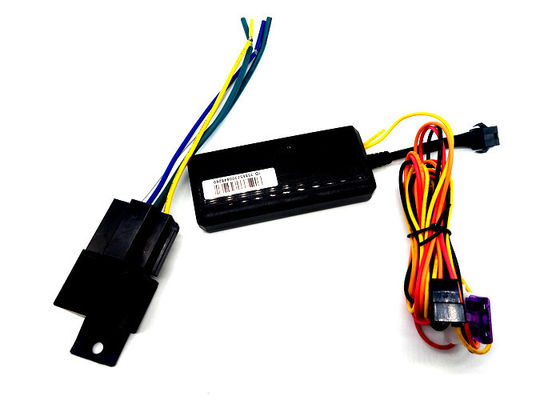

Vehicle Car Motorcycle SMS GPS Tracker with GPS+LBS Positioning Device Anti lost 4G GPS Tracker
Main Feature:
| * 4G 3G 2G bands |
| * Built-in acceleration sensor for vibration alarm and power saving |
| * Built-in battery, power disconnection alarm function |
| * Super wide working voltage input range: 9-100V |
| * The ACC ignition signal detection, vehicle status indicators |
| * SMS Arm / Disarm |
| * Watchdog function, reboot automatically after breakdown |
| * Suitable for Vehicles/Cars/Motorcycles/E-bike etc |
| * SOS ,microphone ,Relay is optional |
Vehicle Car Motorcycle SMS GPS Tracker with GPS+LBS Positioning Device Anti lost 4G GPS Tracker
Equipment parameters:
| Electric Speicifications |
| Power supply mode: Battery power supply |
| Working voltage range: DC 9V - 100V |
| Working current: 12mA (24vDC) |
| Built-in battery capacity: 200mAH |
| Environmental Features |
| Working temperature range -20℃ - 70℃ |
| Storage temperature range, low - 30 ℃ -80 ℃ |
| Working humidity range - 20%-80%RH |
| Communication frequency band | |
| LTE | FDD-LTE :B1/B3 |
| TDD-LTE :B38/ B39/ B40/ B41 | |
| 3G | WCDMA:B1 |
| TD-SCDMA:B34/B39 | |
| EVDO/CDMA2000 1x :BC0 | |
| GSM/EDGE | B3/B8 |
| Communication antenna - built-in antenna | |
| GPS/LBS Positioning Characteristics |
| Cold start time - average 34 seconds |
| Hot start time - average 2 second |
| Sensitivity (tracking) -162DBM |
| Positioning antenna - built-in antenna |
Vehicle Car Motorcycle SMS GPS Tracker with GPS+LBS Positioning Device Anti lost 4G GPS Tracker
Produce Description
| GSM | GPRS |
| Geo-sensor | Input power |
| ACC | Ignition checking |
| Built-in battery | Cutt off power/fuel |
| Real time tracking | Over speed alarm |
| Relay supported | Platform /APP supported |
LIGHT & Function
| Red LED | Connect DC 9-100V power supply and will light continuously. |
| The red LED is the power signal, | |
| It is always on when the external DC is connected. | |
| Blue LED | It is he GSM signal indicator. |
| It is always on when there is no GSM; | |
| It flashes when GSM is normal; | |
| It flashes quickly when transmitting data. | |
| Yellow LED | It is the GPS signal indicator: |
| It is always on when there is no positioning; | |
| It flashes after positioning. |
Vehicle Car Motorcycle SMS GPS Tracker with GPS+LBS Positioning Device Anti lost 4G GPS Tracker
Q1:How can I get more information about your product?
A1:You can send us an email or ask our online representatives and we can send you the latest catalog and price list.
Q2:What is the payment way of your company?
A3:T/T or western Union or paypal
Q3:What is the shipping way?
A4:By sea,air,Fedex,DHL,UPS,TNT etc.
Q4:How long for manufacturing once we place order?
A5:It's about 5-10 days after payment or disposit.
