Mini Smart GPS Tracker Real time Vehicle Car GSM/GPRS/GPS Tracker Tracking Device
|
Product Details:
Payment & Shipping Terms:
|
Detailed Product Description
| Warranty: | 2 Years | Type: | 4G GPS Tracker |
|---|---|---|---|
| Function: | Real Time Tracking | Place Of Origin:: | Shenzhen China |
| Battery: | Built-in 200mAh | GPS Accuracy:: | 5-10m |
| Certificate: | ISO9000 CE | Model No:: | C003-01-4G |
| High Light: | Geo Fence 4G GPS Tracker,FCC 4G GPS Tracker,GPS LBS Diagnostic Code Reader |
||

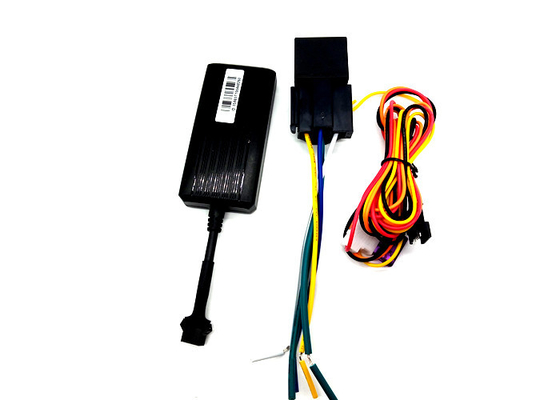

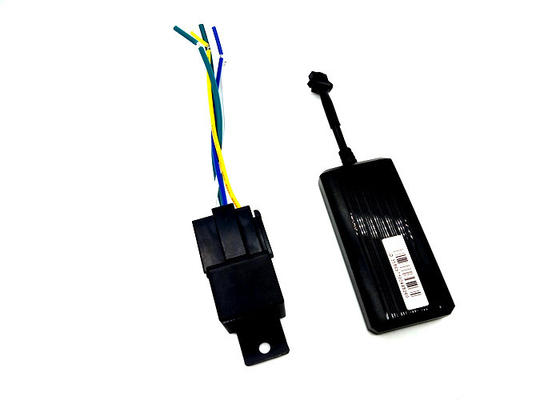

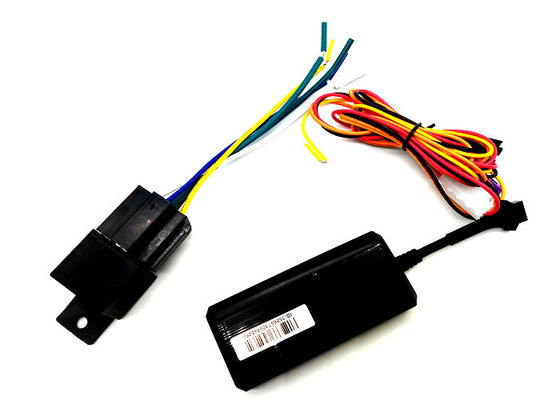

Mini Smart GPS Tracker Real time Vehicle Car GSM/GPRS/GPS Tracker Tracking Device
Product Description
Description:
| Model | C003-01-4G |
| Dimension | 90mm*40mm*15mm |
| Weight | 50g |
| Backup battery | 200mAh |
| Charging voltage | 9-100V DC |
| OperatingTemperature | -20°C to +70°C for working |
| -40°C to +80°C for storage |
Hardware
| Sensor | vibration sensor |
GPS
| GPS chipset | Ublox |
| Support | GPS |
| Cold start | approx 38s |
| Warm start | approx 32s |
| Hot start | approx 2s |
| Antenna | Built-in GPS antenna |
Mini Smart GPS Tracker Real time Vehicle Car GSM/GPRS/GPS Tracker Tracking Device
Main Features :
1. Quick and Easy installation: Through clever design and innovation, Mini GPS couled be hided in panel.
2. Real Time Tracking
3. Smart Geo fencing: Define a safe zone in the APP/WEB and you are ready to receive an alarm
4. Location history:supports up to 180 days historical route track;
5. APP+WEB monitoring service: Just open up the APP/WEB and watch its movements in real time.
Description:
| GPRS: | Class12, TCP/IP |
| Working Voltage | 9-100V DC |
| Working current: | ≈22mA (12vDC) |
| Working current: | ≈12mA (24vDC) |
| GPS locating time: | Cold start≈38s(Open sky) Warm start≈32s Hot start≈2s(Open sky) |
| GPS Precision: | 10m(2D RM) |
| Working temperature: | *-20℃～+70℃ |
| Working humidity: | 20%～80%RH |
| Measurement: | 90(L)×40(W)×15(H)mm |
Mini Smart GPS Tracker Real time Vehicle Car GSM/GPRS/GPS Tracker Tracking Device
Specification
| Detail | |
| Operating voltage | DC9-90V |
| Operating current | 22mA@12V |
| Specifications | L90mm*W40mm*H15mm |
| Positioning mode | GPS, LBS and positioning |
| Positioning error | < 10 m |
| Support WCDMA | Yes |
| Communication | TCP |
| Operating temperature range | -20℃～+70℃ |
| Storage temperature range | -40℃~+85℃ |
| weight | 50g |
| Main function | |
| 1. Remote power off function | |
| 2. Real-time positioning function | |
| 3. Anti-theft alarm | |
| 4. Track playback function | |
| 5. Vibration alarm | |
| 6. Overspeed alarm | |
| 7. Electronic fence function | |
Mini smart gps tracker Real time Vehicle Car GSM/GPRS/GPS Tracker Tracking Device
Installition
Terminal installation is concealed installation, hidden installation recommendations terminal equipment designated by the distributor of professional and technical personnel to install,
Q1: What kind of SIM card do your devices support?
Re: It support global quad band(850/900/1800/1900) SIM card, 2G GSM network, and enable GPRS flow;
Q2: Can i build my own platform, and only use your device?
Re: Yes, of course, you can build your own plaftform, by our offering GPRS protocol, if you want our help to build a independent platform, it will cost technical fee, details you can contact us directly;
Q3: Can i make my own distributor account on your platform?
Re: Yes, you can, if you are a distributor or want to be a distributor, please share all your IMEIs of devices, and then we can
make a distributor account for you, Available to manage your devices.
Q4: Is there phone APP, support Android and IOS system?
Re: yes, you can download the latest app here, www.19gps.net,www.dyegoo.net and it support android and IOS, no Windows OS;
Q5: How about your platform cost?
Re: Free for lifetime;
What is your cell phone number?
My mobile phone number / WhatsApp is +8613717161241. Wechat is 008613717161241
