Product Details:
Payment & Shipping Terms:
|
Warranty: | 2 Years | Place Of Origin:: | Shenzhen China |
---|---|---|---|
Model Number:: | C003-01-4G | Working Voltage:: | DC9-100V |
Storage Temperature:: | -40℃~+85℃ | Main Chip:: | MT6261 |
Tracking Sensitivity:: | -160dbm | Use: | Automotive |
High Light: | Geo Fence 4G GPS Tracker,FCC 4G GPS Tracker,GPS LBS Diagnostic Code Reader |

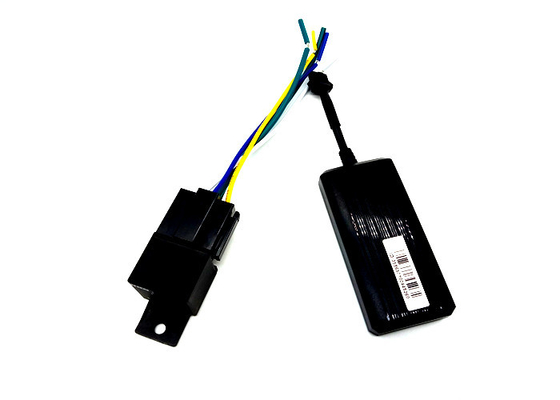

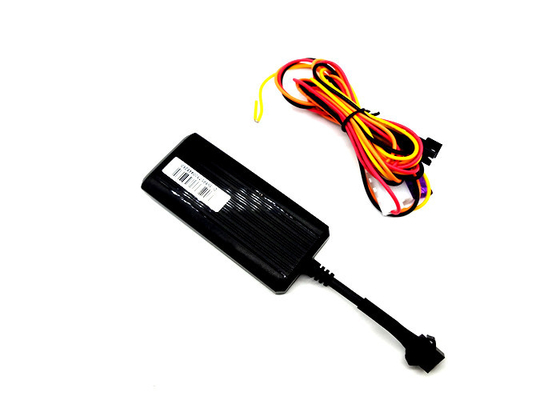

Vehicle 4G GPRS Tracking Real Time Positioning Device Car Motorcycle E-bike GPS Tracker
Specification
Working voltage
|
DC 9~40 V
|
Working temperature
|
-20℃~+70℃
|
Storage temperature
|
-40℃~+85℃
|
Working humidity
|
20%~80%RH
|
Main Chip
|
MT 6261
|
GPRS Module
|
MTK high sensitivity chip
|
Tracking sensitivity
|
-160dbm
|
Location accuracy
|
<10m
|
GSM frequency
|
2G:GSM 850MHz,900MHz,1800MHz,1900MHz
3G WCDMA 2100/1900/900/850MHz 4G:FDD-LTE 800/850/900/1800/2100/2600MHz |
Device weight
|
50g
|
Device dimension
|
90mm*40mm*15mm
|

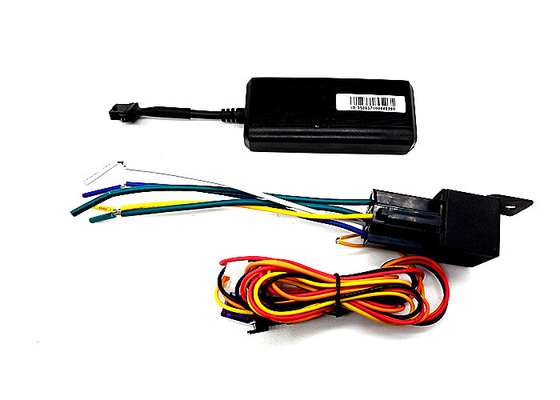

Accessories:
Red&black cable for power
Orange cable for ACC/ignition
Yellow cable for Relay
Vehicle 4G GPRS Tracking Real Time Positioning Device Car Motorcycle E-bike GPS Tracker
Application:
Widly used for Rental vehicles, credit vehicles, passenger vehicles, taxis, freight vehicles and so on.
Equipment parameters:
Electric Speicifications |
Power supply mode: Battery power supply |
Working voltage range: DC 9V - 100V |
Working current: 12mA (24vDC) |
Built-in battery capacity: 200mAH |
Environmental Features |
Working temperature range -20℃ - 70℃ |
Storage temperature range, low - 30 ℃ -80 ℃ |
Working humidity range - 20%-80%RH |
Communication frequency band - | |
LTE | FDD-LTE :B1/B3 |
TDD-LTE :B38/ B39/ B40/ B41 | |
3G | WCDMA:B1 |
TD-SCDMA:B34/B39 | |
EVDO/CDMA2000 1x :BC0 | |
GSM/EDGE | B3/B8 |
Communication antenna - built-in antenna |
GPS/LBS Positioning Characteristics |
Cold start time - average 34 seconds |
Hot start time - average 2 second |
Sensitivity (tracking) -162DBM |
Positioning antenna - built-in antenna |
Vehicle 4G GPRS Tracking Real Time Positioning Device Car Motorcycle E-bike GPS Tracker
4G Bands in different countries:
Europe / Middle East / Africa / South Korea / Thailand
EC25-E:
LTE FDD: B1/B3/B5/B7/B8/B20
LTE TDD: B38/B40/B41
WCDMA: B1/B5/B8
GSM: B3/B8
North America
EC25-A:
LTE FDD: B2/B4/B12
WCDMA: B2/B4/B5
EC25-V:
LTE FDD: B4/B13
Australia/New Zealand/Taiwan/Brazil:
EC25-AU:
LTE FDD: B1/B2*/B3/B4/B5/B7/B8/B28
LTE TDD: B40
WCDMA: B1/B2/B5/B8
GSM: B2/B3/B5/B8
EC25-AUT:
LTE FDD: B1/B3/B5/B7/B28
WCDMA: B1/B5
EC25-AUTL:
LTE FDD: B3/87/828
Japan EC25-J
LTE FDD: B1/B3/B8/B18/B19/B26
LTE TDD: B41
WCDMA: B1/B6/B8/B19
Vehicle 4G GPRS Tracking Real Time Positioning Device Car Motorcycle E-bike GPS Tracker
In particular that:
1. Any technical changes to the product in the future without prior notice.
2. Any changes of appearance, color of products, to prevail in kind.
3. The warranty card is only available in the following listed IMEI / ID Number warranty
Services.
4. Please keep this service card, please show this card and the original purchase receipt
for warranty.
5. See the table below illustrate specific warranty.
This card is a basic warranty certificate, user please fill out the card and keep it.
