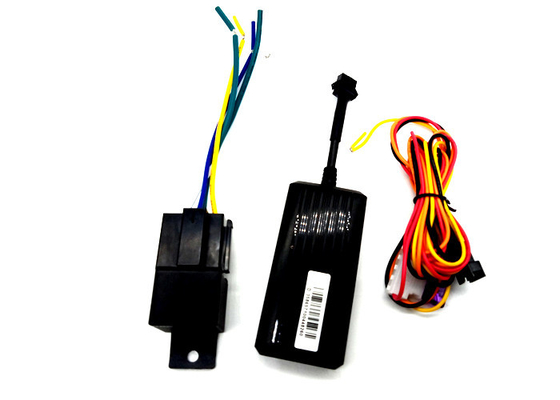

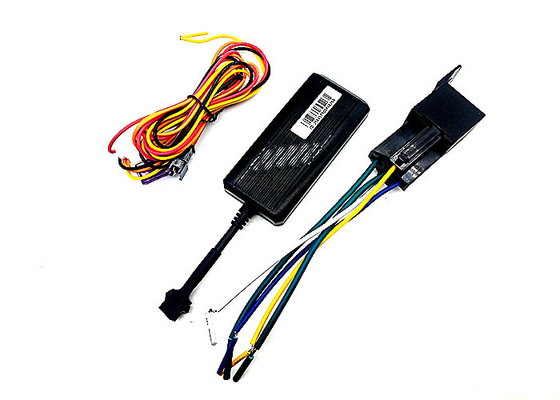

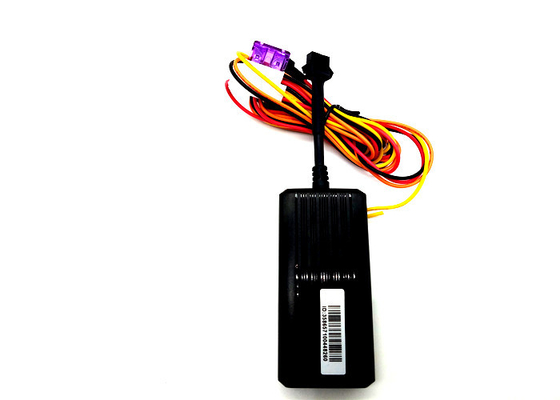

Support Relay for cutting off power fuel 4G GPS Tracker with Free Platform APP Car Vehicle
|
Product Details:
Payment & Shipping Terms:
|
Detailed Product Description
| Placement: | Car Motorcycle And Truck | Function: | Geo-fence |
|---|---|---|---|
| Warranty: | 2 Years | Product Model: | C003-01-4G 4G GPS Tracker |
| Battery: | Built-in 200mAh | Operating Temperature:: | -20℃-70℃ |
| Connection: | 3G/4G Sim Card, 2G Sim Card | DIM: | 90*40*15mm |
| High Light: | Geo Fence 4G GPS Tracker,FCC 4G GPS Tracker,GPS LBS Diagnostic Code Reader |
||
Support Relay for cutting off power fuel 4G GPS Tracker with Free Platform APP Car Vehicle
| 4G Band | |
| Europe / Middle East / Africa / South Korea / Thailand EC25-E: |
LTE FDD: B1/B3/B5/B7/B8/B20 LTE TDD: B38/B40/B41 WCDMA: B1/B5/B8 GSM: B3/B8 |
| North America EC25-A EC25-V |
LTE FDD: B2/B4/B12 WCDMA: B2/B4/B5 LTE FDD: B4/B13 |
| Australia/New Zealand/Taiwan/Brazil EC25-AU |
LTE FDD: B1/B2*/B3/B4/B5/B7/B8/B28 LTE TDD: B40 WCDMA: B1/B2/B5/B8 GSM: B2/B3/B5/B8 |
| Japan EC25-J |
LTE FDD: B1/B3/B8/B18/B19/B26 LTE TDD: B41 WCDMA: B1/B6/B8/B19 |
Frequency:
2G:GSM 850MHz,900MHz,1800MHz,1900MHz
3G WCDMA 2100/1900/900/850MHz
4G:FDD-LTE 800/850/900/1800/2100/2600MHz
Support Relay for cutting off power fuel 4G GPS Tracker with Free Platform APP Car Vehicle
Parameter:
| Content | Specs. |
| Dim. | 90 mm x40 mm x 15 mm |
| Weight | 50g |
| Network | GSM/GPRS/GPS |
| Band | FDD-LTE 800/850/900/1800/2100/2600MHz |
| GPS chip | U-B |
| GSM module | MTK6261 |
| GPS accuracy | 10m |
| GPS locating time | Cold start≈38s(Open sky) |
| Warm start≈32s(Open sky) | |
| Hot start≈2s(Open sky) | |
| Work voltage | DC9V-100V |
| Storage Temp. | -40°C to +85°C |
| Humidity | 20%--80%RH |
Functions:
| Remote cut-off (petrol/power) | Light and compact |
| Compel the vehicle to stop by breaking off the fuel connection | Small size allowing covert & easy mounting |
| ACC detection | GPS + LBS Positioning |
| Be aware of the ignition status where you need | Allow the location to be pinpointed in real time |
| Tracked by: SMS, APP, Web | voltage range:9-100V |
| Reports location in real time through different interfaces | Voltage adaptation up to 100v |
Support Relay for cutting off power fuel 4G GPS Tracker with Free Platform APP Car Vehicle
Device status indicators
1. Connect DC 9-100V power supply and the red LED will light continuously.
The red LED is the power signal,
it is always on when the external DC is connected.
2. The blue LED is the GSM signal indicator.
It is always on when there is no GSM.
it flashes when GSM is normal;
it flashes quickly when transmitting data.
3. The yellow LED is the GPS signal indicator:
it is always on when there is no positioning;
it flashes after positioning.
Installation for SIM of device
Preparation for the installation
1 Product Check. Open the packing box and check the device‘s model and accessories. If the model is wrong or the accessories not complete, please contact the dealer.
2 Choose SIM card. Please insert a SIM card to the device. Please take dealer’s advice as reference.
3 SIM card installation. Discharge the cover of the device and uncover the SIM card holder. Then insert the SIM card and cover SIM card holder.
4 Put back the front cover and screw it up.
5 Connect the device to the 9-100Vpower supply.(the red LED constant glow)
6 Install the device in the hidden place of the car；
Support Relay for cutting off power fuel 4G GPS Tracker with Free Platform APP Car Vehicle
Q1: What kind of SIM card do your devices support?
Re: It support global quad band(850/900/1800/1900) SIM card, 2G GSM network, and enable GPRS flow;
Q2: Can i build my own platform, and only use your device?
Re: Yes, of course, you can build your own plaftform, by our offering GPRS protocol, if you want our help to build a independent platform, it will cost technical fee, details you can contact us directly;
Q3: Can i make my own distributor account on your platform?
Re: Yes, you can, if you are a distributor or want to be a distributor, please share all your IMEIs of devices, and then we can
make a distributor account for you, Available to manage your devices.
Q4: Is there phone APP, support Android and IOS system?
Re: yes, you can download the latest app here, www.19gps.net,www.dyegoo.net and it support android and IOS, no Windows OS;
Q5: How about your platform cost?
Re: Free for lifetime;
