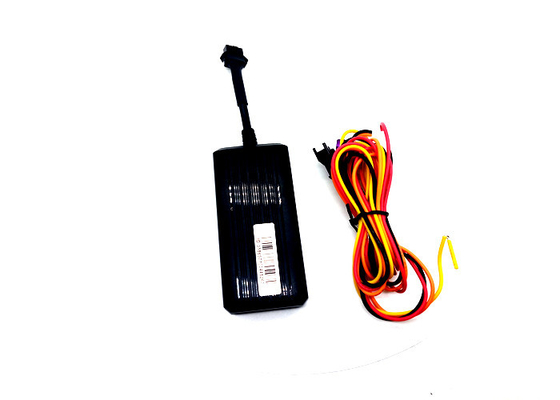

Mini 4G GPS Tracking Device For Vechile Anti-Theft Supported Platform Over Speed Alarm GPS Tracker
|
Product Details:
Payment & Shipping Terms:
|
Detailed Product Description
| Function: | Speed Warning | Connection: | 4G/3G Sim Card |
|---|---|---|---|
| Certification: | CE ISO | Working Voltage: | DC9-100V |
| Item Size:: | 90*40*15mm | APP: | IOS Android |
| Accuracy: | 5m | Placement: | Windshield |
| High Light: | 4G LTE Vehicle GPS Tracker,ACC Input Detection GPS Tracker,LBS Positioning GPS Tracking Device |
||
Mini 4G GPS Tracking Device For Vechile Anti-Theft Supported Platform Over Speed Alarm GPS Tracker
Fearture
| Vandalism | Support anti-counterfeiting base station, anti-detection function |
| Working current | Average current <30mA (12VDC), maximum current <100mA (12VDC) |
| Operating temperature | -20~+70℃ |
| Material | Engineering plastics |
| Weight | 50G |
| Network | 4G LTE/3G/2G |
| Dim. | 90*40*15mm |
| Storage Temp. | -40°C to +85°C |
| Accuracy | 5-20m |
| Operation Temp. | -20°C to +55°C |
| Humidity | 5%--95% non-condensing |
| Working Voltage | 9-80V |
| CPU | MTK6261 |
The tracker is 4G GPS Tracking device.
NETWORK SUPPORT:
4G: LTE,FDD
2G:GSM
Positioning method:GPS/LBS
C003-01-4G is a compact GPS tracker which integrates LTE/WCDMA/GSM module, high-precision GPS module.
C003-01-4G support wide operating voltage up to 100V.
Mini 4G GPS Tracking Device For Vechile Anti-Theft Supported Platform Over Speed Alarm GPS Tracker
Product performance description
Function Description
Real Time Tracking
GPS tracker offers real-time tracking and 30 days of tracking history. Track from any smart intellectual Product such as a computer, tablet, phone, etc. Support platform lifetime. Just login or download APP, track any location anywhere and anytime. The car GPS tracker for vehicle work in almost every country in the world.
Remote Control
Control a relay switch
SMS setting
You can set the IP (or domain name), port number, APN, local number, working mode,etc.
Power cut alarm
When the external power supply is cut off, the power cut alarm will be reported.
Low power alarm
When the vehicle power supply is detected to be low, an alarm will be reported. The default is 11V.
Vibration alarm
ACC OFF status, when the vehicle vibration is
detected, the vibration alarm will be reported.
Speed alarm
When the vehicle speeding,default 120km/h
You can set the IP (or domain name), port number, APN, local number, working mode,etc.
Power cut alarm
When the external power supply is cut off, the power cut alarm will be reported.
Low power alarm
When the vehicle power supply is detected to be low, an alarm will be reported. The default is 11V.
Vibration alarm
ACC OFF status, when the vehicle vibration is
detected, the vibration alarm will be reported.
Speed alarm
When the vehicle speeding,default 120km/h

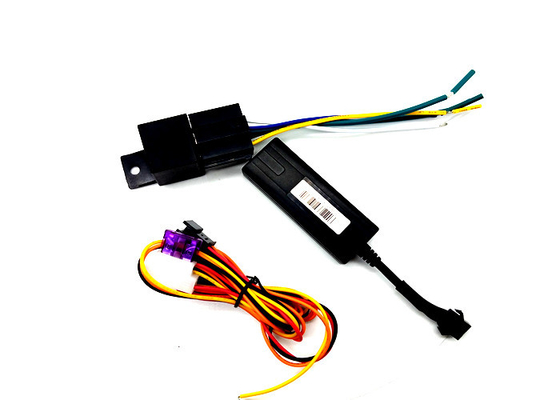

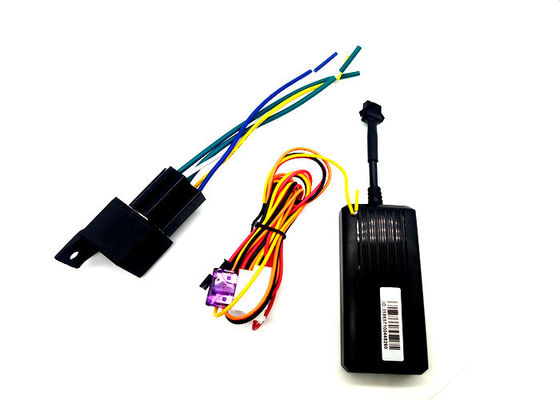

Cables
Red＆black cable for power
Orange cable for ACC/ignition
Yellow cable for Relay
.Mini 4G GPS Tracking Device For Vechile Anti-Theft Supported Platform Over Speed Alarm GPS Tracker
Red light - Power Indicator / OBD Work Lights
| LED Status | Meaning |
| Flash once in 2 seconds | Normal operation / OBD working properly |
| No light | Shutdown / OBD sleep |
Yellow indicator light -GSM
| LED Status | Meaning |
| Flash once in 2 seconds | GSM initialization |
| Light Always | GPRS is normal / already online |
| No light | GSM sleep |
Blue LED light -GPS
| LED Status | Meaning |
| Flash once in 2 seconds | GPS signal searching |
| Light Always | GPS targeted |
| No light | GPS sleep |
| GPS | functions: |
| protocol: GT06 | 1)support ACC ignition checking |
| G-sensor : BS250E | 2)support Relay for cutting off power/fuel |
| input power: 9-100V | 3)built-in GPS antenna: 18*18*4 mm |
| power IC: SL3036H | 4)built-in battery, Real time tracking |
| GSM module: MT6261 | 5)Geo-fence, over speed alarm, |
| GPS module: Ublox | 6) platform /APP supported |
Mini 4G GPS Tracking Device For Vechile Anti-Theft Supported Platform Over Speed Alarm GPS Tracker
Warranty
In particular that:
1. Any technical changes to the product in the future without prior notice.
2. Any changes of appearance, color of products, to prevail in kind.
3. The warranty card is only available in the following listed IMEI / ID Number warranty Services.
4. Please keep this service card, please show this card and the original purchase receipt for warranty.
5. See the table below illustrate specific warranty.
This card is a basic warranty certificate, user please fill out the card and keep it.
FAQ:
Q1: What kind of SIM card do your devices support?
Re: It support global quad band(850/900/1800/1900) SIM card, 2G GSM network, and enable GPRS flow;
Q2: Can i build my own platform, and only use your device?
Re: Yes, of course, you can build your own plaftform, by our offering GPRS protocol, if you want our help to build a independent platform, it will cost technical fee, details you can contact us directly;
Q3: Can i make my own distributor account on your platform?
Re: Yes, you can, if you are a distributor or want to be a distributor, please share all your IMEIs of devices, and then we can
make a distributor account for you, Available to manage your devices.
Q4: Is there phone APP, support Android and IOS system?
Re: yes, you can download the latest app here, www.19gps.net,www.dyegoo.net and it support android and IOS, no Windows OS;
Q5: How about your platform cost?
Re: Free for lifetime;
