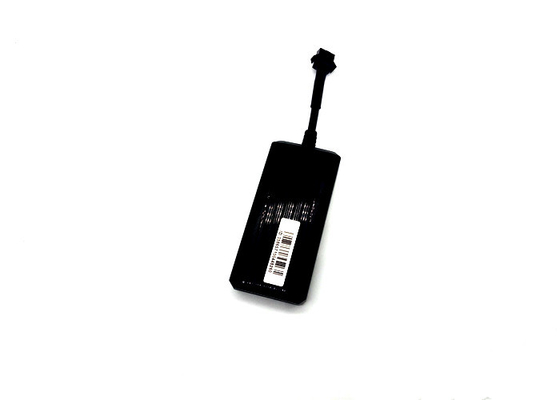

C003-01-4G Model 4G GPS Tracker Tracking Chip Car GPS Auto Tracker Car Alarms
|
Product Details:
Payment & Shipping Terms:
|
Detailed Product Description
| Model Number:: | C003-01-4G | Network: | GSM/GPRS 850/900/1800/1900MHz |
|---|---|---|---|
| GPS Chip:: | MTK Chip | Feature: | Geo-fence, |
| Accuracy: | 5-10M | Warranty: | 2 Years |
| RAM: | 32M | ROM: | 32M |
| High Light: | 4G LTE Vehicle GPS Tracker,ACC Input Detection GPS Tracker,LBS Positioning GPS Tracking Device |
||
C003-01-4G Model 4G GPS Tracker Tracking Chip Car GPS Auto Tracker Car Alarms

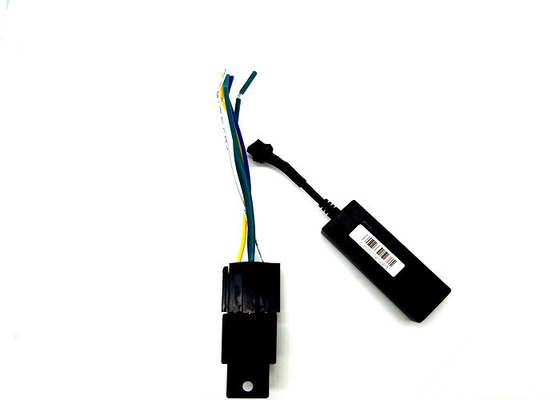

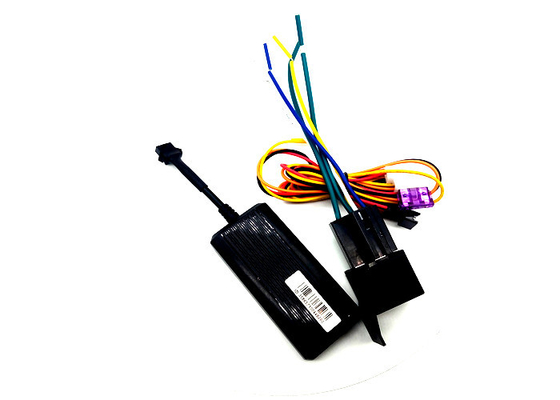

Accessories
Red＆black cable for power
Orange cable for ACC/ignition
Yellow cable for Relay
C003-01-4G Model 4G GPS Tracker Tracking Chip Car GPS Auto Tracker Car Alarms
Specification
| Detail | |
| Operating voltage | DC9-90V |
| Operating current | 22mA@12V |
| Specifications | L90mm*W40mm*H15mm |
| Positioning mode | GPS, LBS and positioning |
| Positioning error | < 10 m |
| Support WCDMA | Yes |
| Communication | TCP |
| Operating temperature range | -20℃～+70℃ |
| Storage temperature range | -40℃~+85℃ |
| weight | 50g |
Main function
| 1. Remote power off function | |
| 2. Real-time positioning function | |
| 3. Anti-theft alarm | |
| 4. Track playback function | |
| 5. Vibration alarm | |
| 6. Overspeed alarm | |
| 7. Electronic fence function |
C003-01-4G Model 4G GPS Tracker Tracking Chip Car GPS Auto Tracker Car Alarms
Preparation for the installation
1 . Product Check. Open the packing box and check the device‘s model and accessories. If the model is wrong or the accessories not complete, please contact the dealer.
2 . Choose SIM card. Please insert a SIM card to the device. Please take dealer’s advice as reference.
3 . SIM card installation. Discharge the cover of the device and uncover the SIM card holder. Then insert the SIM card and cover SIM card holder.
4 . Put back the front cover and screw it up.
5 . Connect the device to the 9-100Vpower supply.(the red LED constant glow)
6 . Install the device in the hidden place of the car；
Installation for the Car/Motorcycle/E-bike
The GPS tracker must be installed under professional personnel.
Note:
1) Please install the device in the hidden place as followings:
Under Front windshield；
In the front instrument panel；
Under back windshield；
2) Avoid being placed with signal radiators like reverse sensor ；
3) The device has GSM antenna and GPS antenna inside. Please ensure the receiving side of the device is face up and without metal cover.
C003-01-4G Model 4G GPS Tracker Tracking Chip Car GPS Auto Tracker Car Alarms
Warranty
In particular that:
1. Any technical changes to the product in the future without prior notice.
2. Any changes of appearance, color of products, to prevail in kind.
3. The warranty card is only available in the following listed IMEI / ID Number warranty Services.
4. Please keep this service card, please show this card and the original purchase receipt for warranty.
5. See the table below illustrate specific warranty.
This card is a basic warranty certificate, user please fill out the card and keep it.
FAQ:
| Q:Haw can i buy it? |
| A:We accept T/T,Westem Uniton and Paypl.After we recerive your payment. |
| Q:Can we put into my motorcycle? |
| A:Yes,of course!it support DC9-100V voltage input for any vehicles. |
| Q:Can we use your platform? |
| A:yes,you can use our platform.And it is free to use. |
| Q:What is the lead time if we place order to get the parcel? |
| A:It needs 1-10 working days after received your payment |
