Product Details:
Payment & Shipping Terms:
|
Type: | 4G GPS Tracker | Warranty: | 24 Month |
---|---|---|---|
Weight: | 50g | Battery: | Built-in 200MAH |
Application: | Web Platform/APP | Frequency: | FDD-LTE 800/850/900/1800/2100/2600MHz |
Model: | TK003 | Network: | GPRS SMS |
High Light: | 4G LTE Vehicle GPS Tracker,ACC Input Detection GPS Tracker,LBS Positioning GPS Tracking Device |

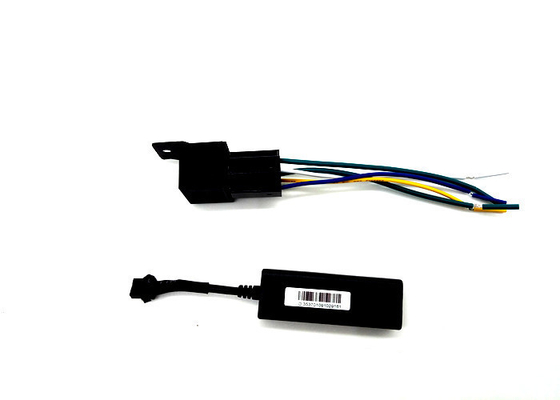

Widly Voltage 9-100DC 4G GPS Tracker Built-in Battery 200MAH FDD 2600MHZ GPS Tracking
Frequently used commands
Command | Explain | Reply content |
IMEI# | IMEI query | IMEI: 116790246811200 |
IMEI,116790246811200# | Set IMEI | OK |
FACTORY# | Restore factory settings | OK, The terminal will restart after 30 seconds! |
RESET# | restart | The terminal will restart after 1 minute! |
WHERE# | Location query | Current position!Lat:N22.589031,Lon:E113.853567,Course:0,Speed:0,DateTime:2018-07-26 10:25:55 |
URL# | Google link query |
GPS! N4.85094 E7.06102 speed:000.0 T:07/13/19 11:37 http://maps.google.com/maps?q=N4.864553,E6.983681 |
SERVER# | Server query | server,1,gw.carhere.net,8005,0# |
server,1,gps-go.com,6006,0# | Set domain name | ok |
Server,0,121.201.110.106,6006,0# | Set IP | ok |
GMT# | Time zone query | Currently Timezone(GMT):E,8,0 |
APN# | APN query | Currently in use APN:peoples.net,0000,0000; |
APN,xxxx# | Set APN | |
APN,xxxxt,userAAA,passBBB# | Set apn and apn user,password | Example: apn,cmnet,aaa,000# |
GMT,<A>,<b>[,C]#
example, GMT,E,8,0#
|
Change time zone command |
A:E/W, E east time zone, W west time zone, default: E B: 0~12; time zone, default value: 8 C: 0/15/30/45, half time zone, default value: 0
|
Produce Description
GSM | GPRS |
Geo-sensor | Input power |
ACC | Ignition checking |
Built-in battery | Cutt off power/fuel |
Real time tracking | Over speed alarm |
Relay supported | Platform /APP supported |
Technical parameter
1).GSM:850/900/1800/1900 Quad band
2).GPRS: Class12, TCP/IP
3).Working Voltage:9-100V DC
4).Working current:≈22mA (12vDC)
5).Working current:≈12mA (24vDC)
6).GPS locating time:Cold start≈38s(Open sky)
Warm start≈32s Hot start≈2s(Open sky)
7).GPS Precision:10m(2D RM)
8).Working temperature:-20℃~+70℃
9).Working humidity:20%~80%RH
10).Measurement:90(L)×40(W)×15(H)mm

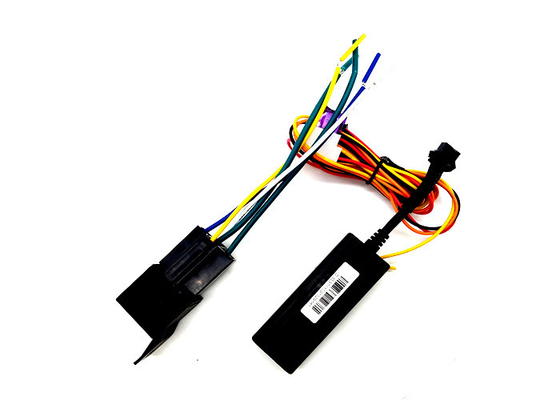

Widly Voltage 9-100DC 4G GPS Tracker Built-in Battery 200MAH FDD 2600MHZ GPS Tracking
Main components
GPS Functions:
protocol: GT06 1)support ACC ignition checking ,
G-sensor : BS250E 2)support Relay for cutting off power/fuel
input power: 9-100V 3)built-in GPS antenna: 18*18*4 mm
power IC: SL3036H 4)built-in battery, Real time tracking.
GSM module: MT6261 5)Geo-fence, over speed alarm,
GPS module: Ublox 6)platform /APP supported
Indicators
Connect DC 9-100V power supply and the red LED will light continuously.
1 The red LED is the power signal,
it is always on when the external DC is connected.
2 The blue LED is the GSM signal indicator.
It is always on when there is no GSM;
it flashes when GSM is normal;
it flashes quickly when transmitting data.
3 The yellow LED is the GPS signal indicator:
it is always on when there is no positioning;
it flashes after positioning.

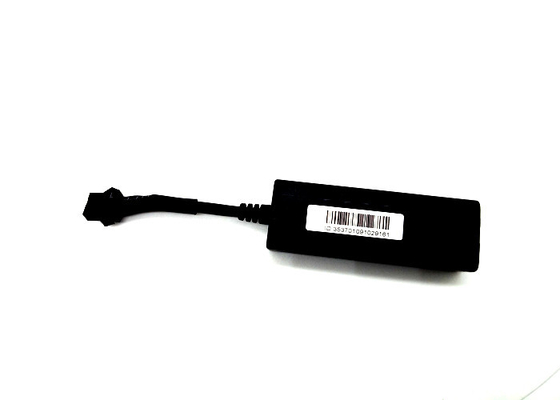

Widly Voltage 9-100DC 4G GPS Tracker Built-in Battery 200MAH FDD 2600MHZ GPS Tracking
FAQ:
Q:Haw can i buy it? |
A:We accept T/T,Westem Uniton and Paypl.After we recerive your payment. |
Q:Can we put into my motorcycle? |
A:Yes,of course!it support DC9-100V voltage input for any vehicles. |
Q:Can we use your platform? |
A:yes,you can use our platform.And it is free to use. |
Q:What is the lead time if we place order to get the parcel? |
A:It needs 1-10 working days after received your payment |
