Vehicle And Trucks 4G GPS Tracker Real Time Tracking With Power Cuntting functions
|
Product Details:
Payment & Shipping Terms:
|
Detailed Product Description
| Certification: | CE/ISO | Dimensions: | 90*40*15MM |
|---|---|---|---|
| Working Voltage: | DC9-100V | GPS Chipset: | MT6261D |
| Place Of Origin: | Shenzhen China | Weight: | 0.05kg |
| Battery Capacity: | 0.2A | Communication Protocol: | TCP/IP |
| Material: | Plastic | ||
| High Light: | FCC 4G Car GPS Tracker,LBS Locating Vehicle GPS Tracker,Geo Fence 4G GPS Tracker |
||
4G GPS Tracker Real Time Tracking Cut Power Curcuit Free Platform App Tracking

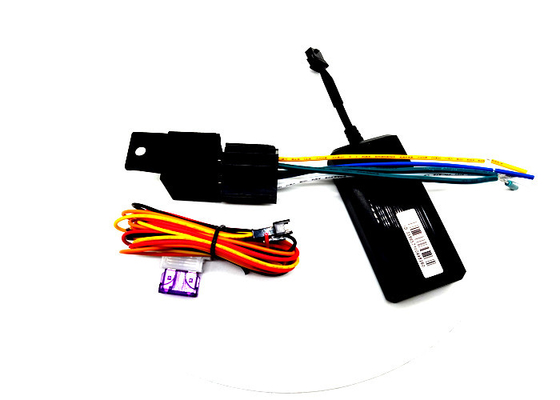

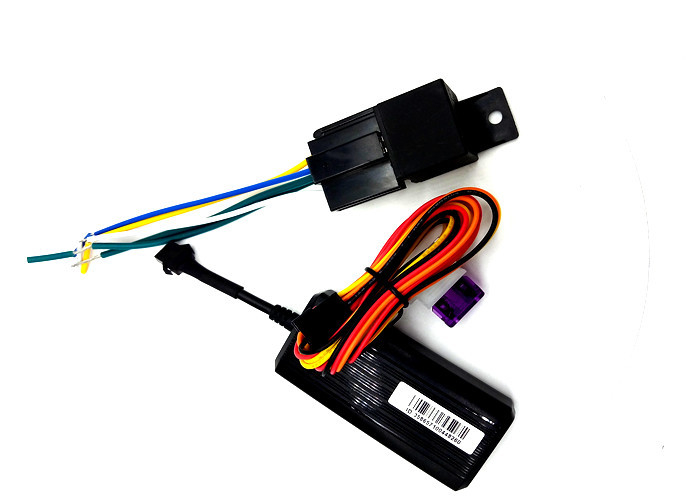

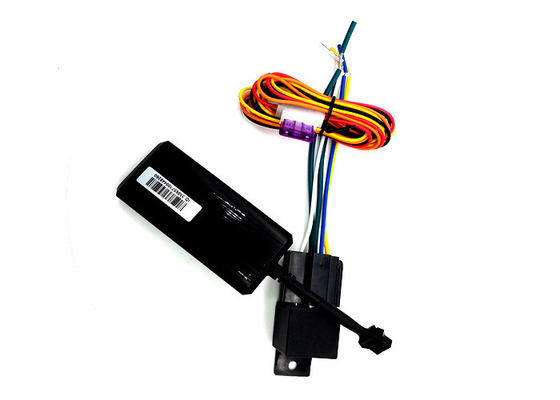

Product Accessories
Red＆black cable for power
Orange cable for ACC/ignition
Yellow cable for Relay
4G GPS Tracker Real Time Tracking Cut Power Curcuit Free Platform App Tracking 2 Years Warranty
Installation for SIM of device
1 Preparation for the installation
1.1 Product Check. Open the packing box and check the device‘s model and accessories. If the model is wrong or the accessories not complete, please contact the dealer.
1.2 Choose SIM card. Please insert a SIM card to the device. Please take dealer’s advice as reference.
1.3 SIM card installation. Discharge the cover of the device and uncover the SIM card holder. Then insert the SIM card and cover SIM card holder.
1.4 Put back the front cover and screw it up.
1.5 Connect the device to the 9-100Vpower supply.(the red LED constant glow)
1.6 Install the device in the hidden place of the car；
The SIM card must be with GPRS function and enough deposit. If your SIM card need input PIN when power on, please cancel it.
2 Installation for the Car/Motorcycle/E-bike
The GPS tracker must be installed under professional personnel.
Note:
1) Please install the device in the hidden place as followings:
Under Front windshield；
In the front instrument panel；
Under back windshield；
2) Avoid being placed with signal radiators like reverse sensor ；
3) The device has GSM antenna and GPS antenna inside. Please ensure the receiving side of the device is face up and without metal cover.
Note:The metal cover will lessen the receiving of GPS signals.
Indicators
3.5.1 Red light - Power Indicator / OBD Work Lights
LED Status Meaning
Flash once in 2 seconds Normal operation / OBD working properly
No light Shutdown / OBD sleep
3.5.2 Yellow indicator light -GSM
LED Status Meaning
Flash once in 2 seconds GSM initialization
Light Always GPRS is normal / already online
No light GSM sleep
3.5.3 Blue LED light -GPS
LED Status Meaning
Flash once in 2 seconds GPS signal searching
Light Always GPS targeted
No light GPS sleep
4G GPS Tracker Real Time Tracking Cut Power Curcuit Free Platform App Tracking 2 Years Warranty
Terminal Outlet Defined
(1) Red line connects positive power;
(2) Black line connects negative power;
(3) Orange connects ACC;
(4) Yellow connects relay
Please use the original supplied power cord, the red line is the positive power supply,
black for negative power, negative power installation, choose a separate grounding or
connect metal, do not connect with the other ground wire together. If need ACC
automatic anti-theft function, ensure to connect the ACC line, the device will detect the
ACC state to decide whether to enter the security mode; If not connect to ACC line, the
vehicle will enter the security mode, vibration occurs under the security mode, vibration
alarm will be triggered.
Proper Use of The Product
Install→Power on→Settings→Register
Installation: GPS antenna should be facing toward the sky, above the mounting location
must be no material (such as metal, window film) absorption of electromagnetic waves
sheltered place.
Boot: Insert the SIM card correctly, connect the wire according to diagram, then turn on
the power.
Setting: Must be done, or can not do other operations, mobile phone owners send text
messages to set the owner number and a specific number to the terminal SIM card.
Registration: Registration method is different subject to dealer platforms, please consult
your dealer.
4G GPS Tracker Real Time Tracking Cut Power Curcuit Free Platform App Tracking 2 Years Warranty
| LIGHT | Functions |
| Red LED | Connect DC 9-100V power supply and will light continuously. |
| The red LED is the power signal, | |
| It is always on when the external DC is connected. | |
| blue LED | It is he GSM signal indicator. |
| It is always on when there is no GSM; | |
| It flashes when GSM is normal; | |
| It flashes quickly when transmitting data. | |
| yellow LED | It is the GPS signal indicator: |
| It is always on when there is no positioning; | |
| It flashes after positioning. |
Preparation for the installation
| 1 Product Check. Open the packing box and check the device‘s model and accessories. If the model is wrong or the accessories not complete, please contact the dealer. |
| 2 Choose SIM card. Please insert a SIM card to the device. Please take dealer’s advice as reference. |
| 3 SIM card installation. Discharge the cover of the device and uncover the SIM card holder. Then insert the SIM card and cover SIM card holder. |
| 4 Put back the front cover and screw it up. |
| 5 Connect the device to the 9-100Vpower supply.(the red LED constant glow) |
| 6 Install the device in the hidden place of the car； |
FAQ:
| Q:Haw can i buy it? |
| A:We accept T/T,Westem Uniton and Paypl.After we recerive your payment. |
| Q:Can we put into my motorcycle? |
| A:Yes,of course!it support DC9-100V voltage input for any vehicles. |
| Q:Can we use your platform? |
| A:yes,you can use our platform.And it is free to use. |
| Q:What is the lead time if we place order to get the parcel? |
| A:It needs 1-10 working days after received your payment |
