Mini 2G 3G 4G GPS GSM Tracker Anti-lost GPS Tracking Device Vibration Alarm 4G GPS Tracker
|
Product Details:
Payment & Shipping Terms:
|
Detailed Product Description
| Type: | 4G GPS Tracker | System Memory: | 32RAM+32ROM |
|---|---|---|---|
| GPS Location Precision::: | 5M | Placement: | PORTABLE |
| Function: | GPS Anti-jammer Tracker | Connection:: | 4G 3G 2G |
| Certification: | CE/FCC/ROHS | Battery: | Built-in 200mAh |
| High Light: | FCC 4G Car GPS Tracker,LBS Locating Vehicle GPS Tracker,Geo Fence 4G GPS Tracker |
||
Mini 2G 3G 4G GPS GSM Tracker Anti-lost GPS Tracking Device Vibration Alarm 4G GPS Tracker
Product Instructions
- Owner password settings
- Set a SOS specific number
- No Power Alarm Set
- ACC Security Settings
- Vibration Alarm Settings
- SOS Alarm Settings
- Remote monitoring
- SMS Text Query Location Information
- Speed Alarm Settings
- Move Alarm Settings
- SMS armed and disarm settings
- SMS Off Fuel (Optional)
- GPS Reboot
- GPS Reset
- Device Reboot
- Query Device Information
- APN Settings
- Setting the server IP and port
- Platform Application

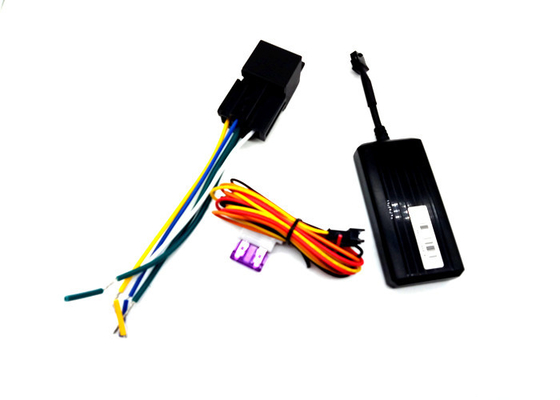

Product Accessories
| Red＆black | =power |
| Orange cable | =ACC/ignition |
| Yellow | =Relay |
Mini 2G 3G 4G GPS GSM Tracker Anti-lost GPS Tracking Device Vibration Alarm 4G GPS Tracker
Product Features:
- Platform supports electronic fence, out of the regional alarm;
- Platform supports deviate planning route alarm;
- Platform supports overspeed alarm;
- Platform supports serious collision warning (optional);
- Platform Support rollover warning (optional);
- Platform supports for report output;
- Support WEB send arm and disarm command;
- Support RFID auto-sensing arm and disarm (optional);
Indicators
| LIGHT | Functions |
| Red LED | Connect DC 9-100V power supply and will light continuously. |
| The red LED is the power signal, | |
| It is always on when the external DC is connected. | |
| blue LED | It is he GSM signal indicator. |
| It is always on when there is no GSM; | |
| It flashes when GSM is normal; | |
| It flashes quickly when transmitting data. | |
| yellow LED | It is the GPS signal indicator: |
| It is always on when there is no positioning; | |
| It flashes after positioning. |
Mini 2G 3G 4G GPS GSM Tracker Anti-lost GPS Tracking Device Vibration Alarm 4G GPS Tracker
Product Functions1:
Move Alarm Settings
- Move alarm setting instructions: move123456 300
- Re: move ok
- Unit: meter
- Under alarm situation GPS reply: move alarm! GPS security off
- Move alarm cancel (default): move123456 000
- Re: move ok
- SMS armed and disarm settings
- SMS armed: SF
- Re: SF OK
- SMS disarm: CF
- Re: CF OK
SMS Off Fuel (Optional)
When the vehicle thefts, by monitoring background to send off fuel directive, to ensure
the vehicle is in safe driving premise, cutting stolen vehicle fuel, unable to start the vehicle
to achieve the purpose.
NOTE: To ensure the safety of vehicles, the terminal is active only in the GPS targeting
state, and the vehicle speed is less than 20KM / H or stop to cut off fuel.
When theft alarm is over, you can restore fuel manually through background, terminal
performs recovery operation, the vehicle will continue to travel.
SMS fuel off: DY
SMS fuel on: KY
Mini 2G 3G 4G GPS GSM Tracker Anti-lost GPS Tracking Device Vibration Alarm 4G GPS Tracker
Product Functions2:
Platform Application
The dealer platforms are different, please consult your dealer internet website
1. Real-time monitoring, network / phone search vehicles
GPS + LBS dual-mode positioning, GPS positioning accuracy of 2 meters, when GPS has
signal use GPS positioning, in a place with no GPS signal use LBS base station to locate,
dual-mode automatic switching, let your GPS vehicle positioning terminal communication
always online, make sure you monitoring 365 days x 24 hours always online.
Real-time phone monitoring: mobile login domain.
Real-time platform monitoring: computer login domain.
2. Track Playback
Login platform, click on the historical track playback function.
3. Statistics Report
Logistics companies can be set by the software to monitor the goods is notified of the
departure time, route point, line alarm, warning area, heavy hit the alarm, rollover
warning, driving speed, etc., we will comprehensive analysis of goods in transit situation
and issue reports.
Login platform, click statistics report
4. Windows, Android, Ipad, Iphone, Wechat client please go to auto download service
platform, each client application please contact customer service.
FAQ:
| Q:Haw can i buy it? |
| A:We accept T/T,Westem Uniton and Paypl.After we recerive your payment. |
| Q:Can we put into my motorcycle? |
| A:Yes,of course!it support DC9-100V voltage input for any vehicles. |
| Q:Can we use your platform? |
| A:yes,you can use our platform.And it is free to use. |
| Q:What is the lead time if we place order to get the parcel? |
| A:It needs 1-10 working days after received your payment |
