RoHS Real time Manual GPS tracker MINI 4G GPS Tracking Device Free Cost Platform APP
|
Product Details:
Payment & Shipping Terms:
|
Detailed Product Description
| Power Supply: | 9-100V | Product Name: | MINI 4G GPS Tracker |
|---|---|---|---|
| Size: | 90*40*15MM | Sensor: | G-sensor |
| GSM Chipset: | MT6261 | Weight: | 50g |
| Certificate: | CE/ROHS/FCC/SGS ISO9000 | Backup Battery: | 200MAH |
| High Light: | FCC 4G Car GPS Tracker,LBS Locating Vehicle GPS Tracker,Geo Fence 4G GPS Tracker |
||
RoHS Real time Manual GPS tracker MINI 4G GPS Tracking Device Free Cost Platform APP
Product Advantages
| Remote cut-off (petrol/power) | Light and compact |
| Compel the vehicle to stop by breaking off the fuel connection | Small size allowing covert & easy mounting |
| ACC detection | GPS + LBS Positioning |
| Be aware of the ignition status where you need | Allow the location to be pinpointed in real time |
| Tracked by: SMS, APP, Web | voltage range:9-100V |
| Reports location in real time through different interfaces | Voltage adaptation up to 100v |
Accessory & APPLY
Standard Accessories:

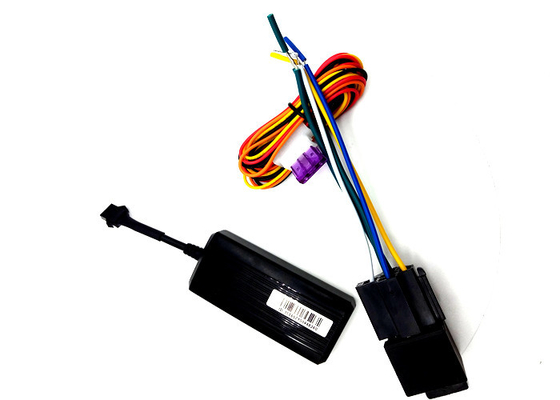

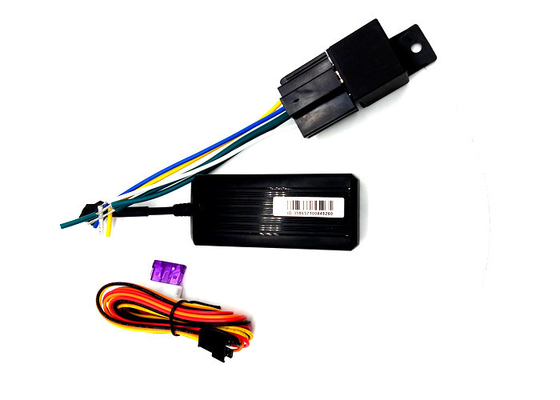

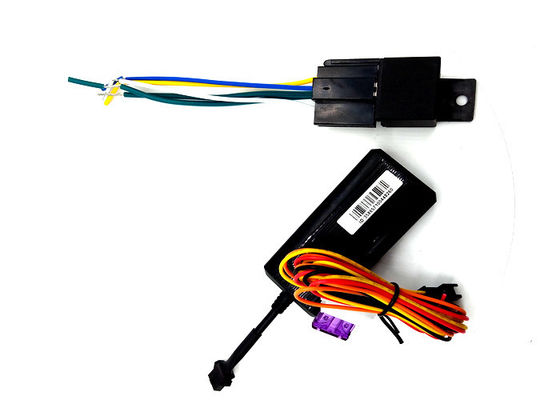

| GT06 GPS Tracker | Power Cable | Sticker | User Manual |
Optional Accessories:
| Relay Optional |
RoHS Real time Manual GPS tracker MINI 4G GPS Tracking Device Free Cost Platform APP
Technical parameter
1).GSM:850/900/1800/1900 Quad band
2).GPRS: Class12, TCP/IP
3).Working Voltage:9-100V DC
4).Working current:≈22mA (12vDC)
5).Working current:≈12mA (24vDC)
6).GPS locating time:Cold start≈38s(Open sky)
Warm start≈32s Hot start≈2s(Open sky)
7).GPS Precision:10m(2D RM)
8).Working temperature:-20℃～+70℃
9).Working humidity:20%～80%RH
Main components:
GPS Functions:
protocol: GT06 1)support ACC ignition checking ,
G-sensor : BS250E 2)support Relay for cutting off power/fuel
input power: 9-100V 3)built-in GPS antenna: 18*18*4 mm
power IC: SL3036H 4)built-in battery, Real time tracking.
GSM module: MT6261 5)Geo-fence, over speed alarm,
GPS module: Ublox 6) platform /APP supported
RoHS Real time Manual GPS tracker MINI 4G GPS Tracking Device Free Cost Platform APP
Device status indicators
| LIGHT | Functions |
| Red LED | Connect DC 9-100V power supply and will light continuously. |
| The red LED is the power signal, | |
| It is always on when the external DC is connected. | |
| blue LED | It is he GSM signal indicator. |
| It is always on when there is no GSM; | |
| It flashes when GSM is normal; | |
| It flashes quickly when transmitting data. | |
| yellow LED | It is the GPS signal indicator: |
| It is always on when there is no positioning; | |
| It flashes after positioning. |
Preparation Before Installation
1.1 Open the box, check is the equipment correct, are accessories complete, otherwise
please contact your dealer;
1.2 SIM card selection, the terminal needs to insert a WCDMA/GSM SIM card, GSM card
Unicom mobile or optionally (GSM networks worldwide),WCDMA Unicom 3G.
1.3 SIM card installation, open the terminal device, take off the metal cover SIM card
slot, SIM card chip insert into the slot, covered with a metal slot cover.
Note:
(1) Before installing or removing the SIM card, first turn off the device power;
(2) Terminal SIM card need to open GPRS function;
(3) Terminal SIM card need to open the Caller ID function (depending on customers
prefer or not;
(4) If your SIM card needs to enter SIM PIN, please consult your phone's user manual to
turn off SIM PIN;
(5) Make sure that the SIM card has charges;
RoHS Real time Manual GPS tracker MINI 4G GPS Tracking Device Free Cost Platform APP
FAQ:
| Q:Haw can i buy it? |
| A:We accept T/T,Westem Uniton and Paypl.After we recerive your payment. |
| Q:Can we put into my motorcycle? |
| A:Yes,of course!it support DC9-100V voltage input for any vehicles. |
| Q:Can we use your platform? |
| A:yes,you can use our platform.And it is free to use. |
| Q:What is the lead time if we place order to get the parcel? |
| A:It needs 1-10 working days after received your payment |
