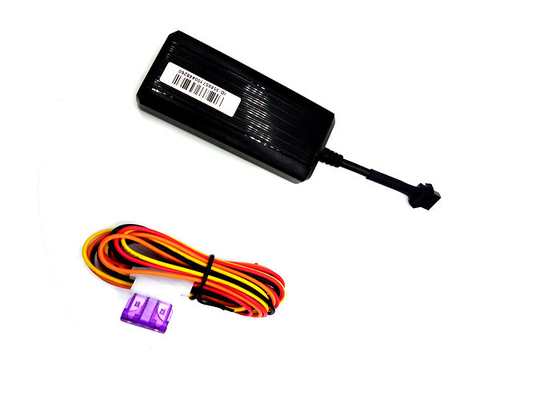

TK003 High Quality Waterproof 4G Real Time Vehicle GPS Tracker Android 4G GPS Car Tracking Device

TK003 High Quality Waterproof 4G Real Time Vehicle GPS Tracker Android 4G GPS Car Tracking Device

Products Description

Product Functions:

2G:GSM 850MHz,900MHz,1800MHz,1900MHz
3G WCDMA 2100/1900/900/850MHz
4G:FDD-LTE 800/850/900/1800/2100/2600MHz

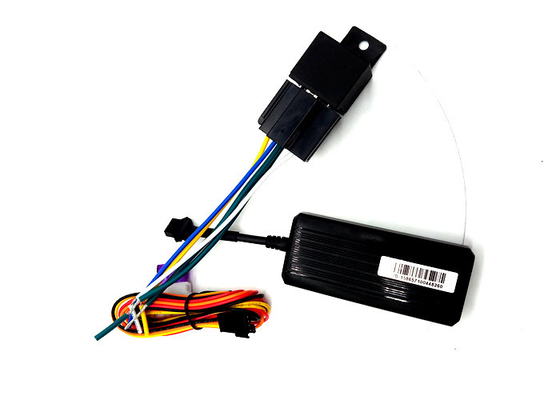

Cut oil or circuit (relay is optional )
Over speed alarm

moving alarm

Vibration alarm

power cutoff alarm

Acc ignition detection

protocol: GT06
G-sensor : BS250E
input power: 9-100V
power IC: SL3036H
GSM module: MT6261

TK003 High Quality Waterproof 4G Real Time Vehicle GPS Tracker Android 4G GPS Car Tracking Device

Product Features

2.1 Support SMS text query location information;
2.2 ACC ignition signal is detected, the vehicle prompted the state;
2.3 Built-in vibration sensor, to achieve intelligent vehicle anti-theft;
2.4 Able to set a specific number for SOS alarm and burglar alarm;
2.5 SOS switch button for emergency call for help;
2.6 Internal / external microphone and speakers, remote audio monitoring and voice
intercom function (optional);
2.7 Built-in backup battery, to achieve illegal cutting wire alarm (optional);
2.8 Built-in OBD2 remote vehicle diagnostics management system (optional);
2.9 Platform supports up to 180 days historical route track;
2.10 Platform supports electronic fence, out of the regional alarm;

4G module

TK003 High Quality Waterproof 4G Real Time Vehicle GPS Tracker Android 4G GPS Car Tracking Device

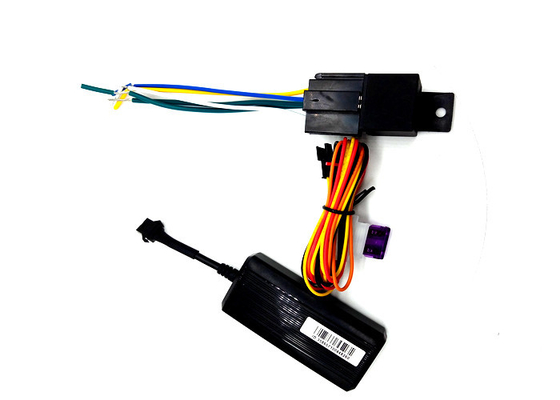

Terminal Outlet Defined
(1) Red line connects positive power;

(2) Black line connects negative power;

(3) Orange connects ACC;

(4) Yellow connects relay

Please use the original supplied power cord, the red line is the positive power supply,
black for negative power, negative power installation, choose a separate grounding or
connect metal, do not connect with the other ground wire together. If need ACC
automatic anti-theft function, ensure to connect the ACC line, the device will detect the
ACC state to decide whether to enter the security mode; If not connect to ACC line, the
vehicle will enter the security mode, vibration occurs under the security mode, vibration
alarm will be triggered.

Proper Use of The Product
Install→Power on→Settings→Register

Installation: GPS antenna should be facing toward the sky, above the mounting location
must be no material (such as metal, window film) absorption of electromagnetic waves
sheltered place.

Boot: Insert the SIM card correctly, connect the wire according to diagram, then turn on
the power.

Setting: Must be done, or can not do other operations, mobile phone owners send text
messages to set the owner number and a specific number to the terminal SIM card.

Registration: Registration method is different subject to dealer platforms, please consult
your dealer.
