Anti-theft Alarm Mini Real Time GPS Mini Tracker Smart GT06 Vehicle GPS 4G GPS Tracker Mini
|
Product Details:
Payment & Shipping Terms:
|
Detailed Product Description
| Name:: | 4G GPS Tracker | Weight:: | 50g |
|---|---|---|---|
| Feature: | GPS+Anti-theft+Real Time Tracking | Usage: | Secuity Equipment |
| Warranty: | 2 Years | Network: | 4G/3G/2G |
| Type:: | GPS GSM | Model Number:: | GT06 |
| High Light: | FCC 4G Car GPS Tracker,LBS Locating Vehicle GPS Tracker,Geo Fence 4G GPS Tracker |
||
Anti-theft Alarm Mini Real Time GPS Mini Tracker Smart GT06 Vehicle GPS 4G GPS Tracker Mini
Product Features:
| SMS Command list | |||
| NO. | Item | SMS Commands format | Remarks |
| 1 | Check Device Status | STATUS# | |
| 2 | Check Device parameters | PARAM# | |
| 3 | Check GPRS Parameters | GPRSSET# | |
| 4 | Check Device Lat. And Log. | WHERE# | |
| 5 | Set Server IP or Domain name |
SERVER,1,domain name,port,0#
SERVER,0,IP,Port,0# The last bit 0 stands for TCP |
|
| 6 | Check Server parameters | SERVER# | |
| 7 | Reset Device | RESET# | The terminal will restart after 1 minutes |
| 8 | Add SOS Number | SOS,A, Number 1,Number 2,Number 3# | |
| 9 | Del SOS Number | SOS,D,No. 1,No. 2,No. 3# | |
| 10 | Check SOS Number | SOS# | |
| 11 | Add Center number | CENTER,A,Number# | Only SMS NUMBER CAN SET CENTER NUMBER |
| 12 | Del Center number | CENTER,D# | |
| 13 | GPS DATA upload time interval |
TIMER,T1,T2# T1=0,5～18000seconds; ACC ON time interval ACC OFF time interval Example: TIMER,30,300# |
|
| 14 | Check time interval | TIMER# | |
| 15 | Control Relay |
RELAY,A# 0 stands for on 1 stands for off Example: RELAY,0# |
|
| 16 | Check Relay status | RELAY# | |
| 17 | Open Vibration alert |
SENALM,A,M# A=ON M=0～2 alert methods 0 stands for only GPRS 1 stands for SMS+GPRS 2 GPRS+SMS+CALL Example:SENALM,ON,2# |
|
| 18 | Close Vibration alert | SENALM,OFF# | |
| 19 | Check Vibration alert status | SENALM# | |
| 20 | Open power off alert |
POWERALM,A,M,T1,T2,# 0 stands for only GPRS 1 stands for SMS+GPRS 2 GPRS+SMS+CALL T1=2～60seconds detect power off time T2=1-3600seconds the minimum charge time Example:POWERALM,ON,2,30,300# |
|
| 21 | Check power off alert status | POWERALM# | |
| 22 | Check heartbeat data status | HBT# | |
| 23 | Open Over speed alert |
SPEED,A,B,C,M# B=5～600seconds C=1～255km/h M=0～1,upload method, 0 only GPRS 1 SMS+GPRS； |
Example: SPEED,ON,10,120,1# |
| 24 | Close Over speed alert | SPEED,OFF# | |
| 25 | Check Over speed status | SPEED# | |
Anti-theft Alarm Mini Real Time GPS Mini Tracker Smart GT06 Vehicle GPS 4G GPS Tracker Mini
Indicators:
Red light - Power Indicator / OBD Work Lights
| LED Status | Meaning |
| Flash once in 2 seconds | Normal operation / OBD working properly |
| No light | Shutdown / OBD sleep |
Yellow indicator light -GSM
| LED Status | Meaning |
| Flash once in 2 seconds | GSM initialization |
| Light Always | GPRS is normal / already online |
| No light | GSM sleep |
Blue LED light -GPS
| LED Status | Meaning |
| Flash once in 2 seconds | GPS signal searching |
| Light Always | GPS targeted |
| No light | GPS sleep |
Anti-theft Alarm Mini Real Time GPS Mini Tracker Smart GT06 Vehicle GPS 4G GPS Tracker Mini

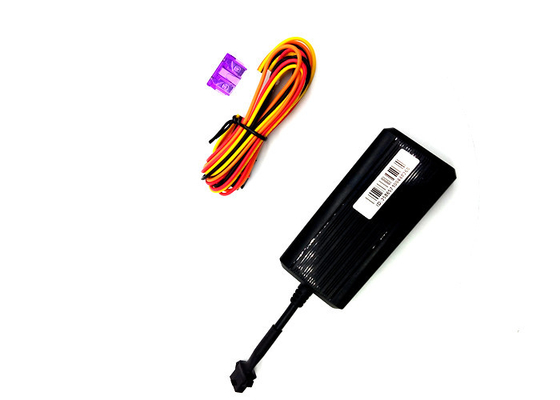

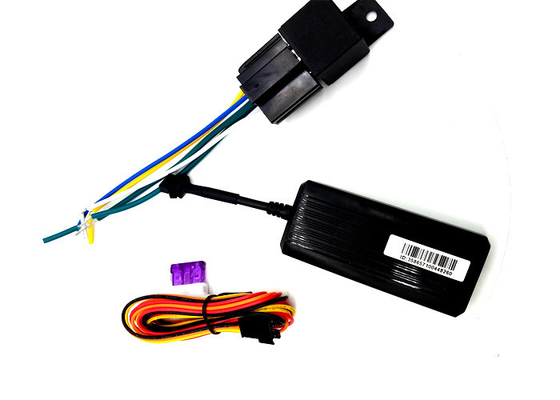

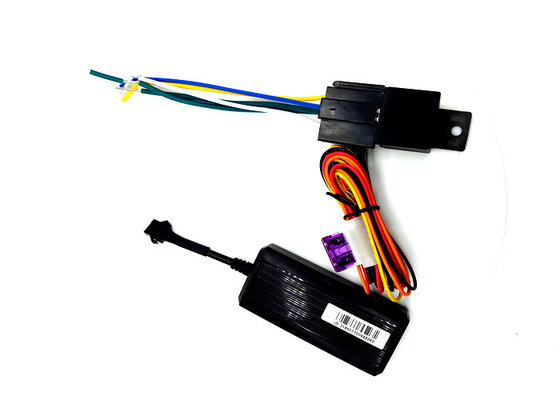

1. Product Accessories
1.1 Power cable
1.2 User Guide
1.3 Microphone (optional)
1.4 SOS button (optional)
1.5 Relay (optional)
2. Product Features
2.1 Internal / external microphone and speakers, remote audio monitoring and voice
intercom function (optional);
2.2 Built-in backup battery, to achieve illegal cutting wire alarm (optional);
2.3 Built-in OBD2 remote vehicle diagnostics management system (optional);
2.4 Platform supports up to 180 days historical route track;
2.5 Platform supports electronic fence, out of the regional alarm;
2.6 Platform supports deviate planning route alarm;
2.7 Platform supports overspeed alarm;
2.8 Platform supports serious collision warning (optional);
2.9 Platform Support rollover warning (optional);
2.10 Platform supports for report output;
2.11 Support WEB send arm and disarm command;
2.22 Support RFID auto-sensing arm and disarm (optional);
Technical parameter:
1).GSM:850/900/1800/1900 Quad band
2).GPRS: Class12, TCP/IP
3).Working Voltage:9-100V DC
4).Working current:≈22mA (12vDC)
5).Working current:≈12mA (24vDC)
6).GPS locating time:Cold start≈38s(Open sky)
Warm start≈32s Hot start≈2s(Open sky)
7).GPS Precision:10m(2D RM)
8).Working temperature:-20℃～+70℃
9).Working humidity:20%～80%RH
Anti-theft Alarm Mini Real Time GPS Mini Tracker Smart GT06 Vehicle GPS 4G GPS Tracker Mini
- Main components: (V1.0)
GPS functions:
protocol: GT06 1)support ACC ignition checking ,
G-sensor : BS250E 2)support Relay for cutting off power/fuel
input power: 9-100V 3)built-in GPS antenna: 18*18*4 mm
power IC: SL3036H 4)built-in battery, Real time tracking.
GSM module: MT6261 5)Geo-fence, over speed alarm,
GPS module: Ublox 6)platform /APP supported
Installation for SIM of device
1 Preparation for the installation
1.1 Product Check. Open the packing box and check the device‘s model and accessories. If the model is wrong or the accessories not complete, please contact the dealer.
1.2 Choose SIM card. Please insert a SIM card to the device. Please take dealer’s advice as reference.
1.3 SIM card installation. Discharge the cover of the device and uncover the SIM card holder. Then insert the SIM card and cover SIM card holder.
1.4 Put back the front cover and screw it up.
1.5 Connect the device to the 9-100Vpower supply.(the red LED constant glow)
1.6 Install the device in the hidden place of the car；
The SIM card must be with GPRS function and enough deposit. If your SIM card need input PIN when power on, please cancel it.
Installation for the Car/Motorcycle/E-bike
The GPS tracker must be installed under professional personnel.
Note:
1) Please install the device in the hidden place as followings:
Under Front windshield；
In the front instrument panel；
Under back windshield；
2) Avoid being placed with signal radiators like reverse sensor ；
3) The device has GSM antenna and GPS antenna inside. Please ensure the receiving side of the device is face up and without metal cover.
Note:The metal cover will lessen the receiving of GPS signals
