TK003 4G LTE GPS Car Tracking Device Real Time Tracking Free Tracking System 4G GPS Tracker

TK003 4G LTE GPS Car Tracking Device Real Time Tracking Free Tracking System 4G GPS Tracker

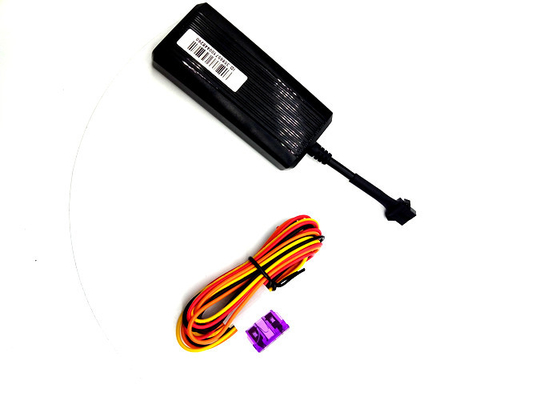

Product Accessories

TK003 4G LTE GPS Car Tracking Device Real Time Tracking Free Tracking System 4G GPS Tracker

Product Features

2.1 Support global gsm850/900/1800/1900mhz, wcdma850/900/1900/2100 Mhz network
frequency band;
2.2 Wide operating input voltage range: 9-80VDC;
2.3 GPS / LBS real-time positioning, support the computer to track the car, mobile search
vehicles and wechat search vehicles;
2.4 Support SMS text query location information;
2.5 ACC ignition signal is detected, the vehicle prompted the state;
2.6 Built-in vibration sensor, to achieve intelligent vehicle anti-theft;
2.7 Able to set a specific number for SOS alarm and burglar alarm;
2.8 SOS switch button for emergency call for help;
2.9 Internal / external microphone and speakers, remote audio monitoring and voice
intercom function (optional);
2.10 Built-in backup battery, to achieve illegal cutting wire alarm (optional);

3.1 Preparation Before Installation
3.1.1 Open the box, check is the equipment correct, are accessories complete, otherwise
please contact your dealer;
3.1.2 SIM card selection, the terminal needs to insert a WCDMA/GSM SIM card, GSM card
Unicom mobile or optionally (GSM networks worldwide),WCDMA Unicom 3G.
3.1.3 SIM card installation, open the terminal device, take off the metal cover SIM card
slot, SIM card chip insert into the slot, covered with a metal slot cover.
Note:

(1) Before installing or removing the SIM card, first turn off the device power;
(2) Terminal SIM card need to open GPRS function;

(3) Terminal SIM card need to open the Caller ID function (depending on customers
prefer or not);
(4) If your SIM card needs to enter SIM PIN, please consult your phone's user manual to
turn off SIM PIN;
(5) Make sure that the SIM card has charges;

Installation for the Car/Motorcycle/E-bike

The GPS tracker must be installed under professional personnel.

Note:

1) Please install the device in the hidden place as followings:

Under Front windshield；

In the front instrument panel；

Under back windshield；

2) Avoid being placed with signal radiators like reverse sensor ；

3) The device has GSM antenna and GPS antenna inside. Please ensure the receiving side of the device is face up and without metal cover.

Note:The metal cover will lessen the receiving of GPS signals.

TK003 4G LTE GPS Car Tracking Device Real Time Tracking Free Tracking System 4G GPS Tracker

Main components

Device status indicators

TK003 4G LTE GPS Car Tracking Device Real Time Tracking Free Tracking System 4G GPS Tracker

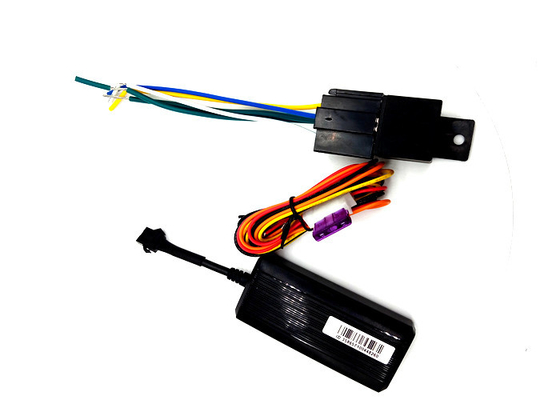

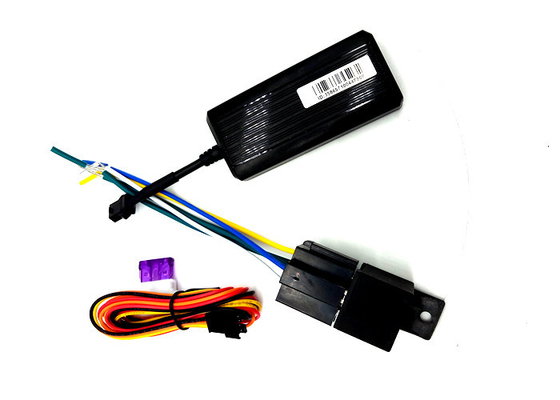

Terminal Outlet Defined
(1) Red line connects positive power;
(2) Black line connects negative power;
(3) Orange connects ACC;
(4) Yellow connects relay
Please use the original supplied power cord, the red line is the positive power supply,
black for negative power, negative power installation, choose a separate grounding or
connect metal, do not connect with the other ground wire together. If need ACC
automatic anti-theft function, ensure to connect the ACC line, the device will detect the
ACC state to decide whether to enter the security mode; If not connect to ACC line, the
vehicle will enter the security mode, vibration occurs under the security mode, vibration
alarm will be triggered.

Proper Use of The Product
Install→Power on→Settings→Register
Installation: GPS antenna should be facing toward the sky, above the mounting location
must be no material (such as metal, window film) absorption of electromagnetic waves
sheltered place.

Boot: Insert the SIM card correctly, connect the wire according to diagram, then turn on
the power.
Setting: Must be done, or can not do other operations, mobile phone owners send text
messages to set the owner number and a specific number to the terminal SIM card.
Registration: Registration method is different subject to dealer platforms, please consult
your dealer.
