4G GPS Fast Tracking Device For Vechile Anti Theft Supported G-fence Over Speed Alarm GPS Tracker
|
Product Details:
Payment & Shipping Terms:
|
Detailed Product Description
| Type: | 4G GPS Tracker | Size: | 90*40*15MM |
|---|---|---|---|
| Network:: | 2G/3G/4G | Colo: | Black |
| Weight: | 50g | Model: | TK003 |
| Tracking System: | APP/Platform | Warranty: | 2 Years |
| High Light: | FCC 4G Car GPS Tracker,LBS Locating Vehicle GPS Tracker,Geo Fence 4G GPS Tracker |
||
4G GPS Fast Tracking Device For Vechile Anti Theft Supported G-fence Over Speed Alarm GPS Tracker
GPS Tracker Main Functions:
【Real Time Tracking】
GPS tracker offers real-time tracking and 30 days of tracking history.
Track from any smart intellectual Product such as a computer, tablet, phone, etc.
Support platform lifetime. Just login or download APP, track any location anywhere and anytime.
The car GPS tracker for vehicle work in almost every country in the world.
Real time tracking route playback history check via our platform lifetime
Main Features:
| Vandalism | Support anti-counterfeiting base station, anti-detection function |
| Working current | Average current <30mA (12VDC), maximum current <100mA (12VDC) |
| Operating temperature | -20~+65℃ |
| Material | Engineering plastics |
| Weight | 50G |
| Network | 4G LTE/3G/2G |
| Dim. | 90*40*15mm |
| Storage Temp. | -40°C to +85°C |
| Accuracy | 5-20m |
| Operation Temp. | -20°C to +55°C |
| Humidity | 5%--95% non-condensing |
| Working Voltage | 9-80V |
| CPU | MTK6261 |
| RAM | 32MB |
| ROM | 32MB |
| Waterproof | Optional |
4G GPS Fast Tracking Device For Vechile Anti Theft Supported G-fence Over Speed Alarm GPS Tracker

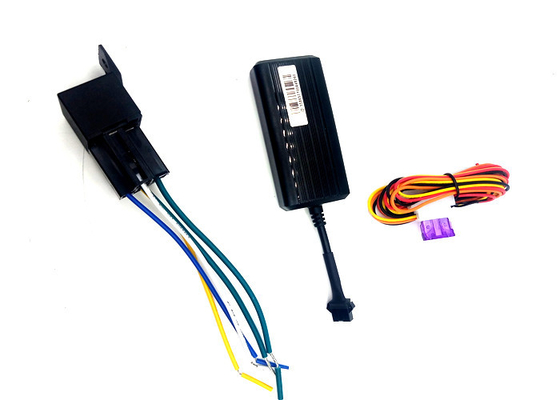

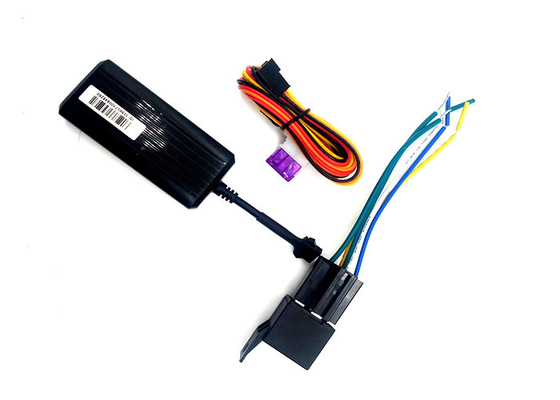

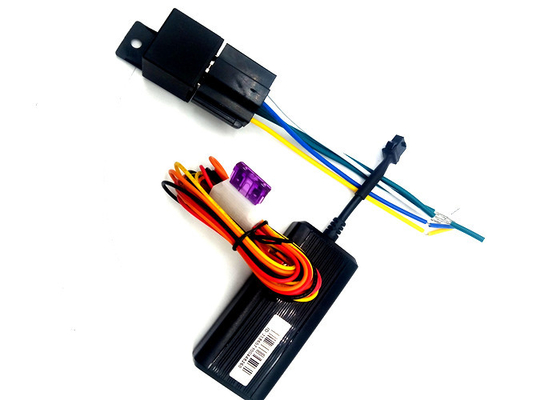

Main components:
GPS functions:
protocol: GT06 1)support ACC ignition checking ,
G-sensor : BS250E 2)support Relay for cutting off power/fuel
input power: 9-100V 3)built-in GPS antenna: 18*18*4 mm
power IC: SL3036H 4)built-in battery, Real time tracking.
GSM module: MT6261 5)Geo-fence, over speed alarm,
GPS module: Ublox 6)platform /APP supported
Device status indicators:
| LIGHT | Functions |
| Red LED | Connect DC 9-100V power supply and will light continuously. |
| The red LED is the power signal, | |
| It is always on when the external DC is connected. | |
| blue LED | It is he GSM signal indicator. |
| It is always on when there is no GSM; | |
| It flashes when GSM is normal; | |
| It flashes quickly when transmitting data. | |
| yellow LED | It is the GPS signal indicator: |
| It is always on when there is no positioning; | |
| It flashes after positioning. |
Main Frequecy:
| GSM: | 850/900/1800/1900 Quad band |
| GPRS: | Class12, TCP/IP |
| Working Voltage | 9-100V DC |
| Working current: | ≈22mA (12vDC) |
| Working current: | ≈12mA (24vDC) |
| GPS locating time: | Cold start≈38s(Open sky) Warm start≈32s Hot start≈2s(Open sky) |
| GPS Precision: | 10m(2D RM) |
| Working temperature: | *-20℃～+70℃ |
| Working humidity: | 20%～80%RH |
| Measurement: | 90(L)×40(W)×15(H)mm |
4G GPS Fast Tracking Device For Vechile Anti Theft Supported G-fence Over Speed Alarm GPS Tracker
Produce Description:
| GSM | GPRS |
| Geo-sensor | Input power |
| ACC | Ignition checking |
| Built-in battery | Cutt off power/fuel |
| Real time tracking | over speed alarm |
| Relay supported | platform /APP supported |
Preparation for the installation:
| 1 Product Check. Open the packing box and check the device‘s model and accessories. If the model is wrong or the accessories not complete, please contact the dealer. |
| 2 Choose SIM card. Please insert a SIM card to the device. Please take dealer’s advice as reference. |
| 3 SIM card installation. Discharge the cover of the device and uncover the SIM card holder. Then insert the SIM card and cover SIM card holder. |
| 4 Put back the front cover and screw it up. |
| 5 Connect the device to the 9-100Vpower supply.(the red LED constant glow) |
| 6 Install the device in the hidden place of the car； |
| Q:Haw can i buy it? |
| A:We accept T/T,Westem Uniton and Paypl.After we recerive your payment. |
| Q:Can we put into my motorcycle? |
| A:Yes,of course!it support DC9-100V voltage input for any vehicles. |
| Q:Can we use your platform? |
| A:yes,you can use our platform.And it is free to use. |
| Q:What is the lead time if we place order to get the parcel? |
| A:It needs 1-10 working days after received your payment |
4G GPS Fast Tracking Device For Vechile Anti Theft Supported G-fence Over Speed Alarm GPS Tracker
Installation for SIM of device
1 Preparation for the installation
1.1 Product Check. Open the packing box and check the device‘s model and accessories. If the model is wrong or the accessories not complete, please contact the dealer.
1.2 Choose SIM card. Please insert a SIM card to the device. Please take dealer’s advice as reference.
1.3 SIM card installation. Discharge the cover of the device and uncover the SIM card holder. Then insert the SIM card and cover SIM card holder.
1.4 Put back the front cover and screw it up.
1.5 Connect the device to the 9-100Vpower supply.(the red LED constant glow)
1.6 Install the device in the hidden place of the car；
The SIM card must be with GPRS function and enough deposit. If your SIM card need input PIN when power on, please cancel it.
Device wiring requirements
1 The device power supply is DC 9-100V. The red line is positive pole while the black line is negative pole.
2 The negative pole of power supply connects with ground or the metals. Please do not connect with other ground lines.
3 When finishing the power supply wire connection, please make the plug of power supply to the device
Any issue please contact the local distributors.
