Product Details:
Payment & Shipping Terms:
|
TYPE: | SIM CARD | Working Voltage: | DC9-100V |
---|---|---|---|
Function1: | ACC Ignition Checking | Function2: | Moving Alarm |
Function3: | Real Time Tracking | Frequency: | GSM 850/900/1800/1900 Quad Band |
GPRS: | Class12, TCP/IP | Working Temperature: | -20℃~+70℃ |
Battery: | 200MAH | Use: | Automotive |
High Light: | FCC 4G Car GPS Tracker,LBS Locating Vehicle GPS Tracker,Geo Fence 4G GPS Tracker |
4G GPS Tracking Device for DC9-100V Built-IN Battery 10M Precision Hidden Mini 4G GPS Tracker
Technical parameter:
1).GSM:850/900/1800/1900 Quad band
2).GPRS: Class12, TCP/IP
3).Working Voltage:9-100V DC
4).Working current:≈22mA (12vDC)
5).Working current:≈12mA (24vDC)
6).GPS locating time:Cold start≈38s(Open sky)
Warm start≈32s Hot start≈2s(Open sky)
7).GPS Precision:10m(2D RM)
8).Working temperature:-20℃~+70℃
9).Working humidity:20%~80%RH
10).Measurement:90(L)×40(W)×15(H)mm
Frequency
2G:GSM 850MHz,900MHz,1800MHz,1900MHz
3G WCDMA 2100/1900/900/850MHz
4G:FDD-LTE 800/850/900/1800/2100/2600MHz

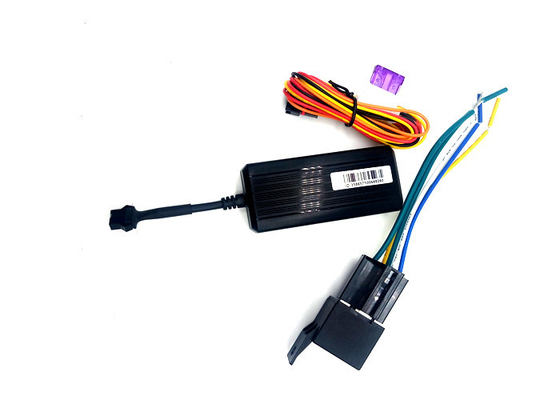

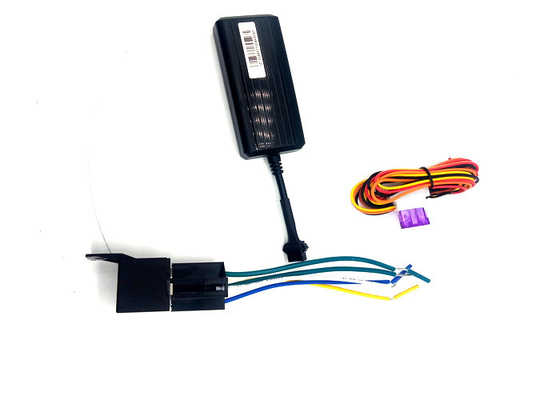

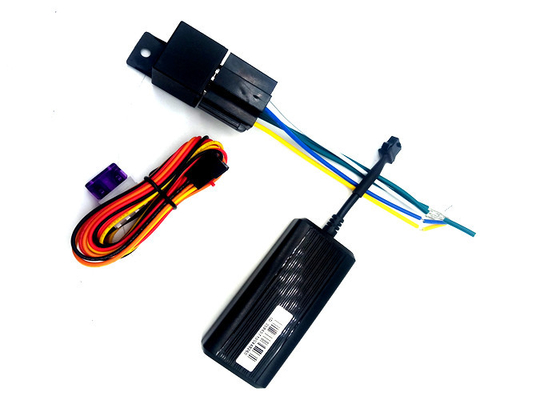

Product Accessories:
4G GPS Tracking Device for DC9-100V Built-IN Battery 10M Precision Hidden Mini 4G GPS Tracker
Main components
GPS | functions: |
protocol: GT06 | 1)support ACC ignition checking |
G-sensor : BS250E | 2)support Relay for cutting off power/fuel |
input power: 9-100V | 3)built-in GPS antenna: 18*18*4 mm |
power IC: SL3036H | 4)built-in battery, Real time tracking |
GSM module: MT6261 | 5)Geo-fence, over speed alarm, |
GPS module: Ublox | 6) platform /APP supported |
Device status indicators
LIGHT | Functions |
Red LED | Connect DC 9-100V power supply and will light continuously. |
The red LED is the power signal, | |
It is always on when the external DC is connected. | |
blue LED | It is he GSM signal indicator. |
It is always on when there is no GSM; | |
It flashes when GSM is normal; | |
It flashes quickly when transmitting data. | |
yellow LED | It is the GPS signal indicator: |
It is always on when there is no positioning; | |
It flashes after positioning. |
Installation for the Car/Motorcycle/E-bike
The GPS tracker must be installed under professional personnel. |
Note: |
1) Please install the device in the hidden place as followings: Under Front windshield; In the front instrument panel; Under back windshield; |
2) Avoid being placed with signal radiators like reverse sensor ; |
3) The device has GSM antenna and GPS antenna inside. Please ensure the receiving side of the device is face up and without metal cover. |
Preparation for the installation
1 Product Check. Open the packing box and check the device‘s model and accessories. If the model is wrong or the accessories not complete, please contact the dealer. |
2 Choose SIM card. Please insert a SIM card to the device. Please take dealer’s advice as reference. |
3 SIM card installation. Discharge the cover of the device and uncover the SIM card holder. Then insert the SIM card and cover SIM card holder. |
4 Put back the front cover and screw it up. |
5 Connect the device to the 9-100Vpower supply.(the red LED constant glow) |
6 Install the device in the hidden place of the car; |
Installation for SIM of device
5.1.1 Product Check | Open the packing box and check the device‘s model and accessories. If the model is wrong or the accessories not complete, please contact the dealer. |
5.1.2 Choose SIM card | Please insert a SIM card to the device. Please take dealer’s advice as reference. |
5.1.3 SIM card installation | Discharge the cover of the device and uncover the SIM card holder. Then insert the SIM card and cover SIM card holder. |
5.1.4 Put back the front cover and screw it up. | |
5.1.5 Connect the device to the 9-100Vpower supply.(the red LED constant glow) | |
5.1.6 Install the device in the hidden place of the car; |
4G GPS Tracking Device for DC9-100V Built-IN Battery 10M Precision Hidden Mini 4G GPS Tracker
Device wiring requirements
1 The device power supply is DC 9-100V. The red line is positive pole while the black line is negative pole.
2 The negative pole of power supply connects with ground or the metals. Please do not connect with other ground lines.
3 When finishing the power supply wire connection, please make the plug of power supply to the device
Q:Haw can i buy it?
A:We accept T/T,Westem Uniton and Paypl.After we recerive your payment..
Q:Can we put into my motorcycle?
A:Yes,of course!it support DC9-100V voltage input for any vehicles.
Q:Can we use your platform?
A:yes,you can use our platform.And it is free to use.
Q:What is the lead time if we place order to get the parcel?
A:It needs 1-10 working days after received your payment
