9-100V ACC Ignition Checking Locator TK003 Model 2600MHz 200MAH 4G GPS Tracker
|
Product Details:
Payment & Shipping Terms:
|
Detailed Product Description
| Waterproof: | IP67 | Frequency: | 4G 800/850/900/1800/2100/2600MHz |
|---|---|---|---|
| GPS Chip: | Ublox | Working Current: | 12mA |
| Working Humidity: | 20%～80%RH | Measurement: | 90*40*15mm |
| Built-in Battery: | 200mAH | Locating Time: | 2s (Open Sky) |
| Protocol: | GT06 | Power IC: | SL3036H |
| High Light: | FCC 4G Car GPS Tracker,LBS Locating Vehicle GPS Tracker,Geo Fence 4G GPS Tracker |
||
9-100V ACC Ignition Checking Locator TK003 Model 2600MHz 200MAH 4G GPS Tracker
Features1:
1: 2G:GSM 850MHz,900MHz,1800MHz,1900MHz
3G WCDMA 2100/1900/900/850MHz
4G:FDD-LTE 800/850/900/1800/2100/2600MHz
2. Cut oil or circuit (relay is optional )
3. Over speed alarm ,moving alarm, Vibration alarm ,power cut off alarm
4. Acc ignition detection
5. built-in battery is 200Mah
6. GSM:850/900/1800/1900 Quad band
7. GPRS: Class12, TCP/IP
8. Working Voltage:9-100V DC
9. Working current:≈22mA (12vDC)
10. Working current:≈12mA (24vDC)
11. GPS locating time:Cold start≈38s(Open sky)
Warm start≈32s Hot start≈2s(Open sky)
12. GPS Precision:10m(2D RM)
13. Working temperature:-20℃～+70℃
14. Working humidity:20%～80%RH
15. Measurement:90(L)×40(W)×15(H)mm

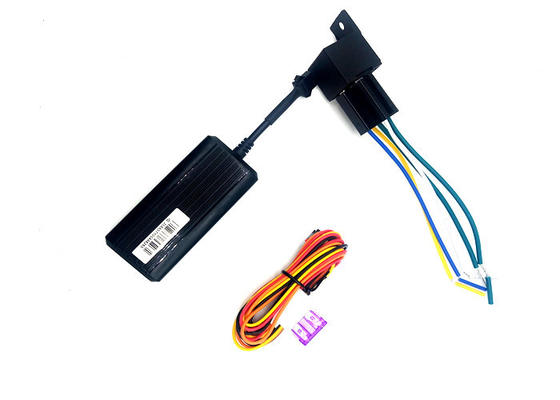

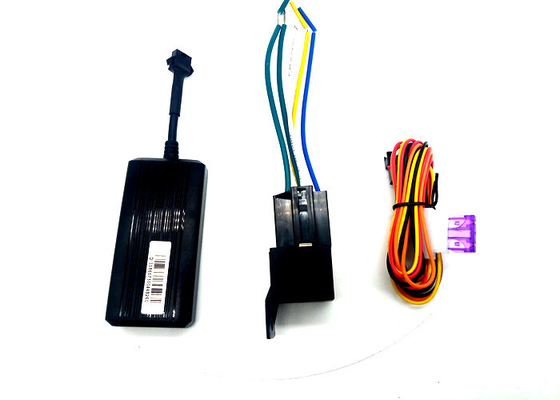

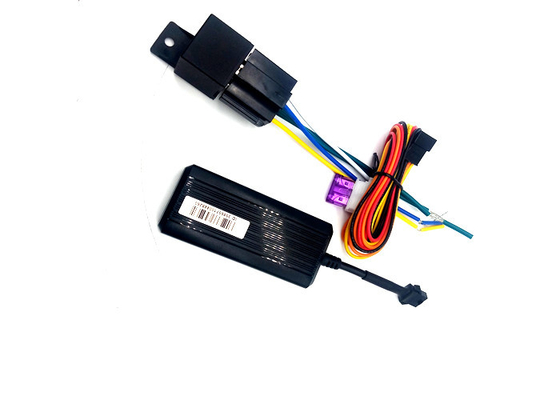

Accsessories:
Red＆black cable for power
Orange cable for ACC/ignition
Yellow cable for Relay
9-100V ACC Ignition Checking Locator TK003 Model 2600MHz 200MAH 4G GPS Tracker
Feature2:
| GSM two-way | 850/900/1800/1900 MHz |
| GPS positioning | GPS sensitivity: -162dBm |
| GPS positioning accuracy: 2 meters (under open conditions) | |
| Speed accuracy: 0.1 m/s | |
| Cold start time: <38 seconds | |
| Warm start time: <32 seconds | |
| Hot start time: <2 seconds | |
| Base station positioning | Support base station positioning, positioning accuracy: 10~200 meters |
| Vandalism | Support anti-counterfeiting base station, anti-detection function |
| Working current | Average current <30mA (12VDC), maximum current <100mA (12VDC) |
| Operating temperature | -20~+65℃ |
| Material | Engineering plastics |
| Weight | 50G |
| Network | 4G LTE/3G/2G |
| Dim. | 90*40*15mm |
| Storage Temp. | -40°C to +85°C |
| Accuracy | 5-20m |
| Operation Temp. | -20°C to +55°C |
| Humidity | 5%--95% non-condensing |
| Working Voltage | 9-80V |
| CPU | MTK6261 |
| RAM | 32MB |
| ROM | 32MB |
| Waterproof | Optional |
Main components:
| GPS | functions: |
| protocol: GT06 | 1)support ACC ignition checking |
| G-sensor : BS250E | 2)support Relay for cutting off power/fuel |
| input power: 9-100V | 3)built-in GPS antenna: 18*18*4 mm |
| power IC: SL3036H | 4)built-in battery, Real time tracking |
| GSM module: MT6261 | 5)Geo-fence, over speed alarm, |
| GPS module: Ublox | 6) platform /APP supported |
9-100V ACC Ignition Checking Locator TK003 Model 2600MHz 200MAH 4G GPS Tracker
Installation for the Car/Motorcycle/E-bike
The GPS tracker must be installed under professional personnel.
Note:
1) Please install the device in the hidden place as followings:
Under Front windshield；
In the front instrument panel；
Under back windshield；
2) Avoid being placed with signal radiators like reverse sensor ；
3) The device has GSM antenna and GPS antenna inside. Please ensure the receiving side of the device is face up and without metal cover.
Note:The metal cover will lessen the receiving of GPS signals
Installation for SIM of device
1 Preparation for the installation
1.1 Product Check. Open the packing box and check the device‘s model and accessories. If the model is wrong or the accessories not complete, please contact the dealer.
1.2 Choose SIM card. Please insert a SIM card to the device. Please take dealer’s advice as reference.
1.3 SIM card installation. Discharge the cover of the device and uncover the SIM card holder. Then insert the SIM card and cover SIM card holder.
1.4 Put back the front cover and screw it up.
1.5 Connect the device to the 9-100Vpower supply.(the red LED constant glow)
1.6 Install the device in the hidden place of the car；
The SIM card must be with GPRS function and enough deposit. If your SIM card need input PIN when power on, please cancel it.
