Mini GPS Tracker 4G FDD-LTE Real Time Tracking Vehicle GSM GPS Tracker
|
Product Details:
Payment & Shipping Terms:
|
Detailed Product Description
| Type: | 4G GPS Tracker | OS: | Andorid/IOS |
|---|---|---|---|
| Screen Type: | NO Screen | Certification: | CE/FCC/ROHS |
| Placement: | Windowshield | Warranty: | 2 Years |
| Battery:: | 200mAH | Application: | Web Platform/APP |
| Function:: | GPS Tracking | Feature: | GPRS/SMS/GPS |
| Use: | Automotiv | Color: | Black |
| High Light: | FCC 4G Car GPS Tracker,LBS Locating Vehicle GPS Tracker,Geo Fence 4G GPS Tracker |
||
Mini GPS Tracker 4G FDD-LTE Real Time Tracking Vehicle GSM GPS Tracker
Produce Description
1.
| GSM | GPRS |
| Geo-sensor | Input power |
| ACC | Ignition checking |
| Built-in battery | Cutt off power/fuel |
| Real time tracking | over speed alarm |
| Relay supported | platform /APP supported |
2.
| Content | Specs. |
| Dim. | 90 mm x40 mm x 15 mm |
| Weight | 50g |
| Network | GSM/GPRS/GPS |
| Band | 850/900/1800/1900 MHz |
| GPS chip | U-B |
| GSM module | MTK6261 |
| GPS accuracy | 10m |
| GPS locating time | Cold start≈38s(Open sky) |
| Warm start≈32s(Open sky) | |
| Hot start≈2s(Open sky) | |
| Work voltage | DC9V-100V |
| Storage Temp. | -40°C to +85°C |
| Humidity | 20%--80% |
GT-06 Sleek 4G Tracker very easy to usded in vehicles, motorcycles, electric cars,and hidden under front windoeshield,in the front instrument panel,under back windowshield.
Mini GPS Tracker 4G FDD-LTE Real Time Tracking Vehicle GSM GPS Tracker
Features
| GSM two-way | 850/900/1800/1900 MHz |
| GPS positioning | GPS sensitivity: -162dBm |
| GPS positioning accuracy: 2 meters (under open conditions) | |
| Speed accuracy: 0.1 m/s | |
| Cold start time: <38 seconds | |
| Warm start time: <32 seconds | |
| Hot start time: <2 seconds | |
| Base station positioning | Support base station positioning, positioning accuracy: 10~200 meters |
| Vandalism | Support anti-counterfeiting base station, anti-detection function |
| Working current | Average current <30mA (12VDC), maximum current <100mA (12VDC) |
| Operating temperature | -20~+65℃ |
| Material | Engineering plastics |
| Weight | 50G |
| Network | 4G LTE/3G/2G |
| Dim. | 90*40*15mm |
| Storage Temp. | -40°C to +85°C |
| Accuracy | 5-20m |
| Operation Temp. | -20°C to +55°C |
| Humidity | 5%--95% non-condensing |
| Working Voltage | 9-80V |
| CPU | MTK6261 |
| RAM | 32MB |
| ROM | 32MB |
| Waterproof | Optional |
Please read the manual carefully before use the GPS Tracker,so that you can install the device correctly and activate it quickly on the internet. The outlook and true color are subject to the actual product.

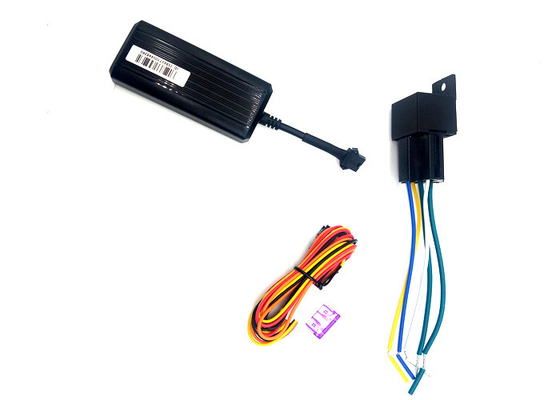

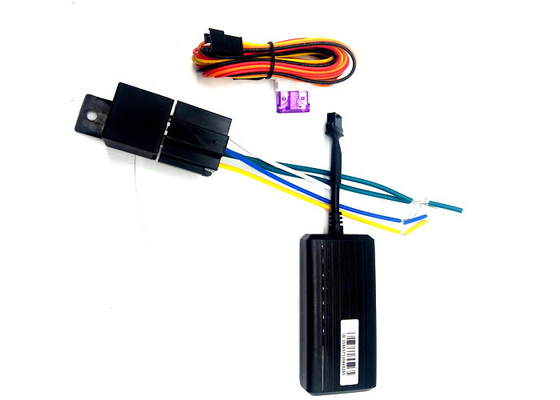

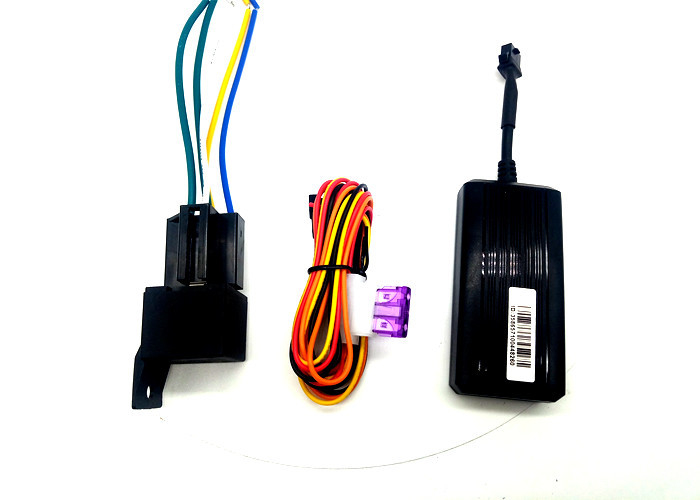

1．Accessories
Red＆black cable for power
Orange cable for ACC/ignition
Yellow cable for Relay
2. Technical parameter:
| GSM: | 850/900/1800/1900 Quad band |
| GPRS: | Class12, TCP/IP |
| Working Voltage | 9-100V DC |
| Working current: | ≈22mA (12vDC) |
| Working current: | ≈12mA (24vDC) |
| GPS locating time: |
Cold start≈38s(Open sky) |
| GPS Precision: | 10m(2D RM) |
| Working temperature: | *-20℃～+70℃ |
| Working humidity: | 20%～80%RH |
| Measurement: | 90(L)×40(W)×15(H)mm |
3.Main components:
| GPS | functions: |
| protocol: GT06 | 1)support ACC ignition checking |
| G-sensor : BS250E | 2)support Relay for cutting off power/fuel |
| input power: 9-100V | 3)built-in GPS antenna: 18*18*4 mm |
| power IC: SL3036H | 4)built-in battery, Real time tracking |
| GSM module: MT6261 | 5)Geo-fence, over speed alarm, |
| GPS module: Ublox | 6) platform /APP supported |
Mini GPS Tracker 4G FDD-LTE Real Time Tracking Vehicle GSM GPS Tracker
4 Device status indicators
4.1 Connect DC 9-100V power supply and the red LED will light continuously.
The red LED is the power signal,
it is always on when the external DC is connected.
4.2 The blue LED is the GSM signal indicator.
It is always on when there is no GSM;
it flashes when GSM is normal;
it flashes quickly when transmitting data.
4.3 The yellow LED is the GPS signal indicator:
it is always on when there is no positioning;
it flashes after positioning.
5.Installation for SIM of device
5.1 Preparation for the installation
5.1.1 Product Check. Open the packing box and check the device‘s model and accessories. If the model is wrong or the accessories not complete, please contact the dealer.
5.1.2 Choose SIM card. Please insert a SIM card to the device. Please take dealer’s advice as reference.
5.1.3 SIM card installation. Discharge the cover of the device and uncover the SIM card holder. Then insert the SIM card and cover SIM card holder.
5.1.4 Put back the front cover and screw it up.
5.1.5 Connect the device to the 9-100Vpower supply.(the red LED constant glow)
5.1.6 Install the device in the hidden place of the car；
The SIM card must be with GPRS function and enough deposit. If your SIM card need input PIN when power on, please cancel it.
5.2 Installation for the Car/Motorcycle/E-bike
The GPS tracker must be installed under professional personnel.
Note:
1) Please install the device in the hidden place as followings:
Under Front windshield；
In the front instrument panel；
Under back windshield；
2) Avoid being placed with signal radiators like reverse sensor ；
3) The device has GSM antenna and GPS antenna inside. Please ensure the receiving side of the device is face up and without metal cover.
Note:The metal cover will lessen the receiving of GPS signals.
6. Device wiring requirements
6.1 The device power supply is DC 9-100V. The red line is positive pole while the black line is negative pole.
6.2 The negative pole of power supply connects with ground or the metals. Please do not connect with other ground lines.
6.3 When finishing the power supply wire connection, please make the plug of power supply to the device
Any issue please contact the local distributors.
