Over speed alarm 4G GPS Tracker Real Time GPS Tracking Device Mini free APP
|
Product Details:
Payment & Shipping Terms:
|
Detailed Product Description
| Function1: | Real Time Tracking | Weight: | 50g |
|---|---|---|---|
| Tracking: | APP&Platform | Protocol: | GT06 |
| Input Power: | 9-100V | Built-in GPS Antenna: | 18*18*4 Mm |
| Position Accuracy: | 10M | Material: | Plastic |
| Feature: | Remote Control | ||
| High Light: | FCC 4G Car GPS Tracker,LBS Locating Vehicle GPS Tracker,Geo Fence 4G GPS Tracker |
||
Over speed alarm 4G GPS Tracker Real Time GPS Tracking Device Mini free APP
Frequently used commands:
| Command | Explain | Reply content |
| IMEI# | IMEI query | IMEI: 116790246811200 |
| IMEI,116790246811200# | Set IMEI | OK |
| FACTORY# | Restore factory settings | OK, The terminal will restart after 30 seconds! |
| RESET# | restart | The terminal will restart after 1 minute! |
| WHERE# | Location query | Current position!Lat:N22.589031,Lon:E113.853567,Course:0,Speed:0,DateTime:2018-07-26 10:25:55 |
| URL# | Google link query | GPS! N4.85094 E7.06102 speed:000.0 T:07/13/19 11:37 http://maps.google.com/maps?q=N4.864553,E6.983681 |
| SERVER# | Server query | server,1,gw.carhere.net,8005,0# |
| server,1,gps-go.com,6006,0# | Set domain name | ok |
| Server,0,121.201.110.106,6006,0# | Set IP | ok |
| GMT# | Time zone query | Currently Timezone(GMT):E,8,0 |
| APN# | APN query | Currently in use APN:peoples.net,0000,0000; |
| APN,xxxx# | Set APN | |
| APN,xxxxt,userAAA,passBBB# | Set apn and apn user,password | Example: apn,cmnet,aaa,000# |
| Change time zone command | A:E/W, E east time zone, W west time zone, default: E B: 0～12; time zone, default value: 8 C: 0/15/30/45, half time zone, default value: 0
|
Technical parameter:
| GSM: | 850/900/1800/1900 Quad band |
| GPRS: | Class12, TCP/IP |
| Working Voltage | 9-100V DC |
| Working current: | ≈22mA (12vDC) |
| Working current: | ≈12mA (24vDC) |
| GPS locating time: | Cold start≈38s(Open sky) Warm start≈32s Hot start≈2s(Open sky) |
| GPS Precision: | 10m(2D RM) |
| Working temperature: | *-20℃～+70℃ |
| Working humidity: | 20%～80%RH |
| Measurement: | 90(L)×40(W)×15(H)mm |

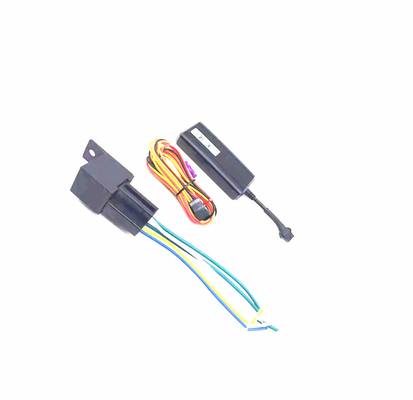

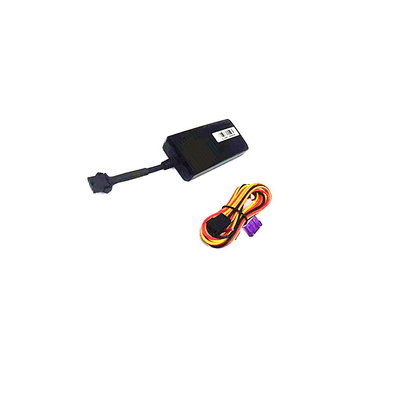

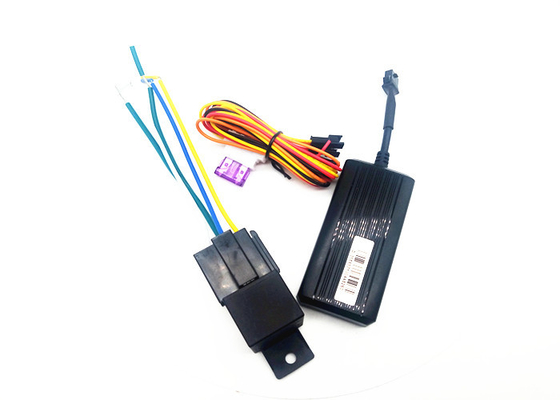

Accessories
Red＆black cable for power
Orange cable for ACC/ignition
Yellow cable for Relay
Over speed alarm 4G GPS Tracker Real Time GPS Tracking Device Mini free APP
1.Main components:
GPS Functions:
protocol: GT06 1 ) support ACC ignition checking ,
G-sensor : BS250E 2 ) support Relay for cutting off power/fuel
input power: 9-100V 3 ) built-in GPS antenna: 18*18*4 mm
power IC: SL3036H 4 ) built-in battery, Real time tracking.
GSM module: MT6261 5 ) Geo-fence, over speed alarm,
GPS module: Ublox 6 ) platform /APP supported
4 Device status indicators
4.1 Connect DC 9-100V power supply and the red LED will light continuously.
The red LED is the power signal,
it is always on when the external DC is connected.
4.2 The blue LED is the GSM signal indicator.
It is always on when there is no GSM;
it flashes when GSM is normal;
it flashes quickly when transmitting data.
4.3 The yellow LED is the GPS signal indicator:
it is always on when there is no positioning;
it flashes after positioning.
5.2 Installation for the Car/Motorcycle/E-bike
The GPS tracker must be installed under professional personnel Note:
| 1) Please install the device in the hidden place as followings: Under Front windshield； In the front instrument panel； Under back windshield； |
| 2) Avoid being placed with signal radiators like reverse sensor ； |
| 3) The device has GSM antenna and GPS antenna inside. Please ensure the receiving side of the device is face up and without metal cover. |
6. Device wiring requirements
6.1 The device power supply is DC 9-100V. The red line is positive pole while the black line is negative pole.
6.2 The negative pole of power supply connects with ground or the metals. Please do not connect with other ground lines.
6.3 When finishing the power supply wire connection, please make the plug of power supply to the device
Any issue please contact the local distributors.
