Sleek 4G GPS Tracker Built-in GPS Antenna Free Cost Platforn APP Easy Operation GSM GPS Tracker
|
Product Details:
Payment & Shipping Terms:
|
Detailed Product Description
| Internet: | 4G | Type: | 4G GPS Tracker |
|---|---|---|---|
| Position Accuracy: | 10M | Warranty: | 12month |
| Working Voltage: | DC9-100V | Protocol: | GT06 |
| GPS Locating Time: | Hot Start≈2s（Open Sky） | G-sensor Module: | BS250E |
| Function: | Over Speed Alarm | Place Of Origin: | China |
| High Light: | FCC 4G Car GPS Tracker,LBS Locating Vehicle GPS Tracker,Geo Fence 4G GPS Tracker |
||
Sleek 4G GPS Tracker Built-in GPS Antenna Free Cost Platforn APP Easy Operation GSM GPS Tracker
Main components:
COMPACT 4G GPS TRACKER - Perfect for tracking vehicles, loved ones (teens, spouses, children, elderly) or assets. With its sleek and compact design, it easily slips into cars, backpacks, strollers, luggage and is highly concealable. With 2G coverage slowly coming to an end, now is the time to upgrade to 4G.
REAL-TIME SMARTPHONE & PC TRACKING – With lighting fast 4G LTE this GPS tracker offers real-time tracking
GEO-FENCING, SMART ALERTS & REPORTS - Create custom geo-fencing zones that alert you anytime the GPS tracker enters or exits a zone. Speed limit, harsh braking, start/stop and proximity alerts allow you to easily track your vehicles and loved ones. Receive text, push and email notifications directly to your smartphone or PC with the Amcrest GPS app and desktop web-access client. Access your data with intelligent reporting directly from your iPhone, Android, Mac, or PC
| GPS | functions: |
| protocol: GT06 | 1)support ACC ignition checking |
| G-sensor : BS250E | 2)support Relay for cutting off power/fuel |
| input power: 9-100V | 3)built-in GPS antenna: 18*18*4 mm |
| power IC: SL3036H | 4)built-in battery, Real time tracking |
| GSM module: MT6261 | 5)Geo-fence, over speed alarm, |
| GPS module: Ublox | 6) platform /APP supported |

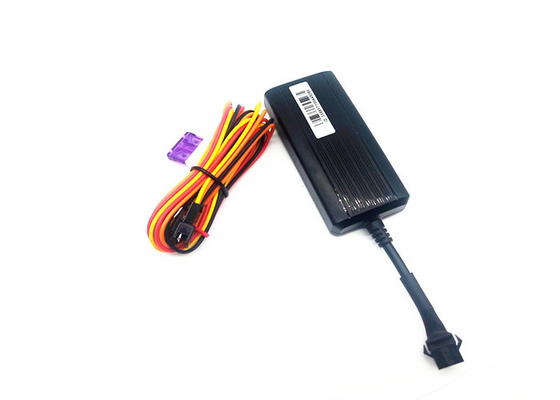

Red＆black cable for power
Orange cable for ACC/ignition

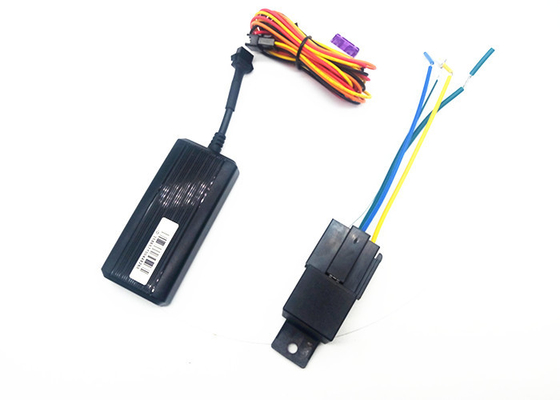

Yellow cable for Relay
Sleek 4G GPS Tracker Built-in GPS Antenna Free Cost Platforn APP Easy Operation GSM GPS Tracker
Technical parameter:
| GSM: | 850/900/1800/1900 Quad band |
| GPRS: | Class12, TCP/IP |
| Working Voltage | 9-100V DC |
| Working current: | ≈22mA (12vDC) |
| Working current: | ≈12mA (24vDC) |
| GPS locating time: | Cold start≈38s(Open sky) Warm start≈32s Hot start≈2s(Open sky) |
| GPS Precision: | 10m(2D RM) |
| Working temperature: | *-20℃～+70℃ |
| Working humidity: | 20%～80%RH |
| Measurement: | 90(L)×40(W)×15(H)mm |
Device status indicators
1. Connect DC 9-100V power supply and the red LED will light continuously.
The red LED is the power signal,
it is always on when the external DC is connected.
2. The blue LED is the GSM signal indicator.
It is always on when there is no GSM;
it flashes when GSM is normal;
it flashes quickly when transmitting data.
3. The yellow LED is the GPS signal indicator:
it is always on when there is no positioning;
it flashes after positioning.
Frequently used commands
| Command | Explain | Reply content |
| IMEI# | IMEI query | IMEI: 116790246811200 |
| IMEI,116790246811200# | Set IMEI | OK |
| FACTORY# | Restore factory settings | OK, The terminal will restart after 30 seconds! |
| RESET# | restart | The terminal will restart after 1 minute! |
| WHERE# | Location query | Current position!Lat:N22.589031,Lon:E113.853567,Course:0,Speed:0,DateTime:2018-07-26 10:25:55 |
| URL# | Google link query |
GPS! N4.85094 E7.06102 speed:000.0 T:07/13/19 11:37 http://maps.google.com/maps?q=N4.864553,E6.983681 |
| SERVER# | Server query | server,1,gw.carhere.net,8005,0# |
Sleek 4G GPS Tracker Built-in GPS Antenna Free Cost Platforn APP Easy Operation GSM GPS Tracker
Installation for SIM of device
1.1 Preparation for the installation
1.1.1 Product Check. Open the packing box and check the device‘s model and accessories. If the model is wrong or the accessories not complete, please contact the dealer.
1.1.2 Choose SIM card. Please insert a SIM card to the device. Please take dealer’s advice as reference.
1.1.3 SIM card installation. Discharge the cover of the device and uncover the SIM card holder. Then insert the SIM card and cover SIM card holder.
1.1.4 Put back the front cover and screw it up.
1.1.5 Connect the device to the 9-100Vpower supply.(the red LED constant glow)
1.1.6 Install the device in the hidden place of the car；
The SIM card must be with GPRS function and enough deposit. If your SIM card need input PIN when power on, please cancel it.
1.2 Installation for the Car/Motorcycle/E-bike
The GPS tracker must be installed under professional personnel.
Note:
1) Please install the device in the hidden place as followings:
Under Front windshield；
In the front instrument panel；
Under back windshield；
2) Avoid being placed with signal radiators like reverse sensor ；
3) The device has GSM antenna and GPS antenna inside. Please ensure the receiving side of the device is face up and without metal cover.3
