GT06 Protocol 4G GPS Tracker With ACC Ignition For E Bike / Car

GT06 Protocol 4G GPS Tracker With ACC Ignition For E Bike / Car
GT06 Protocol 4G GPS Tracker With ACC Ignition For E Bike / Car GT06 Protocol 4G GPS Tracker With ACC Ignition For E Bike / Car GT06 Protocol 4G GPS Tracker With ACC Ignition For E Bike / Car

Large Image :  GT06 Protocol 4G GPS Tracker With ACC Ignition For E Bike / Car Get Best Price

Product Details:

Place of Origin: Shenzhen, China
Brand Name: Caxtrack
Certification: CE/ROHS/SGS/FCC

Payment & Shipping Terms:

Minimum Order Quantity: 1pcs
Price: Negotiable
Packaging Details: Neutral or Customized
Delivery Time: 1-10 working days after received your payment
Payment Terms: T/T or Western Union or PayPal
Supply Ability: 1,000,000pcs per month
Detailed Product Description
Warranty: 12 Month Function: Real Time Tracking
Place Of Origin: China Position Accuracy: 5 Meters
Working Voltage: DC9-100V GPRS: Class 12 TCP IP
GPS Module: MT6261 Protocol: GT06
Color: Black Internet: 4G
High Light:

GT06 Protocol 4G GPS Tracker

,

ACC Ignition 4G GPS Tracker

,

MT6261 E Bike GPS Tracker



GT06 Protocol 4G GPS Tracker Device With ACC Ignition For E-Bike/Car Built-In Battery



Main components: (V1.0)



GPS functions:

protocol: GT06 1)support ACC ignition checking,
G-sensor : BS250E 2)support Relay for cutting off power/fuel
input power: 9-100V 3)built-in GPS antenna: 18*18*4 mm
power IC: SL3036H 4)built-in battery, Real time tracking.
GSM module: MT6261 5)Geo-fence, over speed alarm, GPS module: Ublox 6) platform /APP supported



COMPACT 4G GPS TRACKER - Perfect for tracking vehicles, loved ones (teens, spouses, children, elderly), or assets. With its sleek and compact design, it easily slips into cars, backpacks, strollers, luggage and is highly concealable. With 2G coverage slowly coming to an end, now is the time to upgrade to 4G.



REAL-TIME SMARTPHONE & PC TRACKING – With lighting fast 4G LTE this GPS tracker offers real-time tracking



GPS Tracker Parameters:



Working Voltage: DC9-100V or 12-40V, optional.
GSM Chip: MT6261
GPS Chip: AT6558R
MPS 9486
Working temperature: ‘-20 ℃ to +70 ℃
Storage temperature: ’-40 ℃ to +80 ℃
Working Humidity: 5% to 90%
Power consumption: Average power consumption<1W, power-saving status<2mW
GPS Tracker size: 76mm*27mm*15mm
Packing size: 80mm*15mm*40mm
Interface: Power input, ACC input detection, cut-off fuel circuit.
Communication band: GSM/GPRS 850MHz 900MHz 1800MHz 1900MHz
Weight: 50g

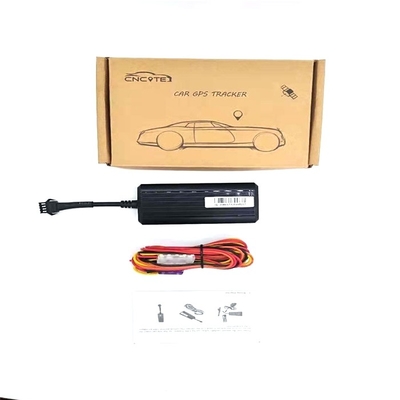

GT06 Protocol 4G GPS Tracker With ACC Ignition For E Bike / Car 0

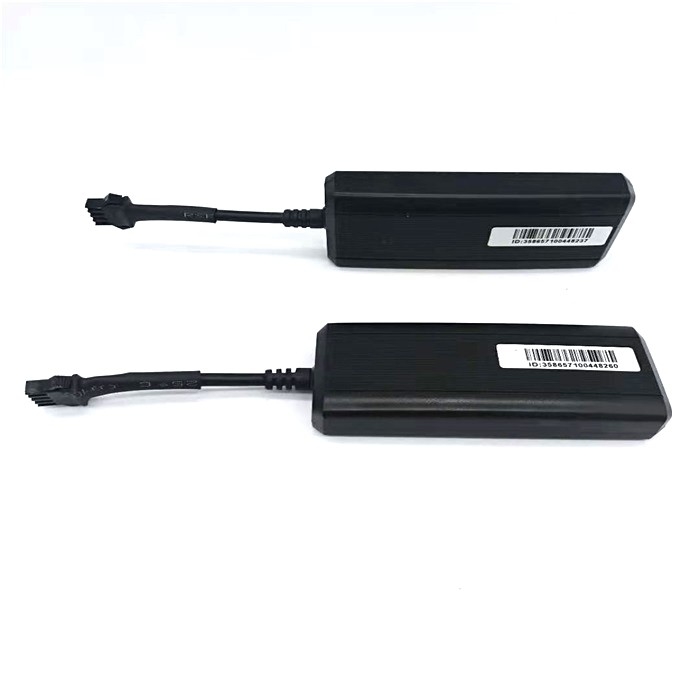

GT06 Protocol 4G GPS Tracker With ACC Ignition For E Bike / Car 1

Device status indicators



4.1 Connect DC 9-100V power supply and the red LED will light continuously.

The red LED is the power signal,

it is always on when the external DC is connected.



4.2 The blue LED is the GSM signal indicator.

It is always on when there is no GSM;

it flashes when GSM is normal;

it flashes quickly when transmitting data.



4.3 The yellow LED is the GPS signal indicator:

it is always on when there is no positioning;

it flashes after positioning.



GT06 Protocol 4G GPS Tracker Device With ACC Ignition For E-Bike/Car Built-In Battery



GPS Tracker Applications And Where you install it.

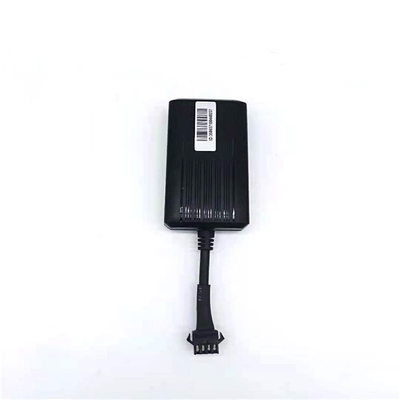

GT06 Protocol 4G GPS Tracker With ACC Ignition For E Bike / Car 2

GT06 Protocol 4G GPS Tracker Device With ACC Ignition For E-Bike/Car Built-In Battery



GPS Tracker Main Functions:



1. Real-Time Positioning:



TK003 GPS Tracker Device will get the real-time position message and upload all status to the server system.



And will display the position on the map. you can click any of the points to know the name. locating time. and acc status. speed



GPS Time, direction, and so on.



2. Vibration alarm:



After setting the command of vibration by SMS. When it moves there will be a vibration alarm message.



3.  Power-off alarm:



If the power supply of GPS Tracker is cut off or GPS Tracker will send the alarm message to the server or bonded Phone number.



4.  Remote Car Lock



If an illegal ignition alarm receives from GPS Tracker, you can remotely cut off the vehicle circuit, so that to avoid being driven away.



5.  SOS Alarm



Users can press the SOS button on GPS Tracker in emergency situations. GPS Tracker will send an alarm message to manage the system and

Call police simultaneously.



Terminal connection:



male switch, Female switch

Red(positive) Black (Negative)



1. red wire connect positive(+),black wire connect negative(-)

2. power input connector to power positive and negative connectors( make sure to connect the right connector)



set server IP or Domain name

1. Set server Domain name: SERVER,1, domain name, port,0#

2. Set Server IP:

SERVER,0,IP, Port,0#

The last bit 0 stands for TCP



4.  When all indicators lighted and flashed normally means GPS Tracker works. now send SMS command to

communication network, you will receive a GPS Tracker status report by SMS.
