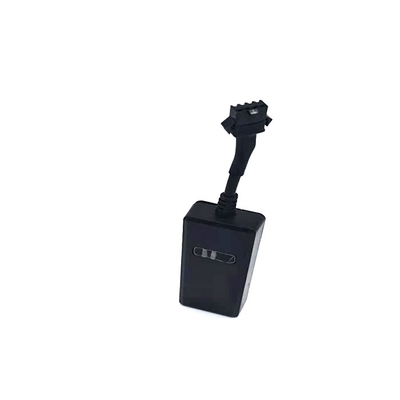

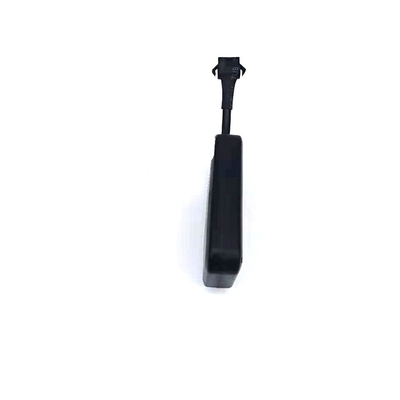

4G Vehicle Car GPS Tracker Mini Real Time GPS Locator Hidden Motorcycle GPS Device

4G Vehicle Car GPS Tracker Mini Real-Time GPS Locator Hidden Motorcycle GPS Device

Specification:

Multi-Mode Positioning: BD GPS LBS

Product accessories

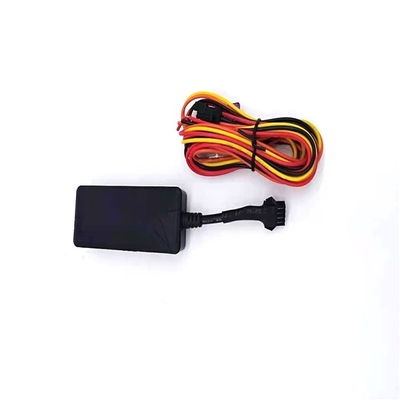

2. 1.1 Power cable

3. 1.2 User Guide

4. 1.3 Microphone (optional)

5. 1.4 SOS button (optional)

6. 1.5 Relay (optional)

7. 2. Product Features

8. 2.1 Support global gsm850/900/1800/1900mhz, wcdma850/900/1900/2100 Mhz network frequency band;

9. 2.2 Wide operating input voltage range: 9-80VDC;

10. 2.3 GPS / LBS real-time positioning, support the computer to track the car, mobile search vehicles, and WeChat search vehicles;

11. 2.4 Support SMS text query location information;

12. 2.5 ACC ignition signal is detected, the vehicle prompted the state;

13. 2.6 Built-in vibration sensor, to achieve intelligent vehicle anti-theft;

14. 2.7 Able to set a specific number for SOS alarm and burglar alarm;

15. 2.8 SOS switch button for the emergency call for help;

Cheapest 4G Mini Size GPS Tracker For Vehicle Real-Time Tracking GSM/GPRS

GPS Tracker Main Functions:

1.Real-time positioning and precise positioning: real-time tracking, automatic display of location information (supporting Android/iOS applications, Web/Wap), real-time free tracking, GPS/A GPS/LBS mode positioning, positioning accuracy up to 5 meters.
2.Electronic fence (geofence): Set up a geo-fence to restrict movement in the area. If the device is out of the area, a message will be sent to the manager's number.
Can control the car, cut the oil, cut the electricity. You can safely protect your car. And GPS is small, easy to hide, portable, built-in 150 mAh battery.
3.Low energy consumption alarm/vibration alarm/Overspeed alarm: intelligent energy management, low energy consumption. Built-in vibration sensor, when your car vibrates, you will receive an SMS alarm. When the vehicle is too large for the set speed, the GPS tracker will send an alarm to the mobile phone. Remember to drive safely.
4.Historical track memory: Display the 30-day historical route. Choose to view LBS location data or GPS location data. Need to buy 850/900/1800/1900MHz 2G GSM SIM card (we recommend using T-mobile SIM card that supports 2G/3G/4G, and a monthly data subscription plan of no less than 30M is required.

GPS Tracker Applications And Where you install it.

Proper Use of The Product

Install→Power on→Settings→Register

Installation: GPS antenna should be facing toward the sky, above the mounting location, must be no material (such as metal, window film) absorption of electromagnetic waves sheltered place.

Boot: Insert the SIM card correctly, connect the wire according to the diagram, then turn on the power.

Setting: Must be done, or can not do other operations, mobile phone owners send text messages to set the owner number and a specific number to the terminal SIM card.

Registration: The registration method is a different subject to dealer platforms, please consult your dealer.

Instructions

Note: The symbol is separated by a comma, the following function parameters instruction comma is in English input state.

1. Real-Time Positioning:

GPS Tracker Device will get the real-time position message and upload all status to the server system.

And will display the position on the map. you can click any of the points to know the name. locating time. and acc status. speed

GPS Time, direction, and so on.

2. Vibration alarm:

After setting the command of vibration by SMS. When it moves there will be a vibration alarm message.

3.  Power-off alarm:

If the power supply of GPS Tracker is cut off or GPS Tracker will send the alarm message to the server or bonded Phone number.

2.1 Installation for the Car/Motorcycle/E-bike

The GPS tracker must be installed under professional personnel.

Note:

1) Please install the device in the hidden place as follows:

Under Front windshield；

In the front instrument panel；

Under back windshield；
