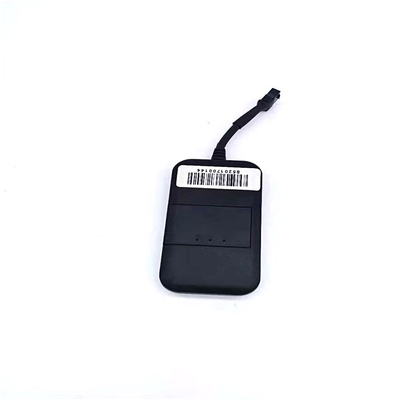

4G LTE Mini Size Free App Vehicle GPS Tracker Door Sensor Cut Off Fuel Concox GT06

4G LTE Mini Size Free App Vehicle GPS Tracker Door Sensor Cut Off Fuel Concox GT06

GPS Tracker Parameters:

Track and protect equipment with location and movement history, equipment utilization reports, preventative maintenance monitoring, misuse or abuse alerts, and more with our range of GPS trackers for equipment.

Multi-Mode Positioning: BD GPS LBS

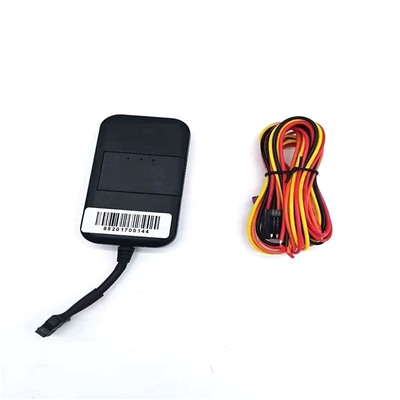

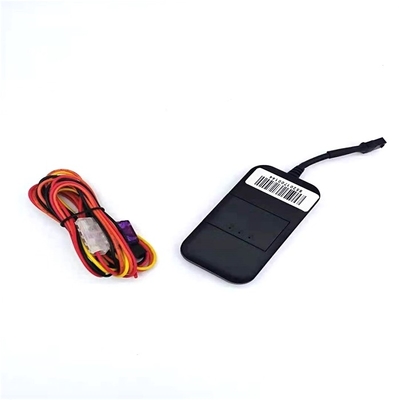

1. 1. Product Accessories

2. 1.1 Power cable

3. 1.2 User Guide

4. 1.3 Microphone (optional)

5. 1.4 SOS button (optional)

6. 1.5 Relay (optional)

7. 2. Product Features

8. 2.1 Support global gsm850/900/1800/1900mhz, wcdma850/900/1900/2100 Mhz network frequency band;

9. 2.2 Wide operating input voltage range: 9-80VDC;

10. 2.3 GPS / LBS real-time positioning, support the computer to track the car, mobile search vehicles, and WeChat search vehicles;

11. 2.4 Support SMS text query location information;

12. 2.5 ACC ignition signal is detected, the vehicle prompted the state;

13. 2.6 Built-in vibration sensor, to achieve intelligent vehicle anti-theft;

14. 2.7 Able to set a specific number for SOS alarm and burglar alarm;

15. 2.8 SOS switch button for the emergency call for help;

16. 2.9 Internal/external microphone and speakers, remote audio monitoring and voice intercom function (optional);

17. 2.10 Built-in backup battery, to achieve illegal cutting wire alarm (optional);

18. 2.11 Built-in OBD2 remote vehicle diagnostics management system (optional);

19. 2.12 Platform supports up to 180 days historical route track;

20. 2.13 Platform supports electronic fence, out of the regional alarm;

21. 2.14 Platform supports deviate planning route alarm;

22. 2.15 Platform supports Overspeed alarm;

23. 2.16 Platform supports serious collision warning (optional);

24. 2.17 Platform Support rollover warning (optional);

25. 2.18 Platform supports for report output;

26. 2.19 Support WEB send arm and disarm command;

27. 2.20 Support RFID auto-sensing arm and disarm (optional); Installation Notes

4G LTE Mini Size Free App Vehicle GPS Tracker Door Sensor Cut Off Fuel Concox GT06

Frequently used commands:

Terminal connection:

male switch, Female switch

Red(positive) Black (Negative)

1. red wire connect positive(+),black wire connect negative(-)

2. power input connector to power positive and negative connectors( make sure connect the right connector)

	Monitor Location You don't need the mobile app for monitoring location. Simply login to this web site in your web browser.
	Multiple Devices You can track an unlimited number of devices in your account. For business tracking, you should use the same account for all your devices. In this way, all your devices are on the same map.
	Cross-Platform Our GPS tracking mobile app supports iOS, Android, and Windows.
	No Advertisement We don't serve ads on this website or in the mobile app. We don't share your data with other companies.
	Grouping Devices You can group your devices in your account. Then you can view the location map by group, or allow other users to view your group of devices.
	Delegate Account By adding the user as your delegating account, you allow this user to view your device location. This feature together with grouping devices enables your sales manager account to view only devices of the sales group, and your maintenance manager account to view only devices of the maintenance group.
	Login token Login token allows your employees to set up the GPS tracking mobile app without exposing your account credential. iOS users can use MDM to push the login token to the devices to simplify your setup.
	Download Report You can download your tracks in CSV (Excel), PDF, KML, GPX format on the map page. The mileage option is available. You can use this feature for your time tracking.
	Embed Map You can embed your live map on your business web site. The option is available to use your company icon on the map and to customize the infobox to include driving directory, contact information, etc.
	Geofence You can use the geofence function to record your employee's entry and exit time of the project site. We offer Account Level Geofence service to enable easy setup and modification of your business wide geofences.

GPS Tracker Main Functions:

Indicators

1. Real-Time Positioning:

GPS Tracker Device will get the real-time position message and upload all status to the server system.

And will display the position on the map. you can click any of the points to know the name. locating time. and acc status. speed

GPS Time, direction, and so on.

2. Vibration alarm:

After setting the command of vibration by SMS. When it moves there will be a vibration alarm message.

3.  Power-off alarm:

If the power supply of GPS Tracker is cut off or GPS Tracker will send the alarm message to the server or bonded Phone number.

4.  Remote Car Lock

If an illegal ignition alarm receives from GPS Tracker, you can remotely cut off the vehicle circuit, so that to avoid being driven away.

2.1 Installation for the Car/Motorcycle/E-bike

The GPS tracker must be installed under professional personnel.

Note:

1) Please install the device in the hidden place as follows:

Under Front windshield；

In the front instrument panel；

Under back windshield；

2) Avoid being placed with signal radiators like reverse sensor ；

3) The device has a GSM antenna and GPS antenna inside. Please ensure the receiving side of the device is face up and without a metal cover.

Note: The metal cover will lessen the receiving of GPS signals.

4G LTE Mini Size Free App Vehicle GPS Tracker Door Sensor Cut Off Fuel Concox GT06

FAQ:

How to use this GPS tracker?

1. Input SIM Card inside the GPS Tracker product.

2. Connecting GPS Tracker with power supply.

3.  Put a GPS Tracker device near a window or some open area waiting for signal ready.

4.  When all indicators lighted and flashed normally means GPS Tracker works. now send SMS command to

communication network, you will receive a GPS Tracker status report by SMS.
