900MHz 1W GT06 Protocol Gps Tracking Device For E Bike



GT06 Protocol Mini Gps Tracking Device For E-Bike/ Vehicle/Motorcycle Support Relay



Main components: (V1.0)



GPS functions:

protocol: GT06 1)support ACC ignition checking ,
G-sensor : BS250E 2)support Relay for cutting off power/fuel
input power: 9-100V 3)built-in GPS antenna: 18*18*4 mm
power IC: SL3036H 4)built-in battery, Real time tracking.
GSM module: MT6261 5)Geo-fence, over speed alarm, GPS module: Ublox 6) platform /APP supported



GPS Tracker Parameters:



Working Voltage:	DC9-100V or 12-40V, optional.
GSM Chip:	MT6261
GPS Chip:	AT6558R
MPS	9486
Working temperature:	‘-20 ℃ to +70 ℃
Storage temperature:	’-40 ℃ to +80 ℃
Working Humidity:	5% to 90%
Power consumption:	Average power consumption<1W, power-saving status<2mW

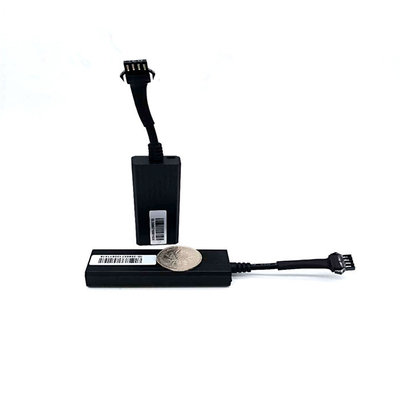

GPS Tracker size:	76mm*27mm*15mm
Packing size:	80mm*125mm*40mm
Interface:	Power input, ACC input detection, cut off fuel circuit.
Communication band:	GSM/GPRS 850MHz 900MHz 1800MHz 1900MHz
Weight:	42g



Multi Mode Positioning: BD GPS LBS











































































Device status indicators



4.1 Connect DC 9-100V power supply and the red LED will light continuously.

The red LED is the power signal,

it is always on when the external DC is connected.



4.2 The blue LED is the GSM signal indicator.

It is always on when there is no GSM;

it flashes when GSM is normal;

it flashes quickly when transmitting data.



4.3 The yellow LED is the GPS signal indicator:

it is always on when there is no positioning;

it flashes after positioning.



GT06 Protocol Mini Gps Tracking Device For E-Bike/ Vehicle/Motorcycle Support Relay



GPS Tracker Applications And Where you install it.

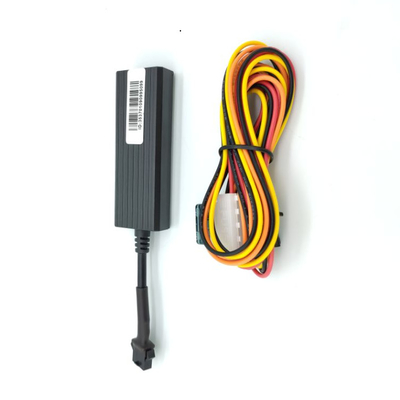

Red & black cable for power

Orange cable for ACC/ignition

Yellow cable for relay



GPS Tracker Main Functions:



1. Real-Time Positioning:



TK003 GPS Tracker Device will get the real-time position message and upload all status to the server system.



And will display the position on the map. you can click any of the points to know the name. locating time. and acc status.speed



GPS Time, direction and so on.



2. Vibration alarm:



After setting the command of vibration by SMS. When it moves there will be a vibration alarm message.



3.  Power-off alarm:



If the power supply of GPS Tracker is cut off or GPS Tracker will send the alarm message to the server or bonded Phone number.



4.  Remote Car Lock



If illegal ignition alarm receives from GPS Tracker, you can remote cut off the vehicle circuit, so that to avoid being driven away.



5.  SOS Alarm



Users can press the SOS button on GPS Tracker under emergency situations. GPS Tracker will send alarm message to manage system and

Call police simultaneously.



Terminal connection:



male switch, Female switch

Red(positive) Black (Negative)



1. red wire connect positive(+),black wire connect negative(-)

2. power input connector to power positive and negative connectors( make sure connect the right connector)



set server IP or Domain name

1. Set server Domain name: SERVER,1,domain name, port,0#

2. Set Server IP:

SERVER,0,IP, Port,0#

The last bit 0 stands for TCP



GT06 Protocol Mini Gps Tracking Device For E-Bike/ Vehicle/Motorcycle Support Relay



Other products

tk004 GPS tracker



100% factory price YTWL-100F Ethiopia standard GPS speed limiter



Kid GPS watch wtih Gps fuction

Pets GPS tracker



FAQ:



How to use this GPS tracker?



1. Input SIM Card inside the GPS Tracker product.



2. Connecting GPS Tracker with power supply.



3.  Put GPS Tracker device near a window or some open area waiting for signal ready.



4.  When all indicators lighted and flashed normally means GPS Tracker works. now send SMS command to

communication network, you will receive a GPS Tracker status report by SMS.
