TK004 Motorcycle GPS Tracker With Mic And SOS Use GT06 Protocol GPS Tracker

Certification
Good quality Motorcycle GPS Tracker for sales
Good quality Motorcycle GPS Tracker for sales
We are very satisfied with your CA-V1 and CA-V1, CA-V6W for professional customers, CA-V6W is a very good product on the motorcycle,thanks!

—— Touya_ra

now we already used your company CA-V6 more than 2000Pcs, thanks for your company best support, we will expend this business in all of the Kenya

—— Nancy Saruni

your device CA-V1 is very good for our customer project, it is so proffesional , we can use in refrigerator car which can test the temperature ,thanks

—— Rajesmay

I'm Online Chat Now

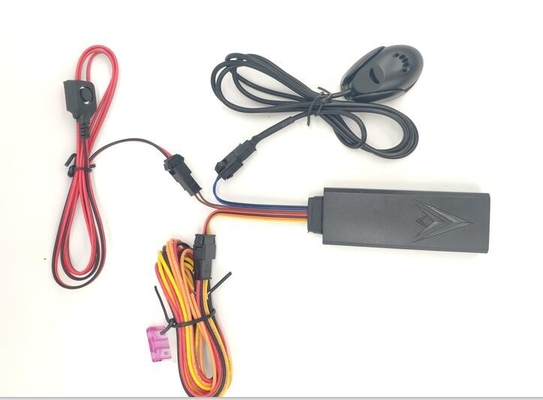

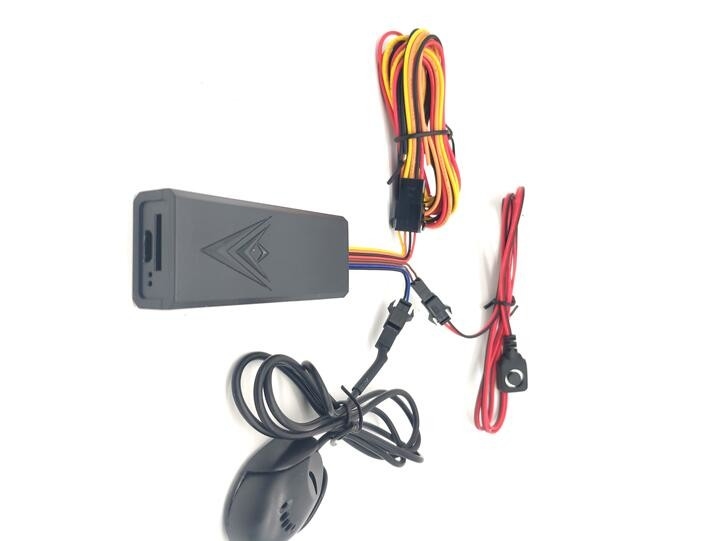

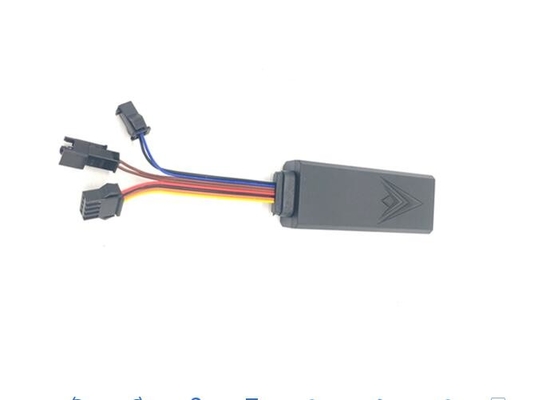

TK004 Motorcycle GPS Tracker With Mic And SOS Use GT06 Protocol GPS Tracker

China TK004 Motorcycle GPS Tracker With Mic And SOS Use GT06 Protocol  GPS Tracker supplier
TK004 Motorcycle GPS Tracker With Mic And SOS Use GT06 Protocol  GPS Tracker supplier TK004 Motorcycle GPS Tracker With Mic And SOS Use GT06 Protocol  GPS Tracker supplier TK004 Motorcycle GPS Tracker With Mic And SOS Use GT06 Protocol  GPS Tracker supplier

Large Image :  TK004 Motorcycle GPS Tracker With Mic And SOS Use GT06 Protocol GPS Tracker

Product Details:

Place of Origin: China
Brand Name: CARTRACKER
Certification: CE
Model Number: TK003

Payment & Shipping Terms:

Minimum Order Quantity: 10
Price: negotiation
Packaging Details: Packed in carton firstly
Delivery Time: 1-10 work days
Payment Terms: Western Union, T/T
Supply Ability: 100000 PCS Per month
Contact Now
Detailed Product Description
Model Name: TK003 Size: 76*26*15mm
Power Input: From DC 9V To DC 100V GPS Chip: MTK6261
MCU Chip: MTK Battery Capacity: 180mAh
Warranty: 2 Years Language: English
Use: Motorcycles Function: GPS Anti-jammer Tracker,Cut-off Engine
Network: GSM/GPRS/GPS Color: Black Or OEM
Gps Accuracy: 5-10m Band: Quad-band
Type: Gps Tracker Feature: Track By SMS/GPRS/Track On Deman/ Track By Time Interval,Low Battery Alarm Voice Alarm Vibration Alarm



TK004 Motorcycle GPS Tracker With Mic And SOS Use GT06 Protocol GPS Tracker





TK003 Product Features And Features





1 Technical parameter :
1 ).GSM:850/900/1800/1900 Quad band
2 ).GPRS: Class12, TCP/IP
3 ).Working Voltage:9-100V DC
4 ).Working current:≈22mA (12vDC)
5 ).Working current:≈12mA (24vDC)
6 ).GPS locating time:Cold start≈38s(Open sky)
Warm start≈32s Hot start≈2s(Open sky)
7 ).GPS Precision:10m(2D RM)
8 ).Working temperature:-20℃~+70℃
9 ).Working humidity:20%~80%RH
10 ).Measurement:76(L)×26(W)×15(H)mm



2   Main components: : (V1.0)


GPS functions:
protocol: GT06                     1 )support ACC ignition checking ,
G-sensor : BS250E              2 )support Relay for cutting off power/fuel
input power: 9-100V            3)built-in GPS antenna: 18*18*4 mm
power IC: SL3036H             4)built-in battery, Real time tracking.
GSM module: MT6261        5)Geo-fence, over speed alarm,
GPS module: Ublox            6) platform /APP supported



3. main functions:

1,GPS/GPRS/LBS/AGPS accurate tracking

2,Real time tracking

3,Geo-fence setting

4,Historical route playback in 365 days

5,ACC detection

6,Remote fuel/power cut off

7,Power off alarm

8,Vibrant/shift alarm

9,Bind area supplement

10,Built in G-sensor anti-static drift

11,Bend compensation

12,Power saving mode

13. Original Vehicle low battery Alarm





TK004 Motorcycle GPS Tracker With Mic And SOS Use GT06 Protocol GPS Tracker



4 Device status indicators
4.1 Connect DC 9-100V power supply and the red LED will light continuously.
The red LED is the power signal,
it is always on when the external DC is connected.
4.2 The blue LED is the GSM signal indicator.
It is always on when there is no GSM;
it flashes when GSM is normal;
it flashes quickly when transmitting data.
4.3 The yellow LED is the GPS signal indicator:
it is always on when there is no positioning;
it flashes after positioning.



TK004 Motorcycle GPS Tracker With Mic And SOS Use GT06 Protocol GPS Tracker



Frequently used commands:



Command Explain Reply content
IMEI# IMEI query IMEI: 116790246811200
IMEI,116790246811200# Set IMEI OK
FACTORY# Restore factory settings OK, The terminal will restart after 30 seconds!
RESET# restart The terminal will restart after 1 minute!
WHERE# Location query

Current position!Lat:N22.589031,Lon:E113.853567,

Course:0,Speed:0,DateTime:2018-07-26 10:25:55

URL# Google link query

GPS!

N4.85094 E7.06102 speed:000.0

T:07/13/19 11:37

http://maps.google.com/maps?q=N4.864553,E6.983681

SERVER# Server query server,1,gw.carhere.net,8005,0#
server,1,gps-go.com,6006,0# Set domain name ok
Server,0,121.201.110.106,6006,0# Set IP ok
GMT# Time zone query Currently Timezone(GMT):E,8,0
APN# APN query Currently in use APN:peoples.net,0000,0000;
APN,xxxx# Set APN







TK004 Motorcycle GPS Tracker With Mic And SOS Use GT06 Protocol GPS Tracker
