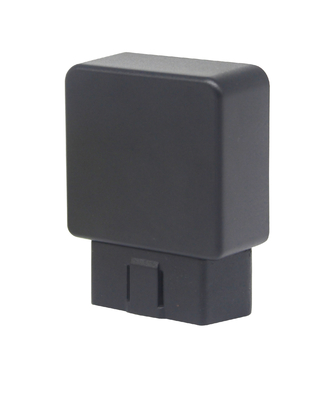

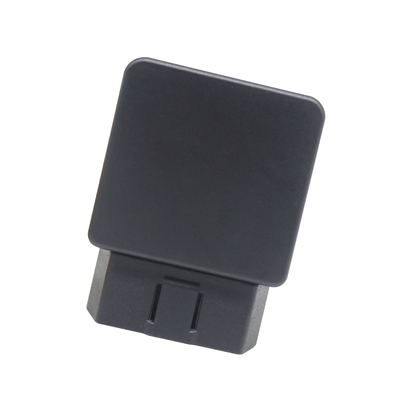

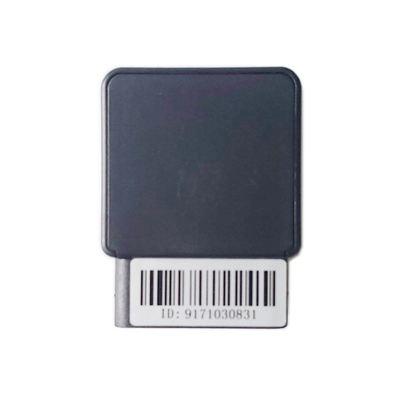

3G 4G plug and track OBD slot tracker free installation OBDII GPS Tracker with Diagnosis function OBD GPS device

It's an all-in-one intelligent terminal for wireless communication, GPS positioning and OBD diagnosis. The terminal is plug and play, and you can install it yourself without a professional. Owners can easily apply location tracking, vehicle security, trip playback, car body check and more. By real-time access to automotive ECU data, operating conditions, combined with original algorithms, you can accurately calculate driving habits (such as fuel consumption, rapid acceleration, rapid deceleration, sharp turns, etc.).

Parameter

QUECTEL EC20 module (different modules for different countries, the following are the frequency bands, different countries with different modules and frequency)

4G: LTE FDD: B1/B3/B5/B8

LTE TDD:B34/B38/B39/B40/B41

3G: WCDMA: B1/B8

TD-SCDMA: B34/B39

2G: GSM: BC0 900/1800MHz

●Wide voltage input range: 9 - 35V;

●Location time: average warm start:≤ 3sec(open sky)

Average cold start: ≤35sec(open sky)

●Device dimensions:59mm × 45mm × 22mm;

●Location accuracy:≤ 10 meters;

●Working Temp: -20℃ - 75℃

Support OBDII Protocol

Application scenarios

• Private car owner
• Fleet management
• Financial loan
• Inventory management

Features

• Ultra-small size can be directly installed in most vehicle
• Easy to install, plug and play, no need for a professional transformation
• GPS, AGPS, LBS hybrid positioning, positioning quickly and accurately
• Industrial-grade stable GPRS communication solution
• Ultra-low standby power consumption, intelligent monitoring of car battery power • Built-in battery, violent demolition alarm

Equipment installation

Look for the location of the vehicle OBD interface. The OBD interface is a 16-pin female connector and the interface is trapezoidal.

Note:

The OBD interface positions of different models are different.

The following figure shows the possible locations of the OBD interface. Some vehicle OBD ports are hidden behind the plastic baffle.

Area A: above the clutch pedal

Area B: Above the accelerator pedal

Area C: Front of the center console downshift lever

Area D: behind the front handlebar of the armrest box

Area E: under the co-pilot glove box

Note: Connect to the vehicle OBD interface, you can directly plugin or use the extension cable connection (installation of the dedicated extension cord and Velcro can be selected at the dealer according to actual needs)

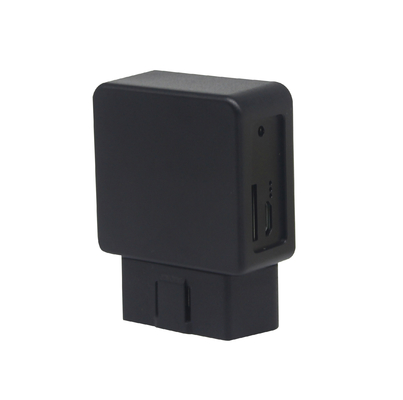

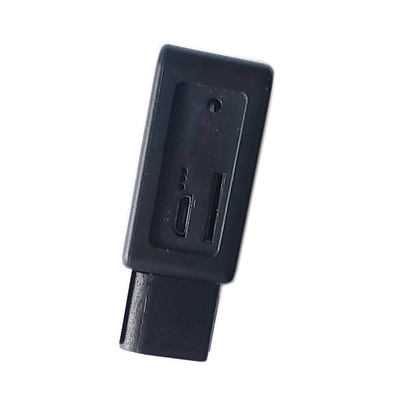

RED LED (OBD Working status)

Yellow LED (GSM signal status)

Blue LED (GPS signal status)
