|Input Voltage:||DC 12V/1A||GPS:||U-7|
|Type:||OBD Slot Tracker||Feature:||Plug And Track|

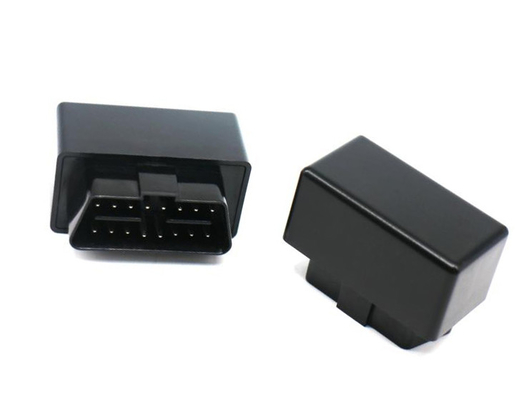

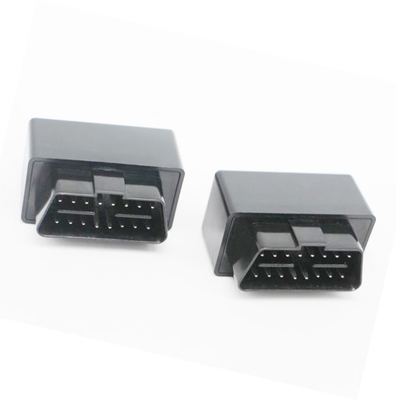

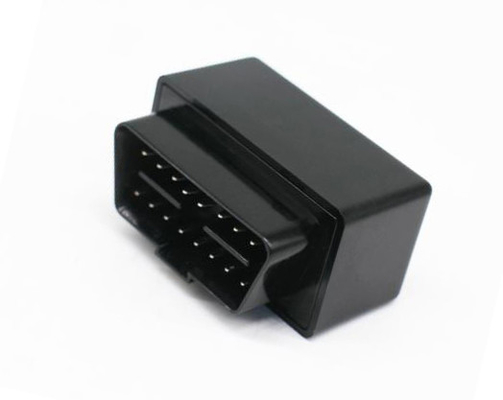

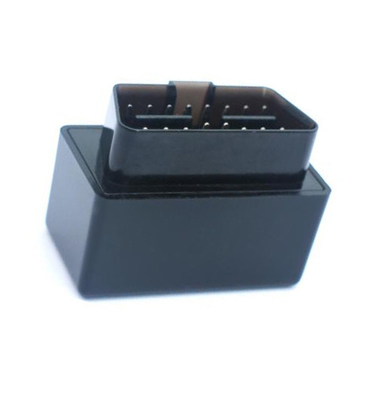

It's an all-in-one intelligent terminal for wireless communication, GPS positioning and OBD diagnosis. The terminal is plug and play, and you can install it yourself without a professional. Owners can easily apply location tracking, vehicle security, trip playback, car body check and more. By real-time access to automotive ECU data, operating conditions, combined with original algorithms, you can accurately calculate driving habits (such as fuel consumption, rapid acceleration, rapid deceleration, sharp turns, etc.).
Look for the location of the vehicle OBD interface. The OBD interface is a 16-pin female connector and the interface is trapezoidal.
The OBD interface positions of different models are different.
The following figure shows the possible locations of the OBD interface. Some vehicle OBD ports are hidden behind the plastic baffle.
Area A: above the clutch pedal
Area B: Above the accelerator pedal
Area C: Front of the center console downshift lever
Area D: behind the front handlebar of the armrest box
Area E: under the co-pilot glove box
Note: Connect to the vehicle OBD interface, you can directly plugin or use the extension cable connection (installation of the dedicated extension cord and Velcro can be selected at the dealer according to actual needs)

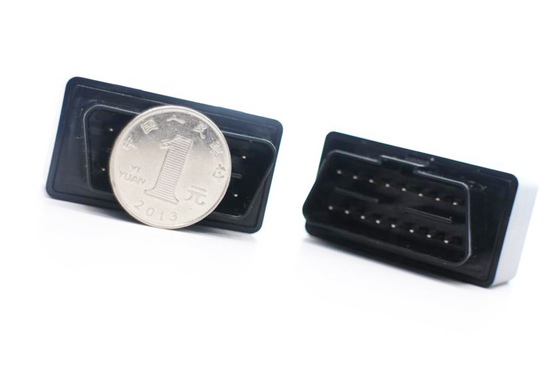

|Size||48mm*25m*23mm (without plug)|
|Working Votage||DC 10V~18V|
|Working Current||35mA(ACC ON)|
|Standby Current||2.5m(ACC OFF)|
|Backup Battery||50mA polymer lithium battery|
|Working Temp range||-25~+75℃|
|Storage Temp range||-40~+85℃
Support OBDII Protocol
