OBDII GPS Tracker with Diagnosis function OBD GPS tracker plug and track OBD slot tracker free installation

China OBDII GPS Tracker with Diagnosis function OBD GPS tracker plug and track OBD slot tracker free installation supplier
OBDII GPS Tracker with Diagnosis function OBD GPS tracker plug and track OBD slot tracker free installation supplier OBDII GPS Tracker with Diagnosis function OBD GPS tracker plug and track OBD slot tracker free installation supplier OBDII GPS Tracker with Diagnosis function OBD GPS tracker plug and track OBD slot tracker free installation supplier OBDII GPS Tracker with Diagnosis function OBD GPS tracker plug and track OBD slot tracker free installation supplier OBDII GPS Tracker with Diagnosis function OBD GPS tracker plug and track OBD slot tracker free installation supplier

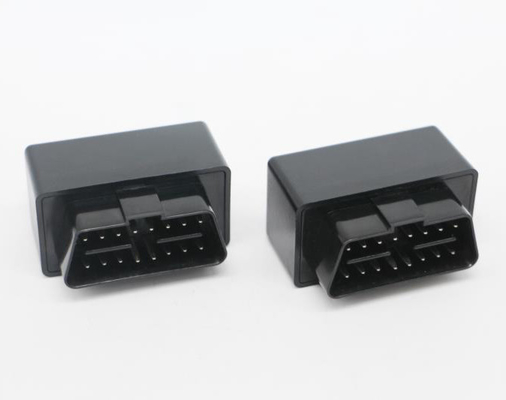

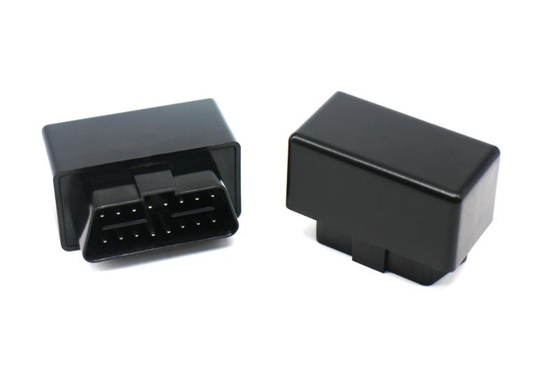

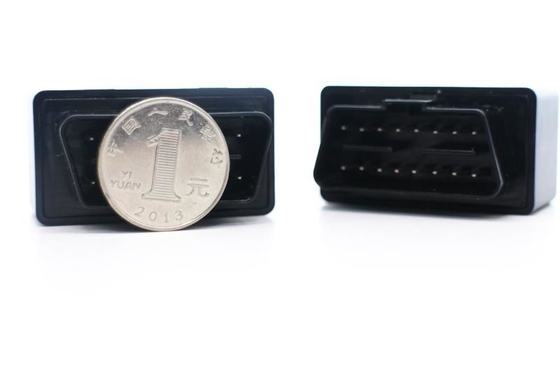

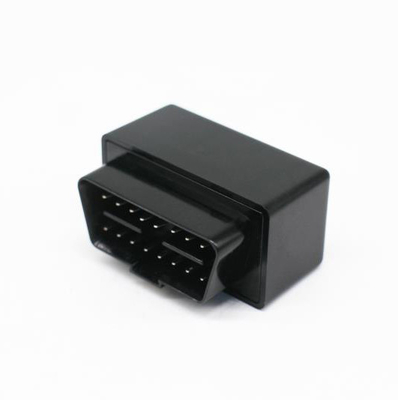

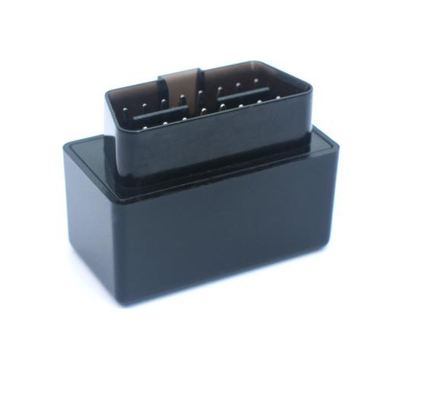

Large Image :  OBDII GPS Tracker with Diagnosis function OBD GPS tracker plug and track OBD slot tracker free installation

Product Details:

Place of Origin: Shenzhen, China
Brand Name: CAX
Certification: CE
Model Number: CA-OBD

Payment & Shipping Terms:

Minimum Order Quantity: 1
Price: Negotiable
Packaging Details: Carton or customized
Delivery Time: 1-10 work days
Payment Terms: Western Union, T/T
Supply Ability: 100000 PCS Per month
Contact Now
Detailed Product Description
Weight: 30g Diagnosis: Support
Network: 2G Warranty: 2 Years,
Geo-fence: Yes Input Voltage: DC 12V/1A
GPS: U-7 Type: OBD Slot Tracker
Color: Black Feature: Plug And Track

It's an all-in-one intelligent terminal for wireless communication, GPS positioning and OBD diagnosis. The terminal is plug and play, and you can install it yourself without a professional. Owners can easily apply location tracking, vehicle security, trip playback, car body check and more. By real-time access to automotive ECU data, operating conditions, combined with original algorithms, you can accurately calculate driving habits (such as fuel consumption, rapid acceleration, rapid deceleration, sharp turns, etc.).




Application scenarios

  • Private car owner
  • Fleet management
  • Financial loan
  • Inventory management

Features

  • Ultra-small size can be directly installed in most vehicle
  • Easy to install, plug and play, no need for a professional transformation
  • GPS, AGPS, LBS hybrid positioning, positioning quickly and accurately
  • Industrial-grade stable GPRS communication solution
  • Ultra-low standby power consumption, intelligent monitoring of car battery power • Built-in battery, violent demolition alarm



Parameter

Size 48mm*25m*23mm (without plug)
Working Votage DC 10V~18V
Working Current 35mA(ACC ON)
Standby Current 2.5m(ACC OFF)
Backup Battery 50mA polymer lithium battery
Positioning method GPS/AGPS/LBS
Positioning accuracy 10m

Communication

Network

GPRS GSM850/900MHz/DCS1800MHz/1900MHz

Working Temp range -25~+75℃
Storage Temp range -40~+85℃







Support OBDII Protocol

1 ISO9141-2 ISO9141
2 KWP2000_5BPS ISO14230

3 KWP2000_FAST
4 CANBUS_11B_500K ISO15765
5 CANBUS_29B_500K

6 CANBUS_11B_250K
7 CANBUS_29B_250K





Equipment installation

Look for the location of the vehicle OBD interface. The OBD interface is a 16-pin female connector and the interface is trapezoidal.

Note:

OBDII GPS Tracker with Diagnosis function OBD GPS tracker plug and track OBD slot tracker free installation

The OBD interface positions of different models are different.

The following figure shows the possible locations of the OBD interface. Some vehicle OBD ports are hidden behind the plastic baffle.

OBDII GPS Tracker with Diagnosis function OBD GPS tracker plug and track OBD slot tracker free installation



Area A: above the clutch pedal

Area B: Above the accelerator pedal

Area C: Front of the center console downshift lever

Area D: behind the front handlebar of the armrest box

Area E: under the co-pilot glove box

Note: Connect to the vehicle OBD interface, you can directly plugin or use the extension cable connection (installation of the dedicated extension cord and Velcro can be selected at the dealer according to actual needs)
